SELECT A DIAGRAM

01 - Cover Sheet

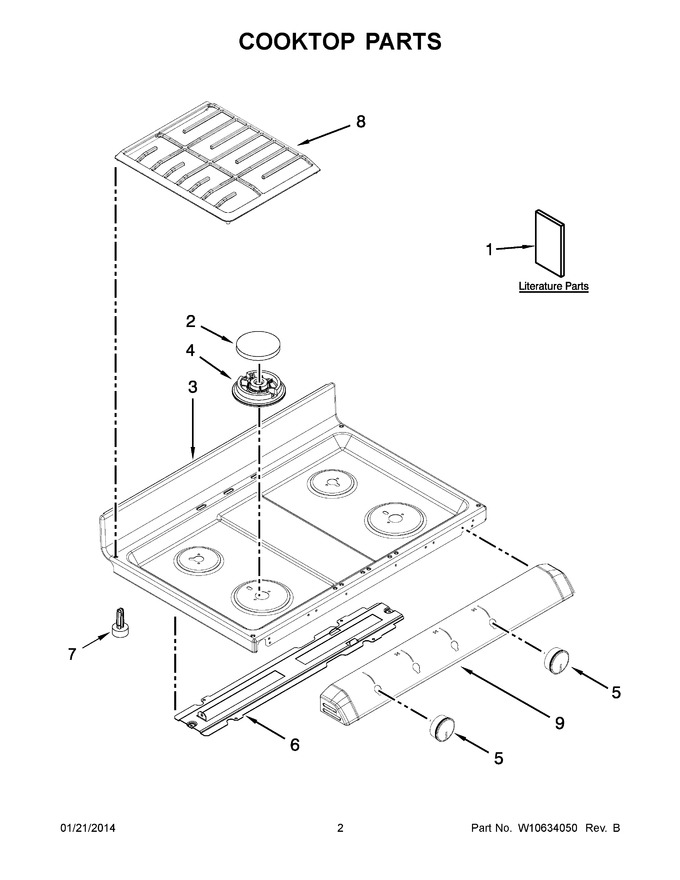

02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Upper Door Parts


07 - Lower Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10575966		Tech Sheet		Appelez-nous	-
1	W10600816		Guide, Use And Care		Appelez-nous	-
1	W10575961		Instructions, Installation		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2	WPW10244448		Set, Burner Cap (wetstone)   (Replaces: W10244448)				$ 231.06
2	WPW10244447		Set, Burner Cap (black)   (Replaces: W10244447)				$ 200.90
3	W10204725		Cooktop (black)		Appelez-nous	-
3	W10336322		Cooktop (white)   (Replaces: W10204726)		Appelez-nous	-
4	WPW10406878		Burner Head, Ultra Rapid (17.5k) (left Front)   (Replaces: W10406878)				$ 107.48
4	WPW10406243		Burner Head, Auxiliary (6k) (left Rear)   (Replaces: W10406243)			Immediately	$ 39.08
4	WPW10406797		Burner Head, Rapid (12k) (right Front/right Rear)   (Replaces: W10406797)				$ 92.91
5	WPW10506367		Knob, Control (stainless)   (Replaces: W10506367)			Immediately	$ 22.80
5	W10506365		Knob, Control (black)		Appelez-nous	-
5	W10506366		Knob, Control (white)		Appelez-nous	-
6	W10518258		Bracket, Cooktop Support		Appelez-nous	-
7	W11189172		Glide, Main Top   (Replaces: 8016P022-60)			Immediately	$ 17.61
8	WPW10338214		Set, Grate (black)   (Replaces: W10338214)				$ 345.92
8	W10338215		Set, Grate (wetstone)		Appelez-nous	-
9	W10554309		Panel, Manifold (black)		Appelez-nous	-
9	W10554308		Panel, Manifold (white)		Appelez-nous	-
9	W10544730		Panel, Manifold (stainless)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
