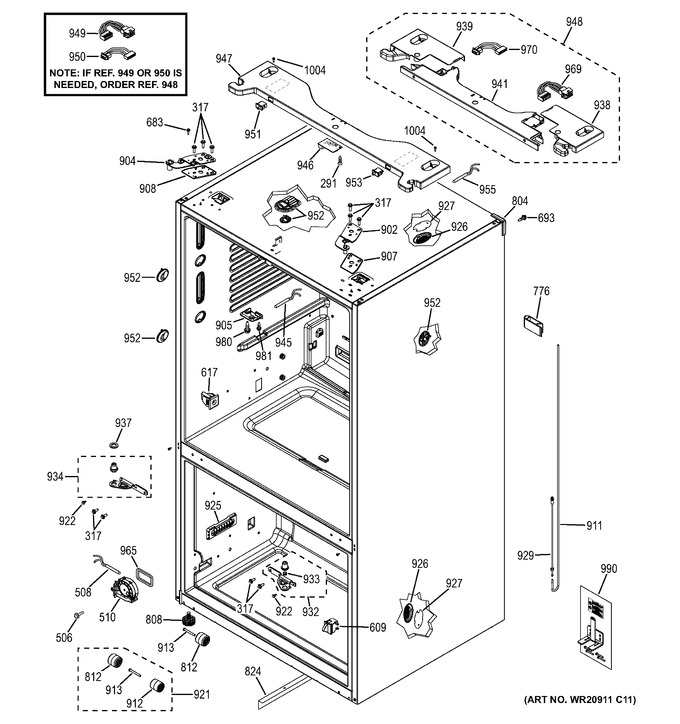

10 - Case Parts


1 - Dispenser Door


2 - Machine Compartment


3 - Freezer Door


4 - Fresh Food Door - Rh


5 - Freezer Section


6 - Freezer Shelves


7 - Ice Maker & Dispenser


8 - Fresh Food Section


9 - Fresh Food Shelves


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
291	WR01X10649		Scr 8-10 Pl Pnp 1/2 S		Appelez-nous	-
317	WR01X11049		Scr 1/4-20 Hxw 7/8 S		Appelez-nous	-
506	WG04A00176		Screw 8-16 Hxw 1/2 Ss   (Replaces: WD02X10067)				$ 3.97
508	WR55X11151		Sensor Temperature		Appelez-nous	-
510	WR60X10342		Fan Motor Im Asm / Senso				$ 138.51
609	WG03F09086		Switch Light   (Replaces: WR23X10143)			Immediately	$ 11.12
617	WR2X8349		Grommet Scr Closed		Appelez-nous	-
683	WR01X10635		Scr 8-32 Ca Ihxw .625 S		Appelez-nous	-
693	WR01X10593		Scr 8-18 Ab Ihxw 3/4 S		Appelez-nous	-
804	WR02X13614		Cap Case Corner		Appelez-nous	-
808	WR01X11046		Screw Leveling Asm		Appelez-nous	-
812	WR02X13694		Wheel Overmold Asm Rear		Appelez-nous	-
824	WR17X13188		Baffle Air Highside		Appelez-nous	-
902	WR13X10974		Hinge Top Pin Asm Rh		Appelez-nous	-
904	WR13X10975		Hinge Top Pin Asm Lh		Appelez-nous	-
905	WR02X13716		Striker Top Mullion		Appelez-nous	-
907	WR02X13640		Pad Top Hinge Rh		Appelez-nous	-
907	WR02X13717		Pad Top Hinge Asm Rh		Appelez-nous	-
908	WR02X13718		Pad Top Hinge Asm Lh		Appelez-nous	-
908	WR02X13641		Pad Top Hinge Lh		Appelez-nous	-
911	WR02X13766		Tube Case Back		Appelez-nous	-
912	WR02X13685		Wheel		Appelez-nous	-
913	WR01X11008		Axle Wheel		Appelez-nous	-
921	WR49X10268		Front/rear Wheel & Axle		Appelez-nous	-
922	WR01X11037		Scr8-32 Tt Pnt 5/8s		Appelez-nous	-
925	WR02X13623		Louver Duct Im Return Fz		Appelez-nous	-
926	WG03F02951		Grille Thermistor   (Replaces: WR02X13729)				$ 6.09
927	WR01X11066		Shunt Sensor		Appelez-nous	-
929	WR02X13774		Tube Lead		Appelez-nous	-
932	WR13X10976		Hinge Center Asm Rh		Appelez-nous	-
933	WR01X11016		Screw Hinge Ctr Adj		Appelez-nous	-
934	WG03L05321		Hinge Center Asm Lh   (Replaces: WR13X10982)				$ 68.68
937	WG03A00275		Washer Hinge Center Lh   (Replaces: WR01X11047)			Immediately	$ 9.53
938	WR17X13213		Cover Hinge Rh Asm Gy		Appelez-nous	-
939	WR17X13214		Cover Hinge Lh Asm Gy		Appelez-nous	-
941	WR17X13212		Top Cover Middle Gy		Appelez-nous	-
945	WR55X11150		Sensor Temperature		Appelez-nous	-
946	WR55X11180		Pcb Asm Radio Sensor		Appelez-nous	-
947	WR17X13102		Hinge Cover Top Chs		Appelez-nous	-
948	WR49X10287		3 Pc Hinge Cover Asm Gy		Appelez-nous	-
951	WR23X10751		Switch Light Ff		Appelez-nous	-
952	WG03L00855		Cover Led Asm, Ff   (Replaces: WR55X11132)			Immediately	$ 76.82
953	WR23X10752		Switch Light Ff		Appelez-nous	-
955	WR55X11153		Sensor Temperature		Appelez-nous	-
965	WR14X10379		Gasket Duct Fan Im		Appelez-nous	-
969	WR23X10776		Harness Door Switch Ac		Appelez-nous	-
970	WR23X10777		Harness Door Case		Appelez-nous	-
980	WR01X11060		Scr 8-18 Ab Hxwp 9/16s		Appelez-nous	-
981	WR01X11065		Scr 8-18 Ab Flp 3/4 S Zn		Appelez-nous	-
990	WR02X13770		Kit Anti Tip Asm		Appelez-nous	-
	WG03F01804		Thermostat Defrost Ff   (Replaces: WG03F01818)			Immediately	$ 33.35
	WR01F01730		Sensor Temp Ff			Immediately	$ 16.29
	WG03F06744		Boot Fan Ff   (Replaces: WG03F03998)			Immediately	$ 31.76
	WG03F04078		Fan Motor Asm Dc Ff Evap				$ 139.84
	WG03F06676		Fan Motor Dc Ff Evap   (Replaces: WG03F04082)			Immediately	$ 127.15
	WG03F06326		Bf Refer Sum Module Rev   (Replaces: WG03F04924)				$ 158.95
	WG03F05740		Ap5 Nidec Ff Fan Conversion Cc				$ 196.47
	WG03L00731		Gasket Ff				$ 118.61
	WG03L00834		Door Disp Asm Ff Lh Ss				$ 1,695.79
	WG03L05202		Overlay Meat Pan Asm				$ 24.55
	WG03L05339		Port Gasket				$ 54.09
