SELECT A DIAGRAM
1 - Doors
2 - Freezer Section
3 - Freezer Shelves
4 - Fresh Food Section
5 - Fresh Food Shelves
6 - Case Parts

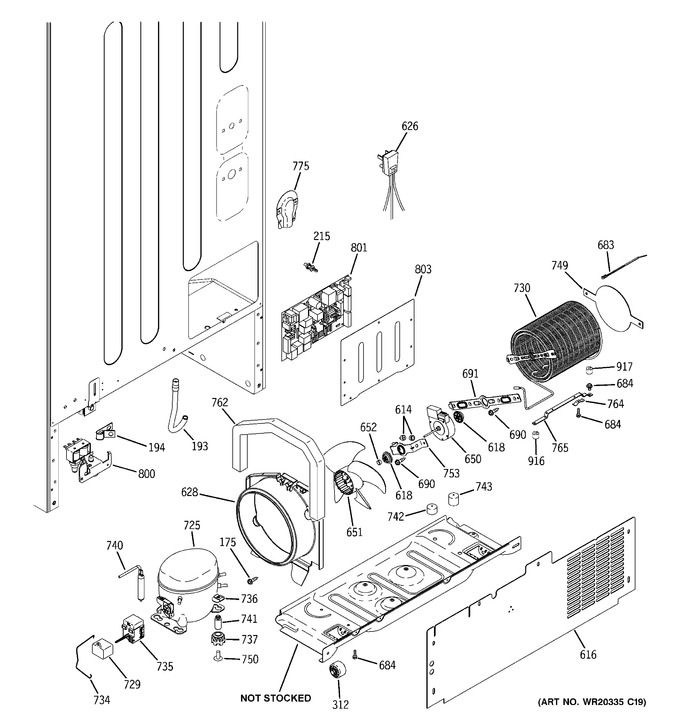

7 - Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 175 | WR01X10035 | Scr 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 194 | WR01X10684 | Clamp Cable |
|
- | |||||
| 215 | WR02X10663 | Stand Off |
|
- | |||||
| 312 | WG03L06838 | Wheel Mobility Rear (Replaces: WR02X10695) |
|
$ 19.06 | |||||
| 614 | WR01A00163 | Bumper Lid (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 616 | WR82X10115 | Access Cover |
|
- | |||||
| 618 | WR01A00315 | Grommet Cond Fan (Replaces: WR02X10520) |
|
$ 4.17 | |||||
| 626 | WR23X108 | Power Cord |
|
- | |||||
| 628 | WR01L04391 | Shroud Condenser (Replaces: WR17X12668) |
|
$ 26.20 | |||||
| 650 | WR60X10216 | Motor Dc Cond Fan |
|
- | |||||
| 652 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.97 | |||||
| 683 | WR02X11027 | Wire Tie |
|
- | |||||
| 684 | WR01X10602 | Scr 8-32 Ab Ihws 3/8 S |
|
- | |||||
| 684 | WR01X10252 | Scr 10-32 Tt Hxw 5/16 S |
|
- | |||||
| 690 | WR1X1466 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 691 | WR02X10593 | Bracket Cond Fan (rear) |
|
- | |||||
| 725 | WR87X10098 | Comp. Repl. Kit R134a |
|
- | |||||
| 729 | WR01F02043 | Capacitor (Replaces: WR62X79) |
|
Immediately | $ 17.17 | ||||
| 730 | WR84X10104 | Condenser & Brkt Asm |
|
- | |||||
| 734 | WR02X11999 | Clip Retainer Mei |
|
- | |||||
| 735 | WR01L03291 | Overload Ptcr Combo (Replaces: WR09X10105) |
|
$ 22.43 | |||||
| 736 | WR2X8203 | Clip Compressor Mount |
|
- | |||||
| 737 | WR01F00846 | Grommet (Replaces: WR02X10099) |
|
$ 7.15 | |||||
| 742 | WR02X10587 | Support Condenser |
|
- | |||||
| 743 | WR02X10588 | Support Condenser |
|
- | |||||
| 750 | WR1X1786 | Screw 10-32 Tr 1/2 |
|
- | |||||
| 764 | WR2X9000 | Clip, Cond Mnt |
|
- | |||||
| 765 | WR17X12576 | Bracket Condenser Bar |
|
- | |||||
| 800 | WR57X10086 | Valve And Tube Asm |
|
- | |||||
| 801 | WR01F00247 | Board Asm Main Control (Replaces: WR55X11022) |
|
Immediately | $ 259.97 | ||||
| 803 | WR02X12027 | Cover Main Board Asm |
|
- | |||||
| 916 | WR02X13569 | Grommet |
|
- | |||||
| 917 | WR02X13573 | Grommet |
|
- | |||||
| WR01A00389 | Mullion Articulation Asm |
|
$ 187.56 | ||||||
| WR01L02129 | Gasket French |
|
$ 104.94 |
