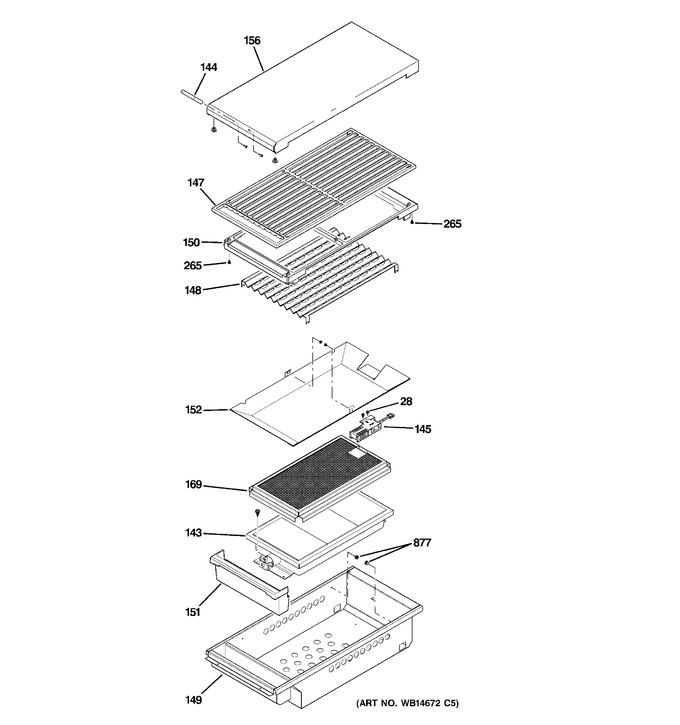

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
28	WB1K50		Screw Mtg Igniter		Appelez-nous	-
143	WB28K10505		Burner Ir		Appelez-nous	-
144	WB15K10088		Handle Cover		Appelez-nous	-
145	WS01F01204		Igniter Glowbar Grill   (Replaces: WB13K10030)			Immediately	$ 132.75
148	WB36K10919		Baffle Grill		Appelez-nous	-
149	WB49K10041		Grill Body Weld		Appelez-nous	-
152	WB34K10131		Reflector Asm		Appelez-nous	-
156	WB07K10432		Cover		Appelez-nous	-
169	WB31K10226		Frame Mesh Asm		Appelez-nous	-
	WS01F02632		Probe Thermistor			Immediately	$ 93.58
	WS01L01956		Relay Board Asm Rt			Immediately	$ 610.79
	WG02L07014		Grate   (Replaces: WS01L05128)			Immediately	$ 215.21
