SELECT A DIAGRAM

10 - Door Lock


11 - Large Convection Fan


1 - Gas & Burner Parts


2 - Small Convection Fan


3 - Grill & Griddle Assembly


4 - Control Panel


5 - Cooktop


6 - Body Parts


7 - Oven Cavity Parts


8 - Large Door Assembly


9 - Small Door Assembly

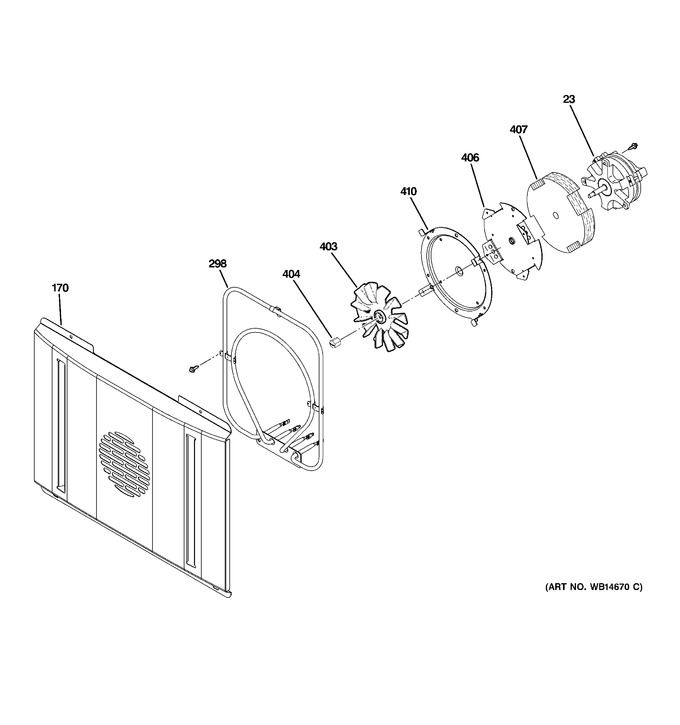

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
23	WG02F02831		Motor Psc Conv   (Replaces: WB26T10037)				$ 152.39
170	WB02K10199		Cover Fan 27"		Appelez-nous	-
298	WB44T10058		Element Convect		Appelez-nous	-
403	WG02F00731		Hub Blade Asm   (Replaces: WB02T10289)			Immediately	$ 32.88
404	WS01A01105		Nut   (Replaces: WB02T10017)			Immediately	$ 8.55
406	WB02T10293		Bracket Convx Mtr Mtg		Appelez-nous	-
407	WB35K10128		Insulation		Appelez-nous	-
410	WB02T10310		Plate Convection		Appelez-nous	-
	WS01F02145		Shield Broil Asm, Monogram				$ 132.99
	WS01F01582		Switch Sail Asm, Monogram				$ 133.77
	WS01F01298		Encoder Asm, Monogram			Immediately	$ 519.02
	WS01L03251		Bar Handle 27", Monogram				$ 110.03
	WG02F04934		Module Spark 4+0				$ 138.14
	WS01F02431		Oven Sensor   (Replaces: WG02F04474)			Immediately	$ 27.18
	WG02F00848		Lamp Halogen, Monogram			Immediately	$ 18.59
	WG02F00431		Electrode Top			Immediately	$ 64.11
	WG02F04945		Burner Ir, Monogram				$ 667.87
	WS01L01957		Relay Board Asm				$ 217.09
	WS01L01956		Relay Board Asm Rt			Immediately	$ 549.71
	WS01L00352		Latch Ovn, Monogram			Immediately	$ 152.60
	WS01F03814		Blower Tangential 45mm			Immediately	$ 293.90
	WS01F03813		Blower Tangential 45mm				$ 449.74
	WS01F02455		Board Power Universal,monogram				$ 291.35
	WS01F02147		Shield Broil Asm,monogram			Immediately	$ 235.77
	WS01F02108		Carrier Orfice Asm Lp, Monogrm				$ 119.34
