SELECT A DIAGRAM

10 - Door Lock


11 - Large Convection Fan


1 - Gas & Burner Parts


2 - Small Convection Fan


3 - Griddle Assembly


4 - Control Panel


5 - Cooktop


6 - Body Parts


7 - Oven Cavity Parts


8 - Large Door Assembly


9 - Small Door Assembly

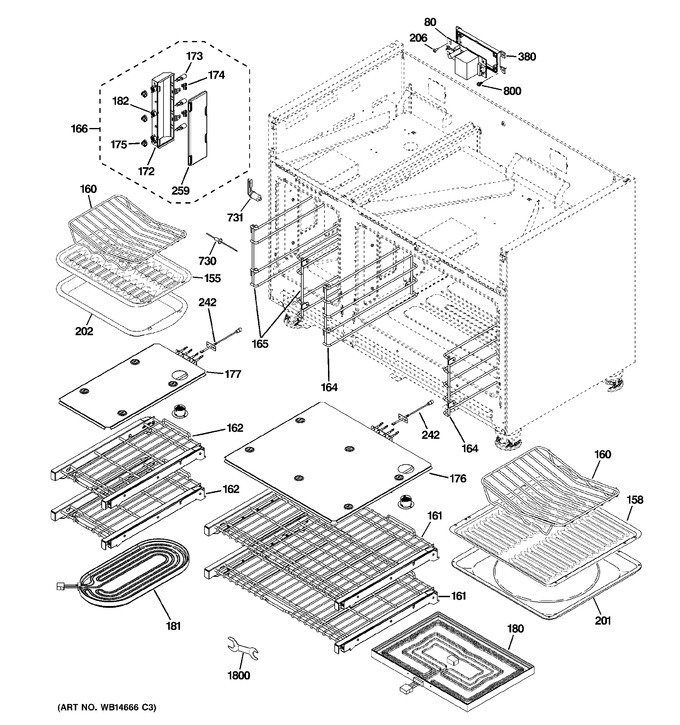

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
80	WS01F02616		Led Power Supply   (Replaces: WB25K10013)			Immediately	$ 147.83
155	WB49K10020		Grid Pan Broil		Appelez-nous	-
158	WB49K10017		Rack Broiler Pan		Appelez-nous	-
160	WB48K10020		Rack Convection Roast		Appelez-nous	-
166	WB08K10011		Lamp Halogen Asm		Appelez-nous	-
172	WB02T10298		Reflector Light		Appelez-nous	-
173	WG02F00848		Lamp Halogen 20w   (Replaces: WB25T10064)			Immediately	$ 20.65
174	WB02T10297		Clip Retainer Glass		Appelez-nous	-
175	WB02T10300		Cover Base		Appelez-nous	-
176	WS01F02147		Shield Broil Asm   (Replaces: WB44K10024)			Immediately	$ 261.97
177	WS01F02145		Shield Broil Asm   (Replaces: WB44K10023)				$ 132.99
180	WS01F01183		Element Hidden Bake   (Replaces: WB44K10026)				$ 650.45
181	WB44K10025		Element Hidden Bake		Appelez-nous	-
182	WB02T10299		Base Ceramic G6.35 450c		Appelez-nous	-
201	WB49K10018		Pan Broiler		Appelez-nous	-
202	WB48K10021		Pan Broil		Appelez-nous	-
206	WB1K5		Bottom Oven Screw		Appelez-nous	-
242	WS01F02431		Sensor Asm   (Replaces: WB21T10007)			Immediately	$ 30.20
259	WG02L02869		Crystal Lamp   (Replaces: WB25T10063)				$ 78.41
380	WB02K10296		Bracket Power Supply		Appelez-nous	-
730	WS01F02632		Probe Thermistor   (Replaces: WB20K10030)			Immediately	$ 93.58
731	WS01F02316		Probe Receptacle   (Replaces: WB20K10032)				$ 135.32
800	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
1800	WS01A00252		Wrench   (Replaces: WB02K10265)				$ 14.92
	WS01F02145		Shield Broil Asm, Monogram				$ 132.99
	WS01F02147		Shield Broil Asm Large ,monogram			Immediately	$ 261.97
	WS01F03813		Blower Tangential, Monogram				$ 499.71
	WS01F03814		Blowertangential 45mm,monogram			Immediately	$ 326.55
	WS01L00224		Hinge Door Rt, Monogram				$ 158.95
	WS01L00235		Hinge Door Left, Monogram				$ 158.95
	WS01L03276		Handle Cover,monogram				$ 23.69
	WS01L00352		Latch Ovn, Monogram			Immediately	$ 169.56
	WS01L00935		Cover				$ 92.55
	WG02F00772		Injet Burner 18k				$ 57.91
	WS01L01956		Relay Board Asm Rt			Immediately	$ 610.79
	WG02F11443		Burner Head Asm 18k, Monogram   (Replaces: WG02F00134)			Immediately	$ 185.68
	WG02F02831		Motor Psc Conv, Monogram				$ 169.32
	WG02L00984		Base Burner 18k-simmer				$ 141.55
	WS01F01298		Encoder Asm, Monogram			Immediately	$ 576.69
	WS01F01582		Switch Sail Asm, Monogram				$ 148.63
	WS01F02022		Control Display Module				$ 213.79
	WS01F02053		Module Spark 6+0				$ 83.43

    View Diagram in Separate Window       Print Part List
