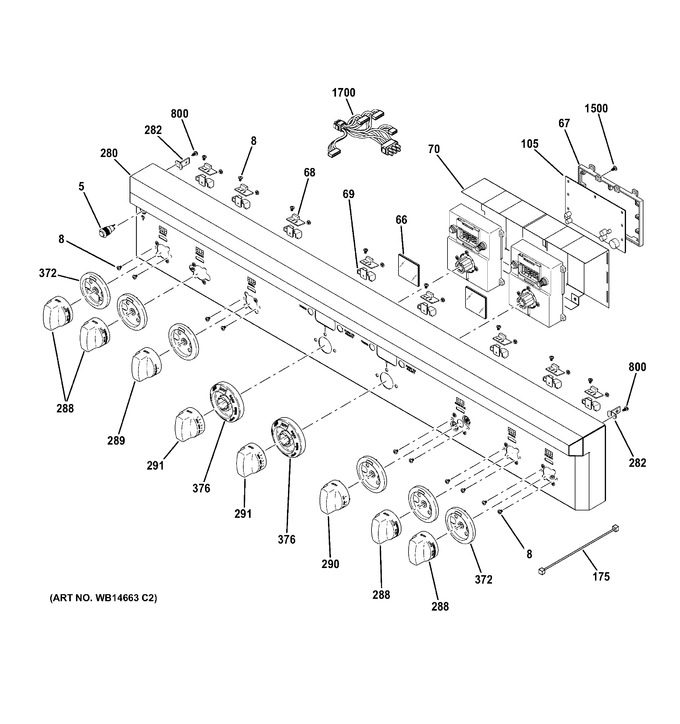

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WS01F01623		Switch Led   (Replaces: WB21K10139)				$ 84.52
8	WS01A01212		Screw 8-32   (Replaces: WB01K10002)				$ 88.13
66	WB57K10134		Glass Display		Appelez-nous	-
67	WB02K10213		Bracket Control		Appelez-nous	-
68	WB25K10014		Led Board		Appelez-nous	-
69	WB02K10214		Bracket Led		Appelez-nous	-
70	WB24K10081		Encoder Asm		Appelez-nous	-
105	WB27K10304		Control Display Module		Appelez-nous	-
175	WB02T10300		Cover Base		Appelez-nous	-
280	WB36K10981		Control Panel & Rail Asm		Appelez-nous	-
282	WB02K10211		Bracket Control Panel		Appelez-nous	-
288	WB03K10359		Knob Asm		Appelez-nous	-
289	WB03K10257		Knob Asm Grill		Appelez-nous	-
290	WB03K10258		Knob Asm Griddle		Appelez-nous	-
291	WS01L06126		Knob Asm Oven Tmst   (Replaces: WB03K10259)				$ 87.93
372	WB07K10299		Bezel Knob		Appelez-nous	-
376	WB03K10307		Bezel Oven Asm		Appelez-nous	-
800	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
1700	WB24K10064		Harness Serial Dual		Appelez-nous	-
	WS01F07251		Allume-gaz   (Replaces: WS01F01193)			Immediately	$ 222.39
	WG02F04945		Bruleur				$ 742.08
	WS01L03759		Frame Grate Asm   (Replaces: WG02F04645)				$ 288.39
