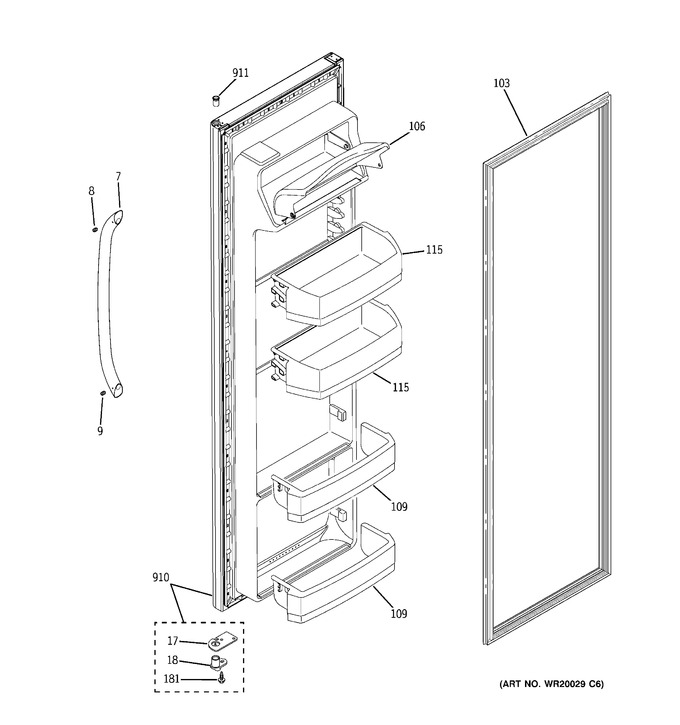

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WR12X11058		Tubular Handle Asm		Appelez-nous	-
8	WR01X11056		Set Screw		Appelez-nous	-
9	WR01X11039		Fastener Handle		Appelez-nous	-
17	WR02X11465		Plate Door Stop Ff		Appelez-nous	-
18	WG03L01095		Cam & Thimble Ff   (Replaces: WR02X11479)				$ 6.09
103	WR24X10297		Gasket Door Sxs		Appelez-nous	-
106	WR01L14045		Door Dairy   (Replaces: WR22X10012)				$ 22.93
109	WR71X11000		Shelf Module Fixed Ff		Appelez-nous	-
115	WR71X10959		Shelf Module Ff		Appelez-nous	-
181	WR01X10655		Scr 10-32 F Hxw 3/4 S		Appelez-nous	-
910	WR78X12805		Door Asm Foam Ff22bb		Appelez-nous	-
911	WR01X10201		Thimble Top Closed		Appelez-nous	-
