SELECT A DIAGRAM

1 - Control Panel & Coin Box Assembly


2 - Front Panel & Door


3 - Upper Cabinet


4 - Lower Cabinet

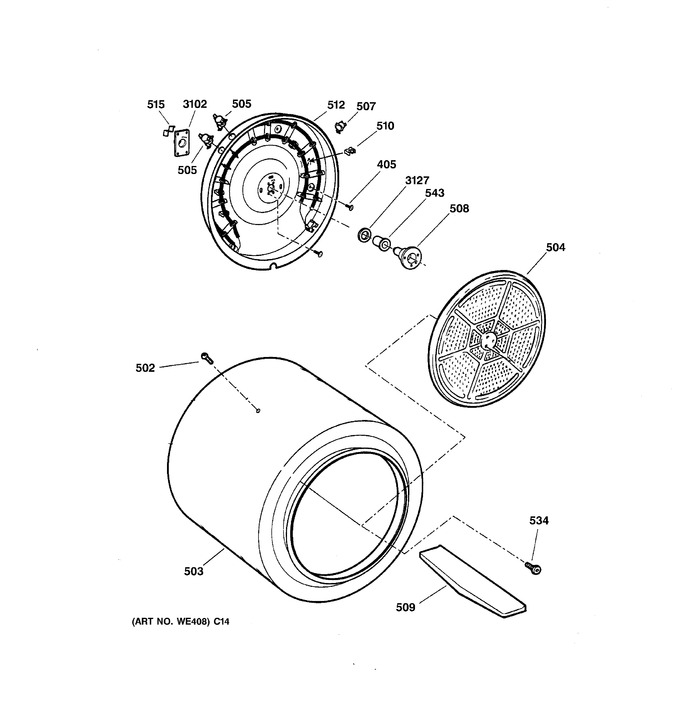

5 - Drum


6 - Blower & Drive Assembly


7 - Timer Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
502	WW02A00031		Screw #10   (Replaces: WE2M174)			Immediately	$ 3.57
503	WE21M63		Drum Asm		Appelez-nous	-
504	WE14M57		Deflector Heat		Appelez-nous	-
505	WE4M450		Thermostat Inlet		Appelez-nous	-
507	WG04F02270		T'stat Hi-limit   (Replaces: WE4M137)			Immediately	$ 17.14
508	WE25M40		Shaft & Bracket Asm   (Replaces: WE3X39)			Immediately	$ 157.05
508	WE1M826		Spacer Drum Shaft		Appelez-nous	-
515	WE1M1015		Ground Strap Asm		Appelez-nous	-
534	WW01A00456		Screw #10   (Replaces: WE2M163)			Immediately	$ 3.57
3102	WG04A00067		Bearing Retainer   (Replaces: WE1M300)				$ 7.33
3127	WG04F00001		O-ring   (Replaces: WE1M461)				$ 26.08

    View Diagram in Separate Window       Print Part List
