SELECT A DIAGRAM

1 - Backsplash, Blower & Drive Assembly

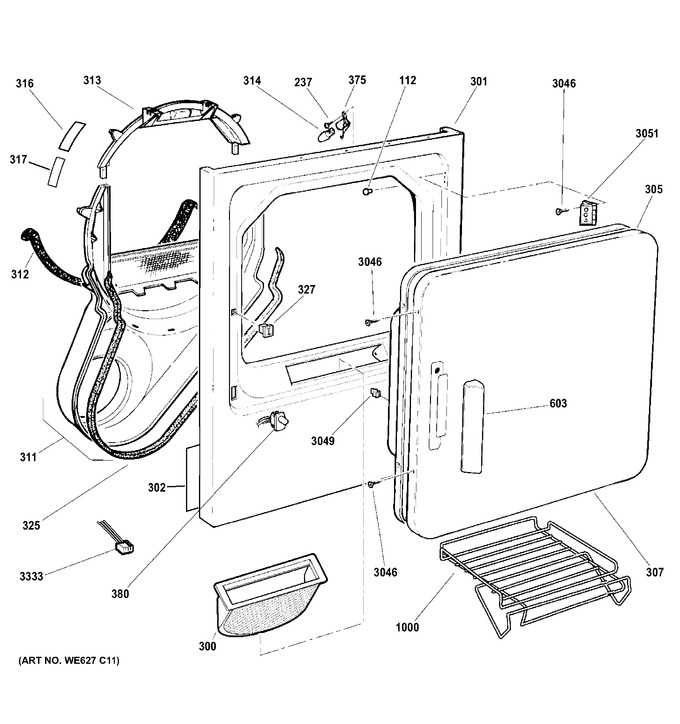

2 - Front Panel & Door


3 - Water System


4 - Cabinet & Front Panel


5 - Shields & Water Parts


6 - Drum


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
112	WR01A00517		Beauty Button-wht   (Replaces: WR2X8693)				$ 4.37
237	WE2M154		Screw		Appelez-nous	-
300	WG04F00416		Filter   (Replaces: WE18M53)			Immediately	$ 40.73
302	WE20M528		Front Panel		Appelez-nous	-
302	WE1M869		Ft Heat Deflection Plate		Appelez-nous	-
305	WE10M171		Inner Door Asm. W		Appelez-nous	-
307	WW01L01133		Door Panel (white)   (Replaces: WE10M102)				$ 149.43
311	WE14M174		Air Duct Asm		Appelez-nous	-
312	WE9M30		Felt		Appelez-nous	-
313	WW02L00517		Top Bearing   (Replaces: WE3M26)			Immediately	$ 87.83
314	WW03F00458		Lamp   (Replaces: WE4M305)			Immediately	$ 13.37
316	WG01F01524		Slide Green   (Replaces: WE1M1067)			Immediately	$ 34.20
317	WE1M504		Slide White			Immediately	$ 40.66
325	WE1M825		Gasket (seal) 39 Inch		Appelez-nous	-
327	WE1M536		Latch		Appelez-nous	-
375	WE5M48		Socket Asm		Appelez-nous	-
380	WE4M415		Door Switch		Appelez-nous	-
603	WE1M1026		Handle Door		Appelez-nous	-
1000	WE1M396		Rack Drying		Appelez-nous	-
3046	WW02A00097		Screw #8   (Replaces: WE2M196)				$ 3.57
3049	WW02A00004		Strike Door   (Replaces: WE1X1192)			Immediately	$ 3.57
3051	WW02L00028		Hinge   (Replaces: WE1M505)			Immediately	$ 8.93
3333	WE5M39		Harness Sensor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
