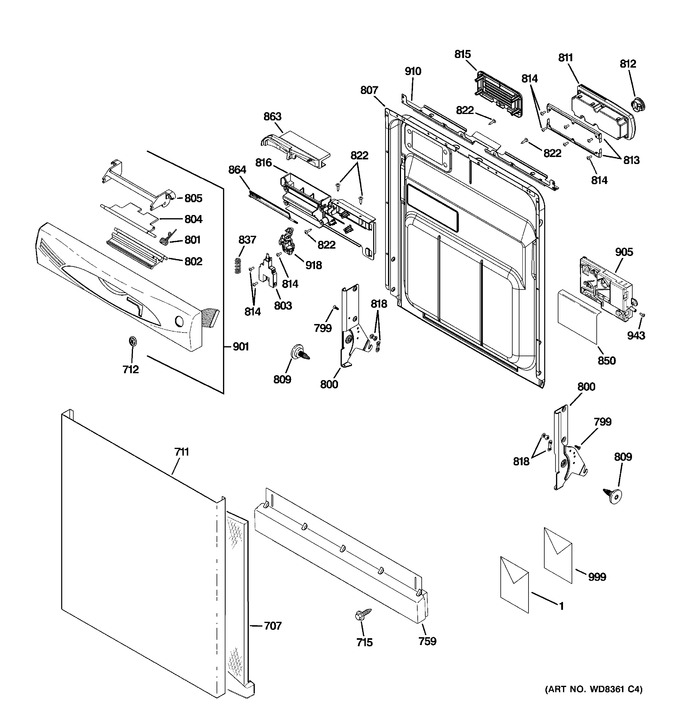

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WD02X10208		Scr 10-32 Tt Hxw 7/16 S		Appelez-nous	-
1	31-30280		Pm Instruction Install		Appelez-nous	-
1	31-30284		Pm Install Instructions		Appelez-nous	-
1	31-30638		Pm Sheet Mini Manual		Appelez-nous	-
1	31-31517		Pm Install Instructions		Appelez-nous	-
1	49-55078		Pm Manual Use & Care		Appelez-nous	-
1	WD00X939		Nut Grater		Appelez-nous	-
1	WD01X10295		Strip Hardness Tester		Appelez-nous	-
707	WD01X10407		Block Foam Door		Appelez-nous	-
711	WD31X10109		Door Outer Flat Ss		Appelez-nous	-
712	WD34X11692		Badge		Appelez-nous	-
715	WH02X10126		Scr 8-18 B 1hw 1/2 Sn		Appelez-nous	-
759	WG04L03152		Toekick Asm   (Replaces: WD27X10278)				$ 88.26
799	WD02X10201		Scr 10-24 Tap Rnp 1/2		Appelez-nous	-
800	WD14X10049		Arm Hinge Rh		Appelez-nous	-
800	WG04L01512		Arm Hinge Lh Asm   (Replaces: WD14X10046)				$ 217.35
800	WD14X10047		Arm Hinge Rh Asm		Appelez-nous	-
800	WD14X10048		Arm Hinge Lh		Appelez-nous	-
801	WG03A00047		Spring Recess Door   (Replaces: WR02X10585)			Immediately	$ 3.97
802	WD13X10054		Handle Latch		Appelez-nous	-
803	WD21X10169		Switch Interlock Asm		Appelez-nous	-
804	WG04F00006		Actuator Handle   (Replaces: WD13X10045)			Immediately	$ 85.41
805	WG04L00456		Retainer Handle   (Replaces: WD13X10009)				$ 77.35
807	WG04L01617		Door Inner & Gasket   (Replaces: WD31X10042)				$ 223.83
809	WG04A01243		Scr 10-32gx Flt25 .615 S   (Replaces: WD02X10084)				$ 3.97
811	WG04F00692		Module Rinse And Cap Asm   (Replaces: WD12X10163)			Immediately	$ 171.12
812	WG04L00093		Cap Rinse Asm   (Replaces: WD12X10122)				$ 39.70
813	WG04A00035		Bracket Detergent Disp   (Replaces: WD01X10207)				$ 6.35
814	DR01X10001		Scr 8-10 Pl Trp 1/2 S		Appelez-nous	-
815	WG04L01582		Cover Vent   (Replaces: WD12X10127)				$ 30.18
816	WD12X10348		Vent Bracket Asm		Appelez-nous	-
818	WG04L01539		Bearing Hinge Arm   (Replaces: WD12X10313)				$ 10.54
822	WG04A00158		Scr 8-18 Ab Tr 7/8s   (Replaces: WD02X10106)				$ 3.97
837	WG04A01303		Spring Plunger   (Replaces: WD03X10026)				$ 19.06
863	WD12X10306		Air Diverter Asm		Appelez-nous	-
864	WD12X10044		Flapper Vent		Appelez-nous	-
901	WD34X11694		Escutcheon Asm		Appelez-nous	-
905	WG04F04752		Module Control Asm   (Replaces: WD21X10440)				$ 240.51
910	WD34X11864		Brace Escutcheon		Appelez-nous	-
910	WD34X11639		Brace Escutcheon W/gaskt		Appelez-nous	-
918	WG04F01276		Vent Driver Asm   (Replaces: WD21X10172)				$ 69.95
943	WD02X10200		Screw		Appelez-nous	-
943	WD02X10218		Scr 8-16x1/2 Stn Stl		Appelez-nous	-
