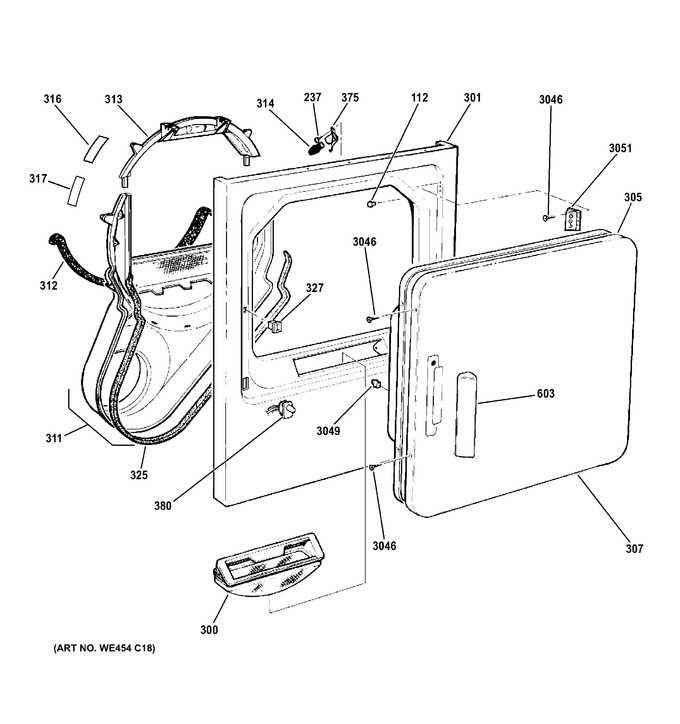

1 - Backsplash, Blower & Drive Assembly


2 - Front Panel & Door


3 - Cabinet & Top Panel


4 - Drum


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
112	WR01A00517		Beauty Button-wht   (Replaces: WR2X8693)				$ 4.37
237	WE2M154		Screw		Appelez-nous	-
300	WG04F00416		Filter   (Replaces: WE18M53)			Immediately	$ 40.73
301	WE20M528		Front Panel		Appelez-nous	-
305	WE10M173		Inner Door Asm. ( 5.8 )		Appelez-nous	-
307	WW01L01133		Door Panel (white)   (Replaces: WE10M102)				$ 149.43
311	WW02F00592		Air Duct Assy   (Replaces: WE14M92)			Immediately	$ 175.43
312	WE9M30		Felt		Appelez-nous	-
313	WW02L00517		Top Bearing   (Replaces: WE3M26)			Immediately	$ 87.83
314	WW03F00458		Bulb   (Replaces: WE4M305)			Immediately	$ 13.37
316	WG01F01524		Bearing Slide   (Replaces: WE1M1067)			Immediately	$ 34.20
317	WE1M504		Bearing-slide "white"			Immediately	$ 40.66
325	WW02L00040		Gasket (seal)   (Replaces: WE00M169)			Immediately	$ 3.93
327	WE1M536		Latch		Appelez-nous	-
375	WE5M48		Socket Asm		Appelez-nous	-
380	WE4M415		Door Switch		Appelez-nous	-
603	WE1M1026		Handle Door		Appelez-nous	-
3046	WW02A00097		Screw #8   (Replaces: WE2M196)				$ 3.57
3049	WW02A00004		Strike Door   (Replaces: WE1X1192)			Immediately	$ 3.57
3051	WW02L00028		Hinge   (Replaces: WE1M505)			Immediately	$ 8.93

    View Diagram in Separate Window       Print Part List
