1 - Backsplash & Coin Box Assembly

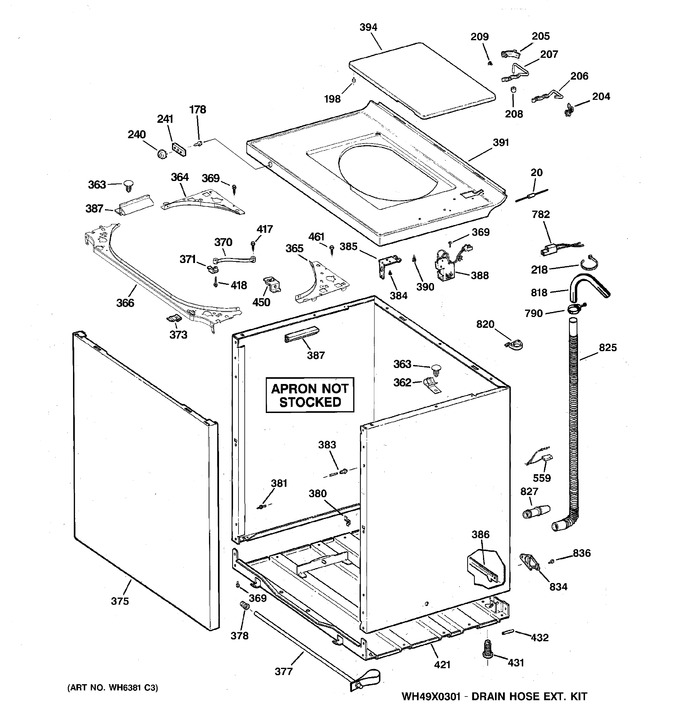

2 - Cabinet, Cover & Front Panel


3 - Tub, Basket & Agitator


4 - Suspension, Pump & Drive Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
178	WB1X1158		Screw		Appelez-nous	-
204	WG04F03612		Bushing Hinge (single)   (Replaces: WH1X2741)				$ 3.64
205	WH01X10025		Bushing Hinge-front Open		Appelez-nous	-
206	WH1X2783		Wireform Hinge		Appelez-nous	-
207	WG04A01363		Wireform Hinge   (Replaces: WH01X10033)				$ 15.72
208	WH1X2742		Bumper Hinge		Appelez-nous	-
209	WH2X1211		Screw		Appelez-nous	-
218	WG04A01362		Wire Tie   (Replaces: WH01X10217)				$ 5.72
240	WH1X2266		Button Plug		Appelez-nous	-
241	WH1X2268		Retainer Button		Appelez-nous	-
362	WH02X10263		Christmas Tree Wire Clip		Appelez-nous	-
363	WH02X10258		Plug Pinetree		Appelez-nous	-
364	WH16X10101		Bracket Apron Left		Appelez-nous	-
365	WH16X10102		Bracket Apron Right		Appelez-nous	-
366	WG04A02898		Bracket Apron Front   (Replaces: WH16X10117)				$ 434.27
369	WW01A00097		Scr 8-18 Ab Ihw 7/16 Sn   (Replaces: WH2X1217)				$ 3.57
370	WH01X10046		Strap Damping		Appelez-nous	-
371	WG04F02343		Retainer Strap   (Replaces: WH1X2726)			Immediately	$ 11.44
373	WG04A00398		Clip Locking   (Replaces: WH02X10279)				$ 5.72
375	WH46X10110		Panel & Brace Asm Wh/exp		Appelez-nous	-
377	WG04L01526		Shipping Bar Asm   (Replaces: WH46X344)				$ 22.75
378	WH1X2745		Button Plug		Appelez-nous	-
380	WH2X1207		Clip Ground		Appelez-nous	-
381	WH2X1190		Stud Grounding		Appelez-nous	-
383	WH2X1189		Pin Alignment		Appelez-nous	-
384	WH01X10109		Scr 8-15 A 3/4 Sp Hxw		Appelez-nous	-
384	WH01X10423		Scr 6-20 B Trt 3/8 S		Appelez-nous	-
385	WH01X10422		Cover Clip		Appelez-nous	-
386	WG04L01525		Bar Self Leveling   (Replaces: WH46X10094)				$ 49.56
386	WH46X10095		Bar Self Leveling		Appelez-nous	-
387	WH41X10161		Conduit		Appelez-nous	-
388	WH12X1051		Lid Switch Asm		Appelez-nous	-
390	WH1X2724		Isolator		Appelez-nous	-
391	WH44X1218		Cover Asm Finished Wh		Appelez-nous	-
394	WH44X10014		Lid Asm Finished		Appelez-nous	-
417	WH2X694		Scr 10-12 A Hx 1/2 S		Appelez-nous	-
418	WH02X10282		Scr 8-18 B Ihw 1 S		Appelez-nous	-
421	WG04L02803		Base Asm   (Replaces: WH46X10148)				$ 229.52
431	WG04L00346		Leg Leveling   (Replaces: WH2X1187)				$ 5.72
432	WG04A00392		Pin Roll   (Replaces: WH2X1188)				$ 5.72
450	WH16X528		Nut Bracket Asm		Appelez-nous	-
450	WH16X10104		Nut & Bracket Asm		Appelez-nous	-
461	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
559	WH12X538		Housing Terminal		Appelez-nous	-
782	WB17X5060		Terminal Blk Asm (2 Pin)		Appelez-nous	-
790	WH1X2036		Clamp Hose		Appelez-nous	-
818	WH41X35		Nozzle Drain		Appelez-nous	-
820	WW01A00014		Clip Anti-siphon   (Replaces: WH1X2725)				$ 3.57
825	WG04F04663		Hose & Spring Asm   (Replaces: WH41X10053)				$ 224.72
827	WH41X10020		Adapter Drain Hose		Appelez-nous	-
834	WG04A00640		Retainer Hose   (Replaces: WH16X513)			Immediately	$ 4.07
836	WG04A01370		Scr 8-18 Ab Ihwp 7/8 S   (Replaces: WH02X10002)				$ 3.57
