SELECT A DIAGRAM
1 - Doors

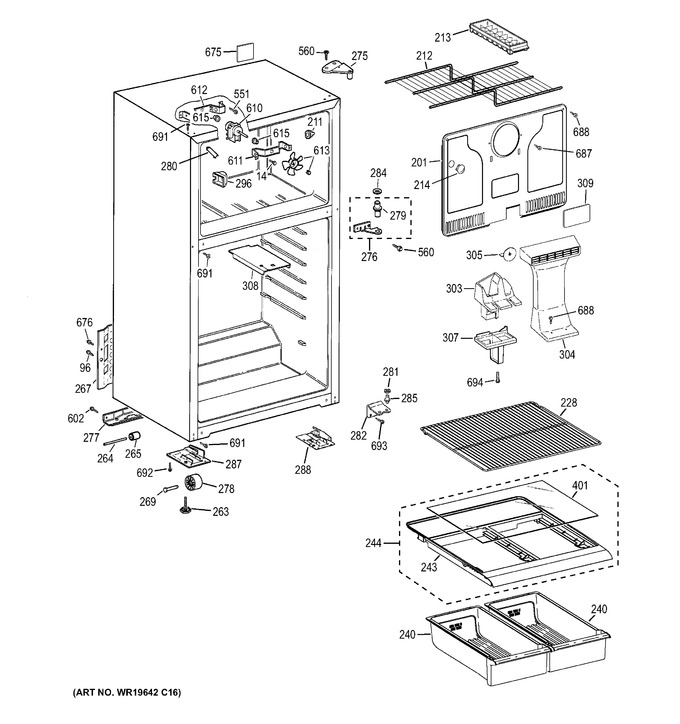

2 - Cabinet
3 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 14 | WR01X10594 | Scr 8-36 T Hxw 3/8 S |
|
- | |||||
| 201 | WR17X11887 | Cover Evap Asm |
|
- | |||||
| 212 | WG03F01596 | Shlf Asm Fz (Replaces: WR71X2086) |
|
$ 154.18 | |||||
| 213 | WR30X311 | Tray Ice |
|
- | |||||
| 214 | WR02X11760 | Plug Button |
|
- | |||||
| 228 | WR71X10789 | Shelf Asm Stationary |
|
- | |||||
| 240 | WG03L00653 | Pan Veg Twin Low (Replaces: WR32X10340) |
|
$ 156.16 | |||||
| 243 | WG03L00621 | Cover Veg Pan (Replaces: WR17X11662) |
|
Immediately | $ 164.90 | ||||
| 244 | WR32X10855 | Cover Asm Veg Pan |
|
$ 100.28 | |||||
| 263 | WG03F01630 | Glider Adj (Replaces: WR2X7877) |
|
$ 18.13 | |||||
| 264 | WG03F01631 | Axle Wheel Rear (Replaces: WR2X8214) |
|
$ 4.20 | |||||
| 265 | WG03L00759 | Wheel Mobility Rear (Replaces: WR2X8245) |
|
Immediately | $ 9.20 | ||||
| 267 | WR82X10112 | Cover Access |
|
- | |||||
| 269 | WG03L00748 | Axle Wheel Front (Replaces: WR02X12267) |
|
$ 4.20 | |||||
| 275 | WR13X10987 | Hinge Top & Pin Asm |
|
- | |||||
| 276 | WR13X10986 | Hinge Ctr & Pin Asm |
|
- | |||||
| 277 | WR17X3188 | Rail Rear |
|
- | |||||
| 278 | WG03L00758 | Wheel, Front (Replaces: WR2X8244) |
|
$ 12.71 | |||||
| 279 | WR2X8232 | Pin Hinge Ctr |
|
- | |||||
| 280 | WG03L00745 | Cap Corner Oc Wh (Replaces: WR02X10703) |
|
$ 6.09 | |||||
| 281 | WG03L08792 | Washer Hinge Brown (Replaces: WR01X10146) |
|
Immediately | $ 3.97 | ||||
| 282 | WG03L05308 | Hinge Bottom (Replaces: WR13X10886) |
|
$ 24.78 | |||||
| 284 | WG03A00237 | Spacer Door Fz (Replaces: WR1X1794) |
|
Immediately | $ 3.97 | ||||
| 285 | WG03L08909 | Metal Hinge Pin (Replaces: WR02X12238) |
|
$ 12.71 | |||||
| 287 | WR2X8709 | Gusset Lh |
|
- | |||||
| 288 | WR2X8708 | Gusset Rh |
|
- | |||||
| 296 | WR02X11123 | Cover Im Receptacle |
|
- | |||||
| 303 | WG03L01241 | Duct Foam (Replaces: WR02X12019) |
|
$ 30.18 | |||||
| 304 | WG03F01623 | Duct Air Fz (Replaces: WR17X11891) |
|
$ 90.06 | |||||
| 305 | WR02X12018 | Actuator Air |
|
- | |||||
| 307 | WR02X11793 | Diffuser Air Ff Asm |
|
- | |||||
| 308 | WR2X8428 | Insul Elect |
|
- | |||||
| 309 | WR02X12020 | Gasket Air Duct |
|
- | |||||
| 401 | WG03L01679 | Shelf Glass (Replaces: WR32X10854) |
|
$ 91.11 | |||||
| 551 | WR01A01042 | Scr 8-18 Ab Rndw 5/8 Ss (Replaces: WR01X10789) |
|
$ 3.97 | |||||
| 560 | WR1X1249 | Screw |
|
- | |||||
| 610 | WG03F02226 | Motor Evap Fan (Replaces: WR60X10285) |
|
Immediately | $ 74.17 | ||||
| 611 | WR2X9314 | Bracket Evap Fan Frt |
|
- | |||||
| 612 | WR2X9315 | Bracket Evap Fan Rear |
|
- | |||||
| 613 | WR60X10205 | Blade Evap Fan Asm |
|
$ 21.96 | |||||
| 615 | WR02X13132 | Grommet Evap Fan |
|
- | |||||
| 676 | WZ04X0263 | Scr 10-16 Ab Hxw 1/2 |
|
- | |||||
| 687 | WR01X10589 | Scr 8-15 Ab Ihxw 1/2 S |
|
- | |||||
| 688 | WR01X10448 | Scr 8-19 Hi/lo Trp 1 S |
|
- | |||||
| 691 | WR01A01036 | Scr 12-24 .7 (Replaces: WR1X1753) |
|
$ 3.97 | |||||
| 693 | WG03A00439 | Scr 12-24 Tt Ovt20 .900 (Replaces: WR01X10591) |
|
$ 4.20 | |||||
| 694 | WR1X1792 | Screw |
|
- |
