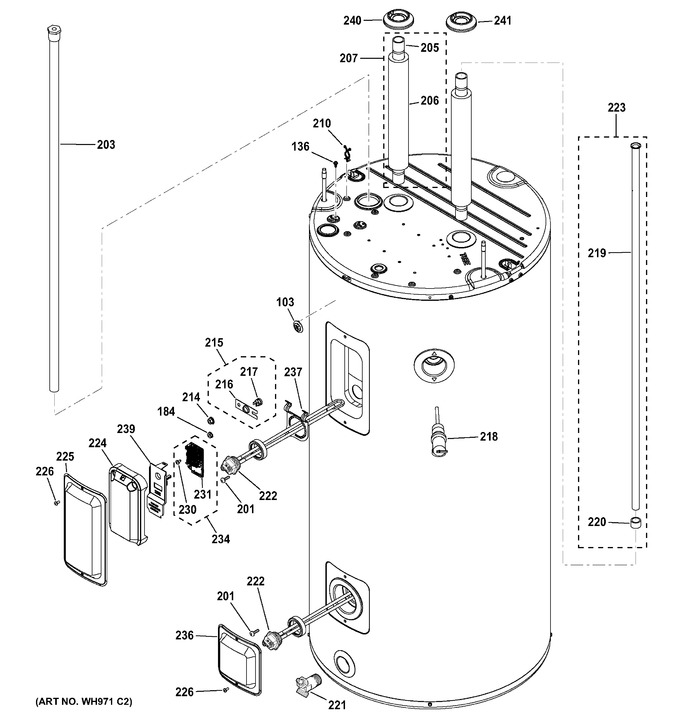

SELECT A DIAGRAM

1 - Control Panel & Shroud


2 - Body Parts


3 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
103	WS34X10030		Badge Asm Ge		Appelez-nous	-
136	WS02X10087		Scr 10-32 Gx Hxw 7/16 S		Appelez-nous	-
184	WH02X10300		Nut Keps 10-32 Special		Appelez-nous	-
201	WS02X10077		Scr 10-32 Pnup 13/32 S		Appelez-nous	-
203	WS02X10071		Rod Anode		Appelez-nous	-
205	WS07X10032		Pipe Extension Trap		Appelez-nous	-
206	WS07X10031		Tube Insulation, Pipe		Appelez-nous	-
207	WS35X10070		Pipe Extention Asm		Appelez-nous	-
210	WS02X10073		Wire Tie Ball		Appelez-nous	-
214	WS02X10075		1/4-20 Hex Nut - Locking		Appelez-nous	-
215	WS17X10013		T2 Tank Thermistor Asm		Appelez-nous	-
216	WS28X10074		Bracket Thermistor T2		Appelez-nous	-
217	WS17X20586		Tank Thermistor T2   (Replaces: WS17X10006)		Appelez-nous	-
218	WS06X10014		Valve, Temp/pressure Rel		Appelez-nous	-
219	WS08X10015		Diptube		Appelez-nous	-
220	WS03X10076		Seal Diptube		Appelez-nous	-
221	WS06X10013		Valve Drain		Appelez-nous	-
222	WS51X10002		Element Heating W Gasket		Appelez-nous	-
223	WS35X10072		Dip Tube And Seal		Appelez-nous	-
224	WS82X10006		Cover Elmnt (upper) Eps		Appelez-nous	-
225	WS31X10055		Cover Elmnt Metal U. Red		Appelez-nous	-
226	WS02X10074		Scr T20h Tamper Proof		Appelez-nous	-
230	WS02X10076		Scr 10-32 Pnup 3/8 S		Appelez-nous	-
231	WS17X10009		Tco (thermal Cut Out)		Appelez-nous	-
234	WS17X10012		Tco Dlb And Screws		Appelez-nous	-
236	WS31X10056		Cover Elmnt Metal L. Red		Appelez-nous	-
237	WS03X10074		Clip Spring Tco		Appelez-nous	-
239	WS34X10026		Barrier Dielectric		Appelez-nous	-
240	WS01X10050		Grommet Outlet, Red		Appelez-nous	-
241	WS01X10051		Grommet Inlet, Blue		Appelez-nous	-
	WG04A03033		Evaporator Kit				$ 839.74
	WG02A02471		Valve Kit				$ 241.39

    View Diagram in Separate Window       Print Part List
