SELECT A DIAGRAM

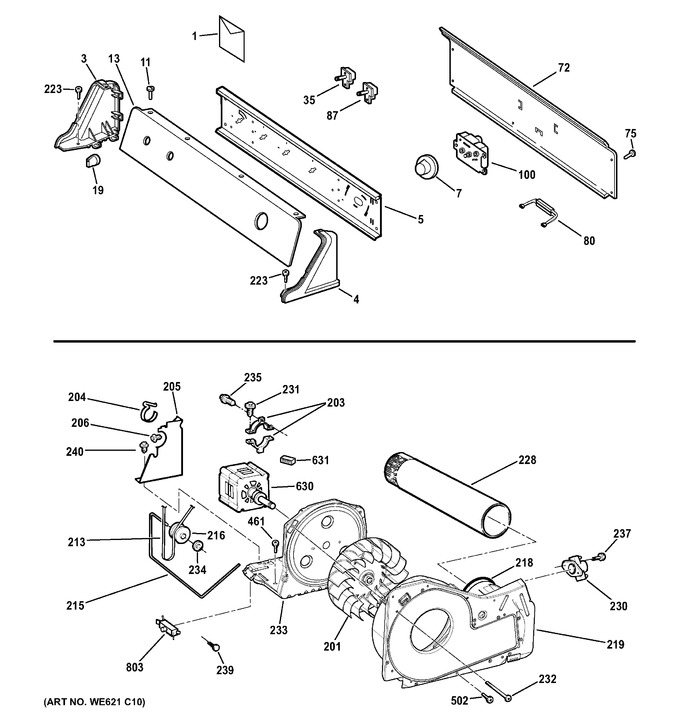

1 - Backsplash, Blower & Motor Assembly
2 - Front Panel & Door
3 - Cabinet & Top Panel
4 - Drum
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-16281 | Wiring Diagram (front Si |
|
- | |||||
| 1 | 49-9918 | Uc Dist333 Export Sp/chi |
|
- | |||||
| 1 | 31-16310 | Pm Install Instructions |
|
- | |||||
| 3 | WE19M1418 | End Cap Lh Snow Wh |
|
- | |||||
| 4 | WE19M1419 | End Cap Rh Snow Wh |
|
- | |||||
| 5 | WE19M1772 | Switch Support |
|
- | |||||
| 7 | WW02F00177 | Knob Timer (Replaces: WE1X1263) |
|
Immediately | $ 16.07 | ||||
| 11 | WH02X10089 | Screw 8-18 Ab Flt 9/16 S |
|
- | |||||
| 13 | WE19M1028 | Switch Trim |
|
- | |||||
| 19 | WE1M920 | Knob & Clip Asm Wh |
|
- | |||||
| 35 | WE4M402 | Rotary Start Switch Reg |
|
- | |||||
| 72 | WE20M343 | Panel Back |
|
- | |||||
| 75 | WE2M173 | Screw |
|
- | |||||
| 80 | WE4M214 | Resistor Asm 2x4000ohms |
|
- | |||||
| 87 | WE4M404 | Rotary Switch 3temp Elec |
|
- | |||||
| 100 | WE4M231 | Timer |
|
- | |||||
| 201 | WE16M17 | Blower Wheel W/insert |
|
- | |||||
| 203 | WE13X200 | Strap Motor |
|
- | |||||
| 204 | WE1X921 | Strap Motor |
|
- | |||||
| 205 | WE13M39 | Motor Support |
|
- | |||||
| 206 | WE2M200 | Screw |
|
- | |||||
| 213 | WW02F00854 | Belt Drive (Replaces: WE12M29) |
|
Immediately | $ 26.44 | ||||
| 215 | WW02A00060 | Idler Arm Spring (Replaces: WE3M25) |
|
$ 11.34 | |||||
| 216 | WW02F00871 | Pulley Idler (Replaces: WE12M8) |
|
Immediately | $ 5.36 | ||||
| 218 | WE1M473 | Gasket Seal |
|
- | |||||
| 219 | WE14M234 | Blower Housing Asm |
|
- | |||||
| 228 | WW02L00148 | Exaust Pipe (Replaces: WE14M90) |
|
$ 14.02 | |||||
| 230 | LS2-135 | Thermostat Drum Out (Replaces: WE4M127) |
|
Immediately | $ 24.60 | ||||
| 231 | WE2M187 | Screw |
|
- | |||||
| 232 | WW02A00032 | Screw (Replaces: WE2M202) |
|
$ 3.57 | |||||
| 233 | WE13M65 | Plate Motor |
|
- | |||||
| 234 | WG04A00124 | Cap Nut (Replaces: WE2M96) |
|
$ 9.11 | |||||
| 235 | WE2M307 | Scr 10-16 X 1/2 Ab |
|
- | |||||
| 237 | WE2M154 | Screw |
|
- | |||||
| 239 | WE2M167 | Screws |
|
- | |||||
| 240 | WW01A00521 | Screw (Replaces: WE1M280) |
|
$ 3.57 | |||||
| 461 | WZ5X158 | Screw Ground |
|
- | |||||
| 502 | WW02A00031 | Screw # 10 (Replaces: WE2M174) |
|
Immediately | $ 3.57 | ||||
| 630 | WE17M48 | Motor Kit 240/60 W/wheel |
|
- | |||||
| 631 | WE1M650 | Connector Motor |
|
$ 13.19 | |||||
| 803 | WW02F00249 | Switch Interlock (Replaces: WD21X557) |
|
Immediately | $ 15.72 |
