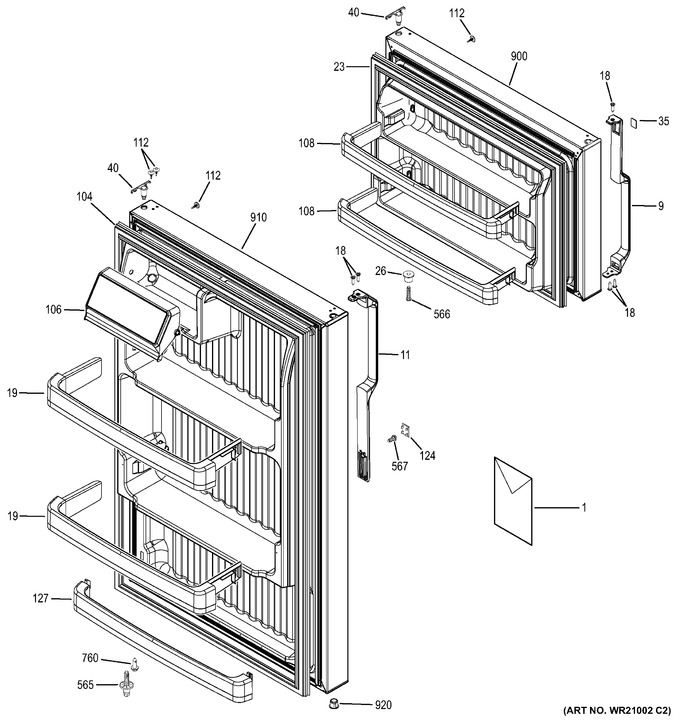

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51836		Pm Mini Manual Wiring		Appelez-nous	-
1	49-60655		Pm Guide Owners		Appelez-nous	-
9	WR12X10685		Handle Door Asm Fz Bk		Appelez-nous	-
11	WG03L01398		Handle Door Ff Bk   (Replaces: WR12X10684)				$ 68.39
18	WR1X1726		Scr 10-16ab Fwr 3/4 Ss		Appelez-nous	-
19	WR17X12916		Shelf Fixed Ff		Appelez-nous	-
23	WG03L00639		Gasket Door Fz   (Replaces: WR24X10227)				$ 133.54
26	WR02X13135		Stop Door		Appelez-nous	-
35	WR04X10030		Lens Nameplate Bk		Appelez-nous	-
40	WG04L03994		Epaulet Door Corner   (Replaces: WR02X13432)				$ 4.94
104	WG03L02119		Gasket Door Ff   (Replaces: WR24X10237)			Immediately	$ 168.52
106	WG03L00721		Door Dairy   (Replaces: WR22X10068)				$ 83.70
108	WG03F01622		Shelf Fixed Fz   (Replaces: WR17X11890)			Immediately	$ 50.92
112	WR01A00518		Plug Door Rvsbl Bk   (Replaces: WR2X8701)				$ 4.20
124	WR12X564		Plug Button Insert Bk		Appelez-nous	-
127	WG03L01567		Shelf Fixed Ff   (Replaces: WR17X11911)				$ 67.82
565	WG03A00419		Scr 12-24 Gx Hxw .750   (Replaces: WR01X10950)				$ 29.41
566	WR01X10898		Scr 12-24 Gx Bht20 .900		Appelez-nous	-
567	WR01X10590		Scr 10-16 Ab Pnt20 1/2 S		Appelez-nous	-
760	WR01X10641		Scr 10-32 Gx Hxw 9/16 S		Appelez-nous	-
900	WR78X12492		Door Asm Foam Fz		Appelez-nous	-
910	WR78X12493		Door Asm Foam Ff		Appelez-nous	-
920	WR02X11774		Plug Button Thimble		Appelez-nous	-
