SELECT A DIAGRAM

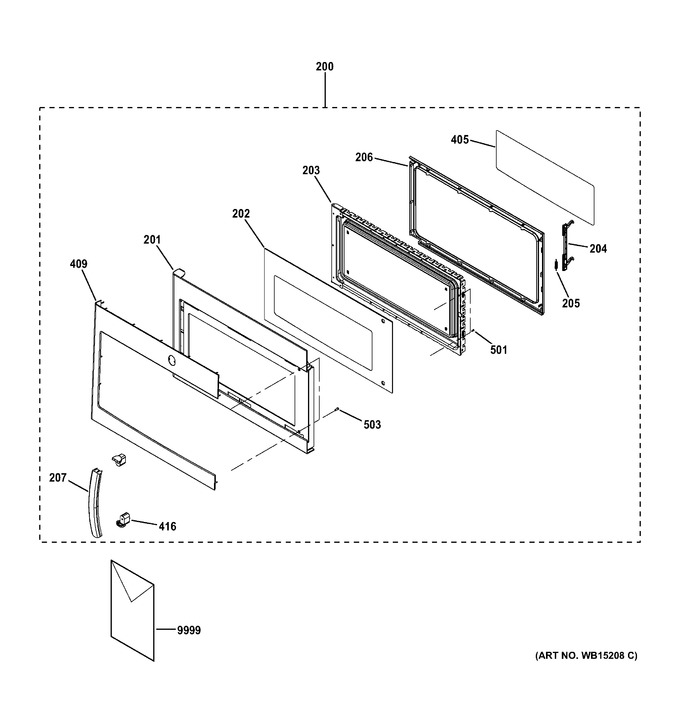

1 - Door Parts
2 - Control Parts
3 - Oven Cavity Parts
4 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 200 | WB56X11019 | Door Asm |
|
- | |||||
| 201 | WB55X10980 | Door Panel |
|
- | |||||
| 202 | WB56X11010 | Window |
|
- | |||||
| 203 | WB55X10973 | Door Frame Asm |
|
- | |||||
| 204 | WB14X10053 | Latch |
|
$ 8.75 | |||||
| 205 | WB05X10013 | Latch Spring |
|
- | |||||
| 206 | WB55X10974 | Cover Choke |
|
- | |||||
| 207 | WB15X10278 | Handle |
|
- | |||||
| 405 | WB06X10940 | Door Inner Film |
|
- | |||||
| 409 | WB07X11414 | Cover Door |
|
- | |||||
| 416 | WB06X10944 | Handle Support |
|
- | |||||
| 501 | WB01X10433 | Screw St4*8pbhc |
|
- | |||||
| 503 | WB01X10431 | Screw St4*12pwbhc |
|
- | |||||
| 9999 | 49-40669 | Use & Care Manual |
|
- | |||||
| 9999 | 31-41079 | Mini Manual |
|
- |
