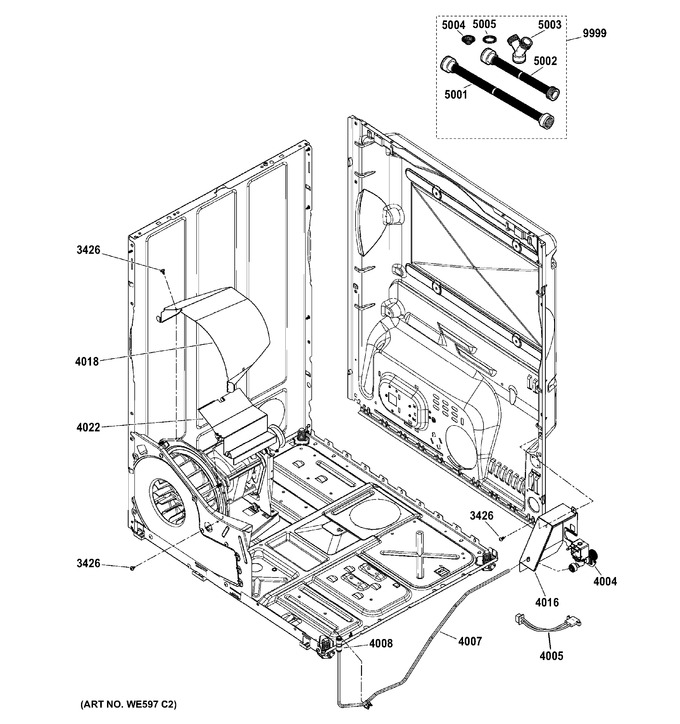

1 - Backsplash, Blower & Drive Assembly
2 - Front Panel & Door
3 - Water System
4 - Cabinet & Top Panel
5 - Shields & Water Parts
6 - Drum
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3426 | WE2M223 | Screw |
|
- | |||||
| 4004 | WE25M72 | Water Valve Asm Kit |
|
- | |||||
| 4005 | WE5M91 | Harness High Limit |
|
- | |||||
| 4007 | WE1M1099 | Mist Hose |
|
- | |||||
| 4008 | WE1M942 | Quick Connector - Tubing |
|
- | |||||
| 4016 | WE25M76 | Water Valve Shield Kit |
|
- | |||||
| 4018 | WE1M931 | Shield Motor |
|
- | |||||
| 4022 | WE1M976 | Shield Thermostat |
|
- | |||||
| 5001 | WE1M847 | Inlet Hose (long) |
|
- | |||||
| 5002 | WE1M848 | Inlet Hose(short) W/m & |
|
- | |||||
| 5003 | WE1M849 | Y Adaptor |
|
- | |||||
| 5004 | WE1M850 | Screen For Washer Hose |
|
- | |||||
| 5005 | WE1M851 | Rubber Washer For Intake |
|
- | |||||
| 9999 | WE25M53 | Hose Inlet Asm - Kit |
|
- |
