1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Sump & Filter Assembly

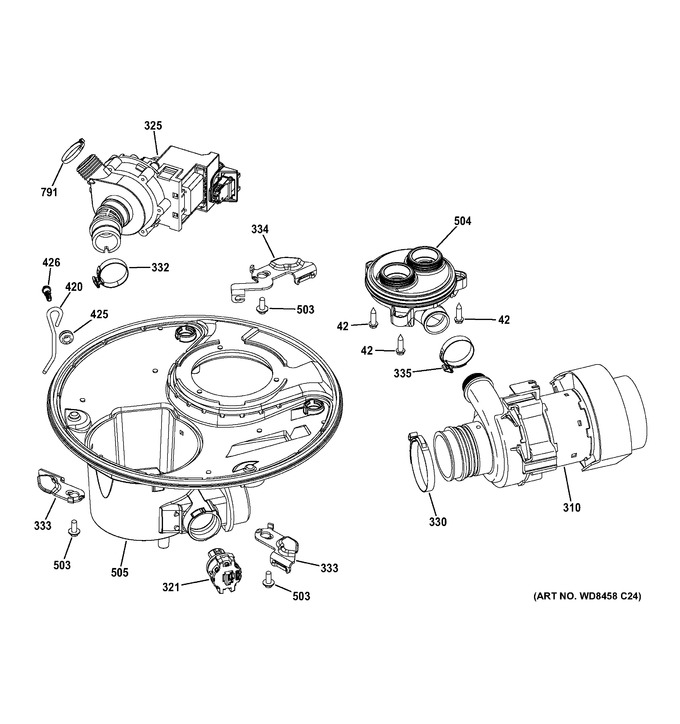

6 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 42 | WD02X10110 | Screw #8-3/4 L Hx Hd Ss |
|
- | |||||
| 310 | WD35X10385 | Wash Pump Kit |
|
- | |||||
| 321 | WG04F05595 | Sensor Turbidity Asm (Replaces: WD21X10494) |
|
$ 50.92 | |||||
| 325 | WG04F10705 | P1 Drain Pump Kit (Replaces: WD35X20874) |
|
$ 291.00 | |||||
| 332 | WD01X10573 | Clamp |
|
- | |||||
| 333 | WD01X10632 | Latch Cam |
|
- | |||||
| 334 | WD01X10575 | Latch Cam |
|
- | |||||
| 335 | WD01X10572 | Clamp |
|
- | |||||
| 420 | WD01X10579 | Hanger Drain Pump |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 426 | WD02X10094 | Wd02x10093 |
|
- | |||||
| 503 | WB01T10103 | Scr 10-16 Ab Hxw .532 |
|
- | |||||
| 504 | WD18X10052 | Diverter Passive Asm |
|
- | |||||
| 505 | WG04F06743 | Sump Manifold (Replaces: WD18X10054) |
|
$ 66.87 | |||||
| 791 | WW01A00722 | Clamp (Replaces: WD01X10611) |
|
$ 12.71 | |||||
| WG04F04857 | Switch Flood Asm |
|
Immediately | $ 100.20 | |||||
| WG04F04764 | Panel Control Asm |
|
$ 57.27 | ||||||
| WG04A05239 | Module Detergent (Replaces: WG04F04754) |
|
Immediately | $ 108.73 | |||||
| WG04F04749 | Mid Conduit Asm |
|
$ 34.94 | ||||||
| WG04F04726 | Latch Tub Side Standard |
|
Immediately | $ 69.95 | |||||
| WG04F04671 | Hose Elbow Drain |
|
Immediately | $ 76.30 | |||||
| WG04A03393 | Board Main Control (Replaces: WG04F04510) |
|
$ 222.56 | ||||||
| WG04A03481 | Kit-serv Ui Front Logic (Replaces: WG04A01486) |
|
$ 166.58 | ||||||
| WG04A01338 | Wash Pump Kit |
|
$ 200.56 | ||||||
| WG04A01163 | Ensemble |
|
$ 146.95 | ||||||
| WG04L06024 | Gasket Tub (Replaces: WG04L04120) |
|
Immediately | $ 92.18 | |||||
| WG04A01134 | Kit - Piranha Clamps Ps |
|
Immediately | $ 21.85 | |||||
| WG04L03089 | Funnel Fill |
|
$ 17.03 | ||||||
| WG04L02003 | Support |
|
$ 78.04 | ||||||
| WG04L02002 | Support |
|
$ 76.77 | ||||||
| WG04L02003 | Assemblage (Replaces: WG04L01961) |
|
$ 78.04 | ||||||
| WG04L01960 | Assemblage |
|
$ 69.81 | ||||||
| WG04L01820 | Porte Exterieur |
|
$ 156.10 | ||||||
| WG04L01693 | Gasket Fill Funnel |
|
$ 13.61 | ||||||
| WG03A02167 | Assemblage Bras Cigleur Supﾃ#rieur (Replaces: WG04L01519) |
|
Immediately | $ 98.12 | |||||
| WG04F08972 | Gasket Beach Plastic |
|
Immediately | $ 14.48 | |||||
| WG04F06765 | Conduit Principal Asm |
|
$ 60.44 | ||||||
| WG04F10705 | Ens. Vidange De La Pompe (Replaces: WG04F06725) |
|
$ 291.00 | ||||||
| WG04F06702 | Silicone Light Pipe |
|
$ 74.58 | ||||||
| WG04F05396 | Faisceau, Assemblage Porte |
|
$ 121.21 | ||||||
| WG04F05005 | Valve Water Asm |
|
Immediately | $ 87.23 |
