SELECT A DIAGRAM
1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Sump & Filter Assembly
6 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:

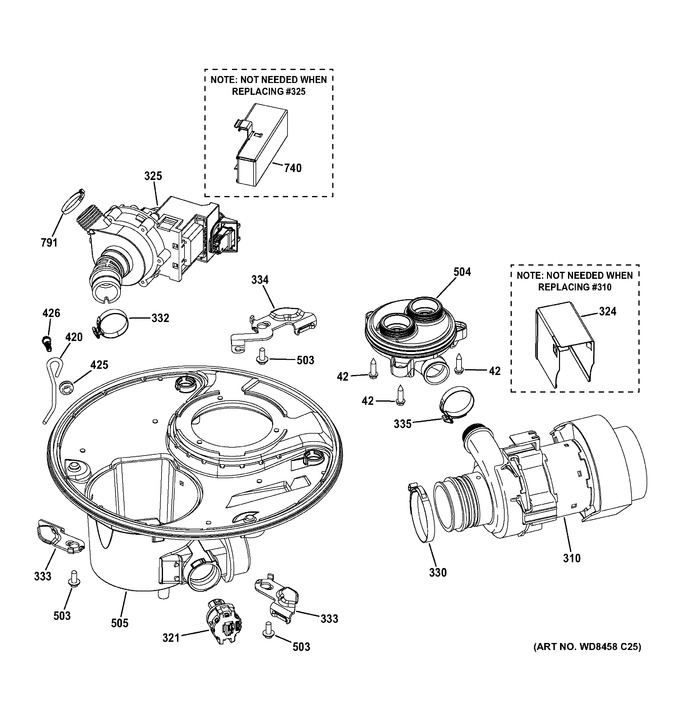

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 42 | WD02X10110 | Screw #8-3/4 L Hx Hd Ss |
|
- | |||||
| 310 | WD35X10385 | Wash Pump Kit |
|
- | |||||
| 321 | WG04F05595 | Sensor Turbidity Asm (Replaces: WD21X10494) |
|
$ 50.92 | |||||
| 324 | WD01X10580 | Shield Wash Pump |
|
- | |||||
| 325 | WG04F10705 | P1 Drain Pump Kit (Replaces: WD35X20874) |
|
$ 291.00 | |||||
| 330 | WG04A01134 | Clamp (Replaces: WD01X10571) |
|
Immediately | $ 21.85 | ||||
| 332 | WD01X10573 | Clamp |
|
- | |||||
| 333 | WD01X10632 | Latch Cam |
|
- | |||||
| 334 | WD01X10575 | Latch Cam |
|
- | |||||
| 335 | WD01X10572 | Clamp |
|
- | |||||
| 420 | WD01X10579 | Hanger Drain Pump |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 426 | WD02X10094 | Wd02x10093 |
|
- | |||||
| 503 | WB01T10103 | Scr 10-16 Ab Hxw .532 |
|
- | |||||
| 504 | WD18X10052 | Diverter Passive Asm |
|
- | |||||
| 505 | WG04F06743 | Sump Manifold (Replaces: WD18X10054) |
|
$ 66.87 | |||||
| 740 | WD01X10584 | Shield Drain Pump |
|
- | |||||
| 791 | WW01A00722 | Clamp (Replaces: WD01X10611) |
|
$ 12.71 | |||||
| WG04F06950 | Seal Conduit |
|
$ 9.53 | ||||||
| WG04A01487 | Kit-serv Ui Top Logic |
|
$ 171.21 | ||||||
| WG04A01023 | Bearing Spray Arm Low - Spacer |
|
$ 3.97 | ||||||
| WG04A03393 | Board Main Control (Replaces: WG04F04510) |
|
$ 222.56 | ||||||
| WG04F10705 | Harness Asm Ac (Replaces: WG04F04654) |
|
$ 291.00 | ||||||
| WG04F04857 | Switch Flood Asm |
|
Immediately | $ 100.20 | |||||
| WG04L06024 | Gasket Tub (Replaces: WG04L04120) |
|
Immediately | $ 92.18 | |||||
| WG04F05399 | Harness Asm Door |
|
$ 66.80 | ||||||
| WG04F04480 | Adapter Conduit Asm |
|
$ 68.68 |
