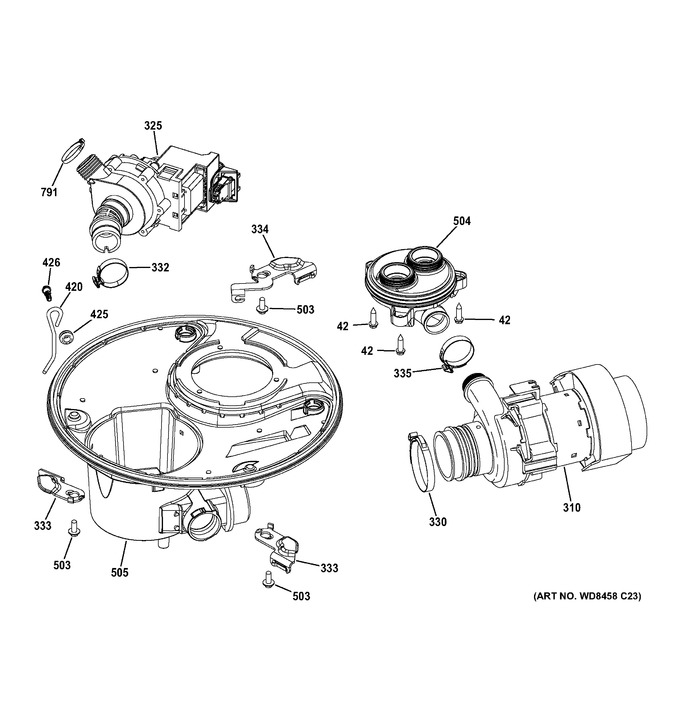

1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Sump & Filter Assembly
6 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 42 | WD02X10110 | Screw #8-3/4 L Hx Hd Ss |
|
- | |||||
| 310 | WD26X20551 | Pump Wash Main Asm |
|
- | |||||
| 325 | WG04F10705 | Pump Drain (Replaces: WD26X10062) |
|
$ 291.00 | |||||
| 330 | WG04A01134 | Clamp (Replaces: WD01X10571) |
|
Immediately | $ 21.85 | ||||
| 332 | WD01X10573 | Clamp |
|
- | |||||
| 333 | WD01X10632 | Latch Cam |
|
- | |||||
| 334 | WD01X10575 | Latch Cam |
|
- | |||||
| 335 | WD01X10572 | Clamp |
|
- | |||||
| 420 | WD01X10579 | Hanger Drain Pump |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 426 | WD02X22781 | Scr 10-18 X 5/8 |
|
- | |||||
| 503 | WB01T10103 | Scr 10-16 Ab Hxw .532 |
|
- | |||||
| 504 | WD18X10052 | Diverter Passive Asm |
|
- | |||||
| 505 | WD18X10053 | Sump Manifold |
|
- | |||||
| 791 | WW01A00722 | Clamp (Replaces: WD01X10611) |
|
$ 12.71 | |||||
| WG04F04749 | Mid Conduit Asm |
|
$ 34.94 | ||||||
| WG04F04726 | Latch Tub Side Standard |
|
Immediately | $ 69.95 | |||||
| WG04F04678 | Boyau |
|
$ 16.35 | ||||||
| WG04F04671 | Hose Elbow Drain |
|
Immediately | $ 76.30 | |||||
| WG04F04573 | Control Board Main Good |
|
$ 276.55 | ||||||
| WG04F10015 | Boyau Asm. Ens. (Replaces: WG04A02645) |
|
$ 27.00 | ||||||
| WG04A03474 | Ens. Service Controle (Replaces: WG04A01485) |
|
$ 201.36 | ||||||
| WG04A01338 | Pompe |
|
$ 200.56 | ||||||
| WG04A01160 | Kit-spray Arm Service |
|
$ 83.84 | ||||||
| WG04A01155 | Kit-inner Door & Latch |
|
$ 124.60 | ||||||
| WG04A01134 | Attache |
|
Immediately | $ 21.85 | |||||
| WG04L06024 | Gasket Tub (Replaces: WG04L04120) |
|
Immediately | $ 92.18 | |||||
| WG04A01085 | Diverter Asm Kit |
|
Immediately | $ 66.80 | |||||
| WG01F08058 | Panier Inf. Asm. (Replaces: WG04L03275) |
|
Immediately | $ 179.96 | |||||
| WG04F08972 | Gasket Plastic (Replaces: WG04L01697) |
|
Immediately | $ 14.48 | |||||
| WG04L05711 | Door Outer Painted Wh (Replaces: WG04L01623) |
|
$ 171.03 | ||||||
| WG04L01535 | Panier ﾃ# Ustensile Asm |
|
$ 70.65 | ||||||
| WG03A02167 | Assemblage Bras Cigleur Supﾃ#rieur (Replaces: WG04L01519) |
|
Immediately | $ 98.12 | |||||
| WG04L01203 | Agitator Asm Multi |
|
Immediately | $ 161.51 | |||||
| WG04F07025 | Sump Manifold |
|
$ 80.09 | ||||||
| WG04F10705 | P1 Pump Drain Kit (Replaces: WG04F06725) |
|
$ 291.00 | ||||||
| WG04F06706 | Silicone Light Pipe |
|
$ 66.57 | ||||||
| WG04F05005 | Valve Water Asm |
|
Immediately | $ 87.23 | |||||
| WG04F04982 | User Interface Board |
|
$ 97.21 | ||||||
| WG04F04857 | Switch Flood Asm |
|
Immediately | $ 100.20 | |||||
| WG04F04765 | Panel Control Asm |
|
$ 45.82 | ||||||
| WG04A05239 | Module Detergent (Replaces: WG04F04754) |
|
Immediately | $ 108.73 |
