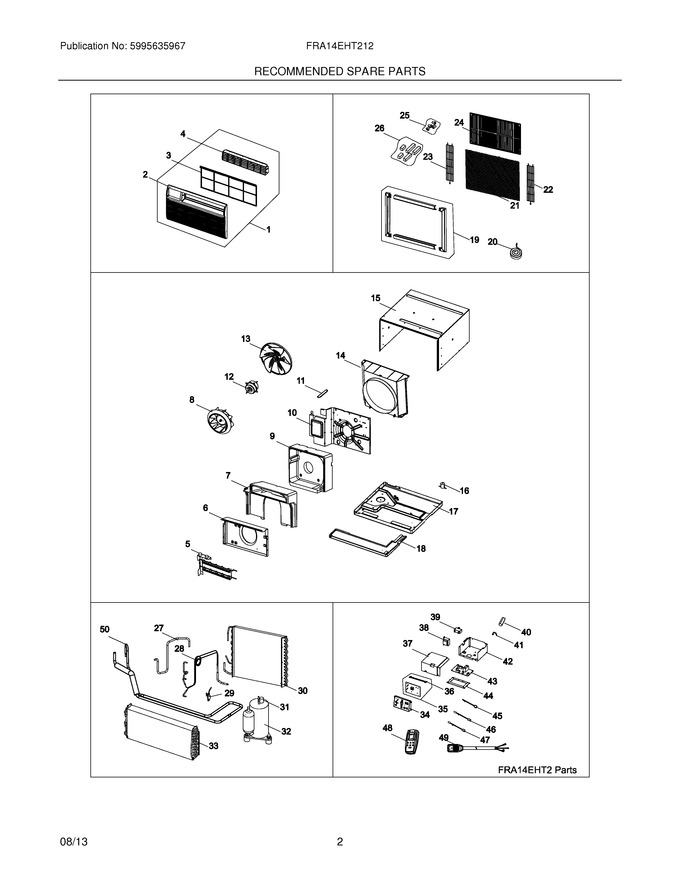

03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 5304476621 | Panel,heater Support ,housing |
|
- | |||||
| 7 | 5304476622 | Scroll,blower Housing ,front |
|
- | |||||
| 9 | 5304476439 | Scroll,blower Housing ,rear |
|
- | |||||
| 10 | 5304470964 | Bulkhead,air System |
|
- | |||||
| 11 | 5304470965 | Rod,connecting Link |
|
- | |||||
| 14 | 5304492058 | Shroud,fan Housing ,condenser |
|
- | |||||
| 15 | 5304476440 | Cabinet,wrapper/sleeve |
|
- | |||||
| 17 | 5304492063 | Base,unit Chassis |
|
- | |||||
| 18 | 5304470961 | Tray,drip Pan |
|
- | |||||
| 19 | 5304470973 | Trim,frame ,top/bottom/side |
|
$ 184.17 | |||||
| 20 | 5304470974 | Seal,stuffer ,foam ,wall/sleeve |
|
- | |||||
| 21 | 5304470975 | Grille,plastic ,rear |
|
- | |||||
| 22 | 5304482547 | Grille,air Inlet ,right Rear |
|
- | |||||
| 23 | 5304482548 | Grille,air Inlet ,left Rear |
|
- | |||||
| 24 | 5304482549 | Grille,sleeve ,aluminum ,rear |
|
- | |||||
| 25 | 5304470978 | Fastener Kit,rear Grille ,screws |
|
- | |||||
| 26 | 5304470979 | Seal & Spacer Kit |
|
- | |||||
| 37 | 5304476448 | Cover,control Box |
|
- | |||||
| 41 | 5304482115 | Strap,capacitor Clamp |
|
- | |||||
| 42 | 5304476449 | Control Box |
|
- | |||||
| 44 | 5304476251 | Holder,mounting Plate ,control |
|
- | |||||
| F1 | 5304492061 | Front Assembly,complete Panel |
|
- | |||||
| F12 | 5304476920 | Motor,fan |
|
- | |||||
| F13 | 5304470971 | Fan Blade |
|
$ 82.41 | |||||
| F16 | 5304476624 | Valve,drain |
|
- | |||||
| F2 | 5304476435 | · Panel,front Grille |
|
- | |||||
| F27 | 5304482551 | Tube,discharge |
|
- | |||||
| F28 | 5304487622 | Tube,capillary |
|
- | |||||
| F29 | 5304476367 | Filter-dryer |
|
$ 45.55 | |||||
| F3 | 5304476436 | · Filter,air ,plastic Frame |
|
- | |||||
| F30 | 5304482555 | Condenser |
|
- | |||||
| F31 | 5304476922 | Overload Protector,compressor |
|
- | |||||
| F32 | 5304476923 | Compressor,with Overload |
|
- | |||||
| F33 | 5304483435 | Evaporator,w/cap Tube |
|
- | |||||
| F34 | 5304492064 | Control Panel,with Overlay |
|
- | |||||
| F35 | 5304470987 | Pc Board,display/input |
|
- | |||||
| F36 | 5304480400 | · Wire,connector ,pc Boards |
|
- | |||||
| F38 | 5304535831 | Transformer (Replaces: 5304471063) |
|
- | |||||
| F39 | 5304512460 | Capacitor,fan Motor (Replaces: 5304471103) |
|
- | |||||
| F4 | 5304492062 | · Louver,horizontal |
|
- | |||||
| F40 | 5304475748 | Capacitor |
|
- | |||||
| F43 | 5304492065 | Pc Board,control ,main |
|
- | |||||
| F45 | 5304512375 | Sensor,temperature ,evaporator (Replaces: 5304471383) |
|
$ 33.16 | |||||
| F46 | 5304512374 | Thermistor,temp Sensor ,indoor (Replaces: 5304491883) |
|
- | |||||
| F47 | 5304476316 | Sensor,temperature ,discharge Air ,daht |
|
- | |||||
| F48 | 5304476631 | Remote Control,transmitter |
|
- | |||||
| F49 | 5304487625 | Power Cord,electric ,lcdi |
|
- | |||||
| F5 | 5304521227 | Heater,electric (Replaces: 5304476390) |
|
- | |||||
| F50 | 5304487624 | Tube,condensate Evap ,drain Pan |
|
- | |||||
| F8 | 5304476623 | Blower Wheel,centrifugal Fan |
|
- |
