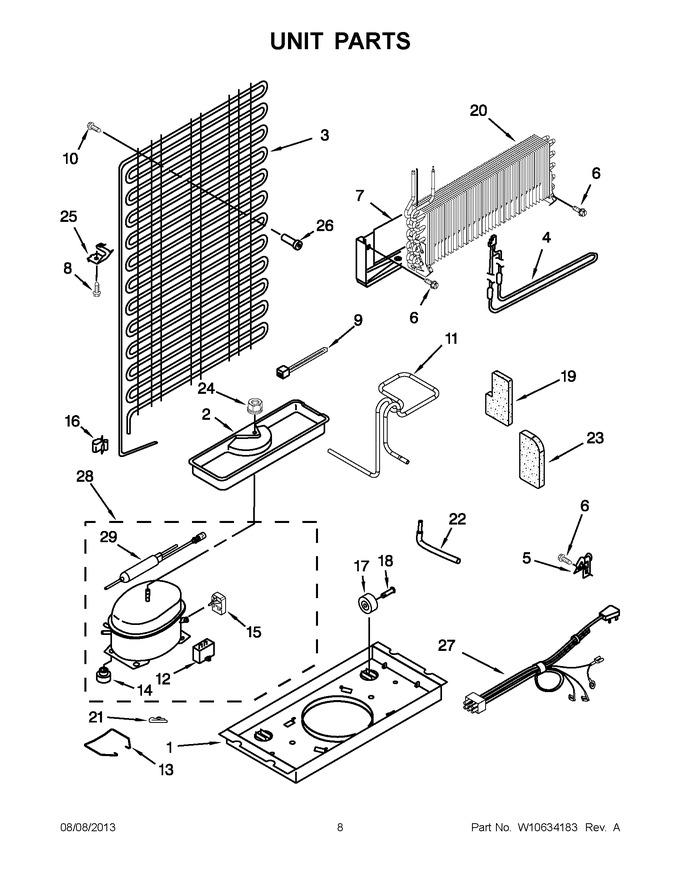

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10222451 | Support Plate, Compressor |
|
$ 32.07 | |||||
| 2 | W10174378 | Tray, Evaporator |
|
$ 156.50 | |||||
| 3 | WPW10219348 | Condenser (Replaces: W10219348) |
|
$ 310.04 | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2263749) |
|
Immediately | $ 93.70 | ||||
| 5 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 8 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 9 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 10 | 8533892 | Screw |
|
- | |||||
| 11 | WPW10442467 | Tube, Discharge (Replaces: W10442467) |
|
$ 118.58 | |||||
| 12 | WP65889-4 | Capacitor (Replaces: 2252799) |
|
Immediately | $ 61.14 | ||||
| 13 | 2212996 | Bale Strap |
|
$ 12.72 | |||||
| 14 | WPW10169124 | Grommet (Replaces: 2264447) |
|
$ 7.55 | |||||
| 15 | WPW10399283 | Start Device, (Replaces: W10399283) |
|
$ 176.31 | |||||
| 16 | W10812038 | Clip, Wire (compressor) (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 32.06 | ||||
| 18 | WP2264756 | Axle, Roller (Replaces: 2264756) |
|
$ 7.55 | |||||
| 19 | 2262191 | Wedge, Evaporator |
|
- | |||||
| 20 | WP2263919 | Evaporator Assembly (Replaces: 2263919) |
|
$ 324.61 | |||||
| 21 | 24364001 | Pin, Cotter |
|
- | |||||
| 22 | W11676464 | Tube, Process (Replaces: VS20001) |
|
$ 108.61 | |||||
| 23 | 2262192 | Wedge, Evaporator |
|
- | |||||
| 24 | 285002 | Nut, Hex (Replaces: 489153) |
|
$ 12.85 | |||||
| 25 | 4386951 | Clip, Condenser (Replaces: 2172892) |
|
- | |||||
| 26 | 2258452 | Spacer, Condenser |
|
- | |||||
| 27 | W10151654 | Harness, Unit |
|
$ 308.35 | |||||
| 28 | W10822653 | Compressor (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: W10399120) |
|
$ 390.64 | |||||
| 29 | W10843121 | Drier (Replaces: W10190413) |
|
Immediately | $ 57.13 | ||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 137.25 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 95.92 | ||||
| NI | N/P | Refrigerant Charge 3.75 Oz. (r-134) |
|
- | |||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 134.49 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 21.64 |
