1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Sump & Filter Assembly


6 - Sump & Motor Mechanism

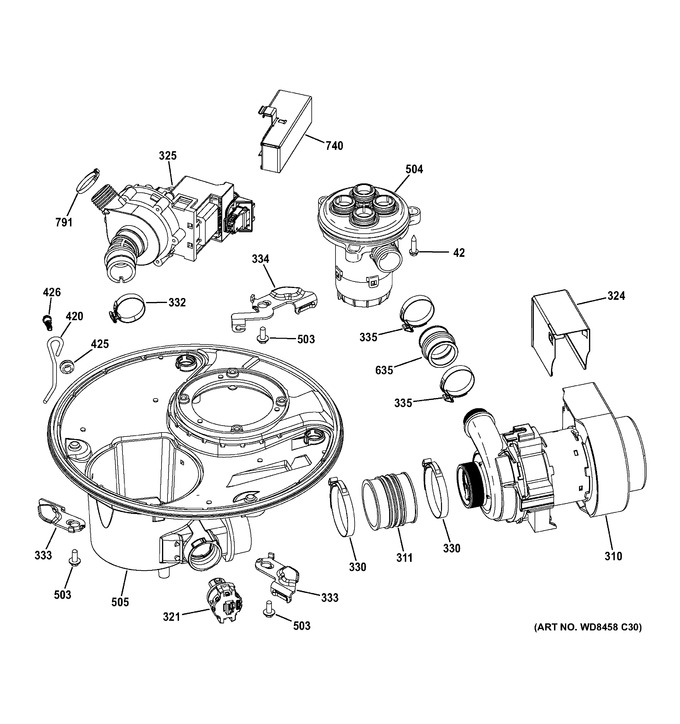

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
42	WD02X10110		Screw #8-3/4 L Hx Hd Ss		Appelez-nous	-
310	WD26X20551		Pump Wash Main Asm		Appelez-nous	-
311	WD24X10059		Hose Wash Pump Inlet		Appelez-nous	-
321	WG04F05595		Sensor Turbidity Asm   (Replaces: WD21X10494)				$ 45.83
324	WD01X20212		Shield Pump Main		Appelez-nous	-
325	WG04A03669		P2a Drain Pump Kit   (Replaces: WD35X20875)			Immediately	$ 275.37
330	WG04A01134		Clamp   (Replaces: WD01X10571)			Immediately	$ 19.67
332	WD01X10573		Clamp		Appelez-nous	-
333	WD01X10632		Latch Cam		Appelez-nous	-
334	WD01X10575		Latch Cam		Appelez-nous	-
335	WD01X10572		Clamp		Appelez-nous	-
420	WD01X10579		Hanger Drain Pump		Appelez-nous	-
425	WD01X10101		Grommet		Appelez-nous	-
426	WD02X10094		Wd02x10093		Appelez-nous	-
503	WB01T10103		Scr 10-16 Ab Hxw .532		Appelez-nous	-
504	WG04A02646		Active Diverter Asm Kit   (Replaces: WD35X20598)				$ 137.34
505	WD18X10055		Sump Manifold		Appelez-nous	-
635	WD24X10058		Hose Wash Pump Outlet		Appelez-nous	-
740	WD01X10584		Shield Drain Pump		Appelez-nous	-
791	WW01A00722		Clamp   (Replaces: WD01X10611)				$ 11.44
	WG04L02219		Handle Asm				$ 226.15
	WW01F03176		Module Detergent   (Replaces: WG04L03557)			Immediately	$ 86.67
	WG04L03556		Docking Port Ss				$ 11.43
	WG04L03555		Plate Detergent				$ 8.58
	WG04L05874		Gasket Sump Manifold   (Replaces: WG04L03501)				$ 59.53
	WG04L03240		Foam Diverter Front				$ 12.40
	WG04L02735		Enjoliveur				$ 18.81
	WG04A05119		Enjoliveur   (Replaces: WG04L02600)			Immediately	$ 78.24
	WG04F08971		Pulley Hinge   (Replaces: WG04L02581)				$ 5.72
	WG04A05119		Enjoliveur   (Replaces: WG04L02397)			Immediately	$ 78.24
	WG04F06984		Couvercle   (Replaces: WG04L02102)			Immediately	$ 17.15
	WG04A03460		Brkt Support Hinge Asm   (Replaces: WG04L02004)				$ 12.86
	WG04L01959		Arm Hinge Asm				$ 54.95
	WG04L01958		Arm Hinge Asm				$ 54.95
	WG04L01703		Gasket Vent				$ 14.02
	WG04L01634		Door Vent Seal			Immediately	$ 10.01
	WG03A02167		Arm Spray Upper Asm   (Replaces: WG04L01519)			Immediately	$ 88.31
	WG04A04003		Gasket Tub Ss   (Replaces: WG04F09561)			Immediately	$ 173.46
	WG04F09348		Adapter Conduit Asm				$ 69.82
	WG04F08200		Cable Asm				$ 27.16
	WG04A03669		Pump Drain Asm   (Replaces: WG04F07126)			Immediately	$ 275.37
	WG04F07119		Hose Fill				$ 15.72
	WG04F09348		Adapter Conduit Asm   (Replaces: WG04F07027)				$ 69.82
	WG04F07026		Sump Manifold				$ 64.85
	WG04F07006		Striker Latch				$ 8.58
	WG04F06993		Silicone Light Pipe				$ 70.96
	WG04F06987		Conduit Main Asm				$ 54.40
	WG04F06984		Vent - Dark Grey			Immediately	$ 17.15
	WG04A04003		Gasket Tub   (Replaces: WG04F06951)			Immediately	$ 173.46
	WG04F06950		Seal Conduit				$ 8.58
	WG04F06733		Striker Adapter				$ 10.32
	WG04F06701		Assemblage				$ 61.04
	WG04F05895		Event Du Ventilateur				$ 66.75
	WG04F09808		Valve Water Asm   (Replaces: WG04F05891)			Immediately	$ 71.75
	WG04F09808		Valve Water Asm   (Replaces: WG04F05890)			Immediately	$ 71.75
	WG04F04857		Switch Flood Asm   (Replaces: WG04F05653)			Immediately	$ 90.18
	WG04F05595		Assemblage				$ 45.83
	WG04A03669		P2a Drain Pump Kit   (Replaces: WG04F05383)			Immediately	$ 275.37
	WG04A03757		Control Board Main Good   (Replaces: WG04F05128)				$ 224.72
	WG04F05114		Console Top Control				$ 54.95
	WG04F04857		Switch Flood Asm			Immediately	$ 90.18
	WG04F04726		Latch			Immediately	$ 62.96
	WG04F04678		Hose Wash Pump Inlet				$ 16.35
	WG04F04671		Boyau			Immediately	$ 68.67
	WG04A05153		Element Heating Asm   (Replaces: WG04F04624)			Immediately	$ 156.51
	WG04F04609		Drain Tube Asm			Immediately	$ 38.64
	WG04F04559		Conduit Asm				$ 61.55
	WG04F04517		Cable Asm Pulley			Immediately	$ 17.15
	WG04F00462		Funnel & Gasket Assy				$ 15.72
	WW01F03176		Detergent Module Kit   (Replaces: WG04A03376)			Immediately	$ 86.67
	WG04A03030		Porte Interieure Fuite Kit				$ 236.72
	WG04A03389		Ss Tub Gasket & Hinge Kit   (Replaces: WG04A02934)				$ 157.06
	WG04A01461		Ens. Contre Porte Asm.   (Replaces: WG04A02903)			Immediately	$ 167.27
	WG04A02646		Active Diverter Asm Kit				$ 137.34
	WG04F10015		Diverter Hose & Clamp Kit   (Replaces: WG04A02645)				$ 24.30
	WG01F08006		Ens. Service Interface   (Replaces: WG04A02631)				$ 211.73
	WS01F00759		Block Insulation			Immediately	$ 4.48
	WG04A02447		Fdt Clip Tier Rk Lt				$ 7.99
	WG04A02383		Ressort Porte			Immediately	$ 15.72
	WG04A02369		Vis				$ 7.16
	WG04A02187		Attach Strip				$ 18.59
	WG04A02180		Attach Strip			Immediately	$ 11.44
	WG04A02147		Scr 10-32 Gx Hxw 3/8				$ 3.57
	WG04A01519		Pulley Screw				$ 5.72
	WG04A01462		Kit Door Inner Asm				$ 223.57
	WG04A01455		Kit Door Asm Outer				$ 294.36
	WG04A01338		Pompe				$ 200.56
	WG01A01653		Toe Kick Asm Bb   (Replaces: WG04A01322)			Immediately	$ 40.72
	WG04A01237		Screw				$ 3.57
	WG04A01161		Kit-strik. Latch & Screw				$ 10.54
	WG04A01134		Attache			Immediately	$ 19.67
	WG04A01085		Diverter Asm Kit			Immediately	$ 60.12
	WG04A01079		Ct Screw Asm			Immediately	$ 30.02
	WG04A03280		Bracket Countertop   (Replaces: WG04A01050)			Immediately	$ 27.68
	WG04A01013		Badge Ge Asm				$ 21.44
	WG04A00176		Screw				$ 3.57
	WG04A03389		Ens. Service Porte Fermeture   (Replaces: WG03A02201)				$ 157.06
	WG03A02167		Upper Spray Arm Kit			Immediately	$ 88.31
	WG04A02448		Fdt Clip Tier Rk Rt				$ 7.99
	WG04L06311		Cover Console Asm Iml   (Replaces: WG04L04121)				$ 122.66
	WG04L06024		Gasket Tub   (Replaces: WG04L04120)			Immediately	$ 82.96
	WG04L03829		Inner Rail Upr Rack Asm			Immediately	$ 79.34
	WG04L03828		Brace Door Asm				$ 60.74
	WG04L03772		Fdt Coated Lower Rack				$ 22.62
	WG04L03770		Panier Inf. Asm. Complete				$ 124.60
	WG04L03764		Basket Silverware Asm				$ 120.59
	WG04L03608		Side Blaster Asm		Appelez-nous	-
	WG04F09824		Arm Spray Lower Asm   (Replaces: WG04L03604)				$ 76.28
	WG04L03602		Arm Spray Mid Asm				$ 75.41
