SELECT A DIAGRAM

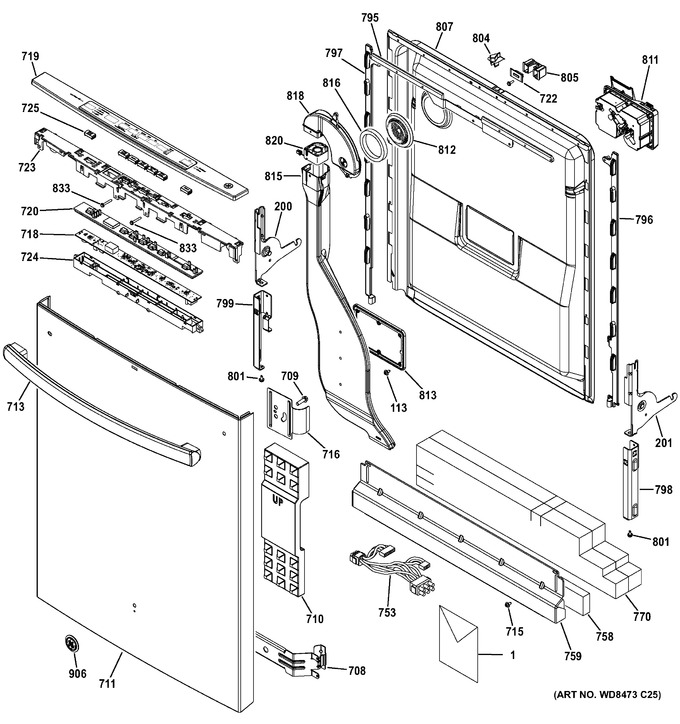

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Sump & Filter Assembly


6 - Sump & Motor Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-55085		Pm Owners Manual		Appelez-nous	-
1	31-30643		Pm Mini-manual		Appelez-nous	-
1	31-31512		Pm Install Instructions		Appelez-nous	-
1	WD02X10211		Scr 1/4-20 Bt Cb .563 Zn		Appelez-nous	-
200	WG04L01959		Arm Hinge Asm   (Replaces: WD14X20129)				$ 61.06
201	WG04L01958		Arm Hinge Asm Rh   (Replaces: WD14X20128)				$ 61.06
708	WD30X10045		Brace Door Asm		Appelez-nous	-
709	WH02X10123		Screw 1/4-20 Tpt 1h 1/2		Appelez-nous	-
710	WD01X10585		Block Foam Door		Appelez-nous	-
711	WG04A01454		Kit Door Asm Outer   (Replaces: WD34X20469)				$ 246.49
713	WD09X10101		Door Handle Asm		Appelez-nous	-
715	WG04A02147		Scr 10-32 Gx Hxw 3/8   (Replaces: WD02X10220)				$ 3.97
716	WD01X20135		Bracket Handle		Appelez-nous	-
718	WG04F10218		Kit Svc Ui Top Logic   (Replaces: WD21X10553)				$ 199.24
719	WG04F05026		Bezel & Cvr Console Asm   (Replaces: WD34X20210)				$ 480.92
720	WD12X20185		Silicone Light Pipe		Appelez-nous	-
722	WD09X20066		Lens And Adhesive Asm		Appelez-nous	-
723	WG04F05111		Console Top Control   (Replaces: WD12X20184)				$ 27.00
724	WD12X10470		Housing Bottom		Appelez-nous	-
725	WD09X20183		Button And Graphics Asm		Appelez-nous	-
753	WD21X20149		Harness Asm Door		Appelez-nous	-
758	WD01X10581		Insulation Toe Kick		Appelez-nous	-
759	WD27X10392		Toe Kick Painted Asm		Appelez-nous	-
770	WD01X10629		Barrier Toekick		Appelez-nous	-
795	WD01X10639		Attachment Strip Top		Appelez-nous	-
796	WG04A02180		Attach Strip   (Replaces: WD01X10633)			Immediately	$ 12.71
797	WG04A02187		Attach Strip   (Replaces: WD01X10634)				$ 20.65
798	WG04A03460		Brkt Support Hinge Asm   (Replaces: WD01X20126)				$ 14.29
799	WG04A03459		Brkt Support Hinge Asm   (Replaces: WD01X20127)				$ 14.29
801	WG04A00176		Screw 8-16 Hxw 1/2 Ss   (Replaces: WD02X10067)				$ 3.97
804	WG04F06693		Striker Latch   (Replaces: WD13X10071)			Immediately	$ 9.53
805	WD13X10068		Striker Adapter		Appelez-nous	-
807	WD31X20491		Kit Door Inner Asm		Appelez-nous	-
811	WD12X20247		Module Detergent		Appelez-nous	-
812	WD12X10450		Cover Vent		Appelez-nous	-
813	WD12X10462		Plate Detergent		Appelez-nous	-
815	WG04F06701		Diverter Air Asm   (Replaces: WD12X10425)				$ 67.82
816	WG04L01634		Door Vent Seal   (Replaces: WD08X10092)			Immediately	$ 11.12
818	WG04L03240		Foam Diverter Front   (Replaces: WD12X10428)				$ 12.40
820	WG04F05895		Vent Fan Asm   (Replaces: WD24X20256)				$ 74.17
833	WD02X20140		Scr 10-16 Pl Pnt 2.25 S		Appelez-nous	-
906	WG04A01013		Badge Ge Asm   (Replaces: WR04X10181)				$ 23.82

    View Diagram in Separate Window       Print Part List
