SELECT A DIAGRAM
1 - Escutcheon & Door Assembly
2 - Body Parts
3 - Upper Rack Assembly
4 - Lower Rack Assembly
5 - Sump & Filter Assembly

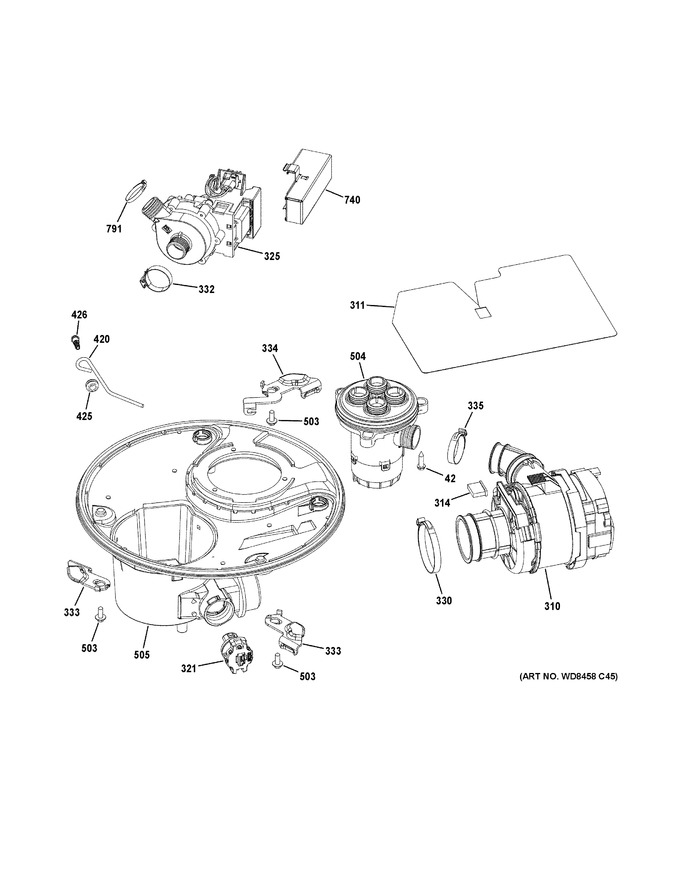

6 - Sump & Motor Mechanism
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 42 | WD02X22736 | Scr10 - 16 Ab Hxw 3/4 Ss |
|
- | |||||
| 310 | WG04A01811 | Pump Variable Wash Asm (Replaces: WD26X20213) |
|
Immediately | $ 302.98 | ||||
| 311 | WD01X20212 | Shield Pump Main |
|
- | |||||
| 314 | WD01X22890 | Grommet Isolator |
|
- | |||||
| 321 | WD21X22598 | Sensor Turbidity Asm |
|
- | |||||
| 325 | WG04A03669 | Pump Drain Asm (Replaces: WD26X20104) |
|
Immediately | $ 305.97 | ||||
| 330 | WD01X20302 | Clamp |
|
- | |||||
| 332 | WD01X10573 | Clamp |
|
- | |||||
| 333 | WD01X10632 | Latch Cam |
|
- | |||||
| 334 | WD01X10575 | Latch Cam |
|
- | |||||
| 335 | WD01X10572 | Clamp |
|
- | |||||
| 420 | WD01X10579 | Hanger Drain Pump |
|
- | |||||
| 425 | WD01X10101 | Grommet |
|
- | |||||
| 426 | WD02X22781 | Scr 10-18 X 5/8 |
|
- | |||||
| 503 | WB01T10103 | Scr 10-16 Ab Hxw .532 |
|
- | |||||
| 504 | WD18X20214 | Diverter Active Asm |
|
- | |||||
| 505 | WD18X10055 | Sump Manifold |
|
- | |||||
| 740 | WD01X10584 | Shield Drain Pump |
|
- | |||||
| 791 | WW01A00722 | Clamp (Replaces: WD01X10611) |
|
$ 12.71 | |||||
| WG04L01634 | Door Vent Seal |
|
Immediately | $ 11.12 | |||||
| WG04L01578 | Cover Junction Box |
|
Immediately | $ 44.46 | |||||
| WG04A03929 | Bezel & Cvr Console Asm (Replaces: WG04F09632) |
|
$ 181.87 | ||||||
| WG04F08195 | Inverter Asm Dish Pump (Replaces: WG04F08112) |
|
$ 250.95 | ||||||
| WG04F07409 | Sensor Leak Pan |
|
$ 14.29 | ||||||
| WG04F07159 | Insulation Tub Lip |
|
Immediately | $ 68.39 | |||||
| WG04F07079 | Silicone Light Pipe |
|
$ 78.84 | ||||||
| WG04F07050 | Main Pcb |
|
$ 137.70 | ||||||
| WG04F10397 | Dﾃ#riveur (Replaces: WG04F07029) |
|
$ 152.60 | ||||||
| WG04F07026 | Sump Manifold |
|
$ 72.06 | ||||||
| WG04F06996 | Conduit Mid Blaster Asm |
|
$ 52.50 | ||||||
| WG04F06993 | Silicone Light Pipe |
|
Immediately | $ 78.84 | |||||
| WG04F06987 | Conduit Main Asm |
|
$ 60.44 | ||||||
| WG04F06762 | Insulation Tub Blanket |
|
$ 131.95 | ||||||
| WG04F06733 | Striker Adapter |
|
$ 10.32 | ||||||
| WG04F06701 | Diverter Air Asm |
|
$ 67.82 | ||||||
| WG04F06693 | Striker Latch |
|
Immediately | $ 9.53 | |||||
| WG04F05895 | Vent Fan Asm |
|
$ 74.17 | ||||||
| WG04F09808 | Valve Water Asm (Replaces: WG04F05890) |
|
Immediately | $ 79.72 | |||||
| WG04F04857 | Switch Flood Asm (Replaces: WG04F05653) |
|
Immediately | $ 100.20 | |||||
| WG04F05386 | Harness Asm Ac |
|
$ 141.73 | ||||||
| WG04A03669 | P2a Drain Pump Kit (Replaces: WG04F05383) |
|
Immediately | $ 305.97 | |||||
| WG04F05112 | Console Et Couvercle |
|
Immediately | $ 57.25 | |||||
| WG04F05061 | Console - White |
|
$ 61.70 | ||||||
| WG04F05027 | Bezel & Cvr Console Asm |
|
$ 131.93 | ||||||
| WG04F04857 | Switch Flood Asm |
|
Immediately | $ 100.20 | |||||
| WG04A05239 | Module Detergent (Replaces: WG04F04754) |
|
Immediately | $ 108.73 | |||||
| WG04F04726 | Latch Tub Side Standard |
|
Immediately | $ 69.95 | |||||
| WG04F04671 | Boyau |
|
Immediately | $ 76.30 | |||||
| WG04F04609 | Drain Tube Asm |
|
Immediately | $ 42.93 | |||||
| WG04F04559 | Conduit Tiered Blast Asm |
|
$ 68.39 | ||||||
| WG04A03389 | Svr- Door Closing Kit |
|
$ 174.51 | ||||||
| WG04A03072 | Ens. P2b Pompe Degrivage |
|
$ 165.31 | ||||||
| WG04A03030 | Tc Inner Door Leak Kit |
|
$ 236.72 | ||||||
| WG04A03008 | Kit-serv Machine Control |
|
$ 279.32 | ||||||
| WG04A03389 | Ss Tub Gasket & Hinge Kit (Replaces: WG04A02934) |
|
$ 174.51 | ||||||
| WG04A01461 | Ens. Contre Porte Asm. (Replaces: WG04A02903) |
|
Immediately | $ 185.86 | |||||
| WW01A00002 | Clamp |
|
$ 4.31 | ||||||
| WG01F08400 | Service Kit Upper Rack (Replaces: WG04A02639) |
|
$ 238.23 | ||||||
| WG04A02633 | Ens. Interface Service |
|
$ 288.03 | ||||||
| WG04A02187 | Attach Strip |
|
$ 20.65 | ||||||
| WG04A02180 | Attach Strip |
|
Immediately | $ 12.71 | |||||
| WG04A01811 | Variable Speed Pump Kit |
|
Immediately | $ 302.98 | |||||
| WG04A01462 | Kit Door Inner Asm |
|
$ 248.41 | ||||||
| WG04A01453 | Kit Door Asm Outer |
|
$ 208.03 | ||||||
| WG01A01653 | Assemblage (Replaces: WG04A01322) |
|
Immediately | $ 45.24 | |||||
| WG01A01600 | Vis (Replaces: WG04A01265) |
|
Immediately | $ 9.53 | |||||
| WG04A01134 | Clamp |
|
Immediately | $ 21.85 | |||||
| WG04A03280 | Bracket Countertop (Replaces: WG04A01050) |
|
Immediately | $ 30.76 | |||||
| WG04A01013 | Plaque Marque |
|
$ 23.82 | ||||||
| WG03F05718 | Vitrine (Replaces: WG03F01781) |
|
$ 216.63 | ||||||
| WG03F09235 | Tableau Serigraphie Asm. (Replaces: WG03F01780) |
|
$ 604.07 | ||||||
| WG04F10015 | Boyau Asm. Ens. (Replaces: WG04A02645) |
|
$ 27.00 | ||||||
| WG04L06024 | Gasket Tub Plastic (Replaces: WG04L05410) |
|
Immediately | $ 92.18 | |||||
| WG01F06090 | Fill Elbow (Replaces: WG04L04123) |
|
$ 15.88 | ||||||
| WG04L04122 | Pan Leak |
|
$ 40.47 | ||||||
| WG04L06024 | Gasket Tub (Replaces: WG04L04120) |
|
Immediately | $ 92.18 | |||||
| WG04L03831 | Third Rack Wire Coated |
|
$ 73.33 | ||||||
| WG04L03829 | Inner Rail Upr Rack Asm |
|
Immediately | $ 88.15 | |||||
| WG04L03607 | Arm Spray Middle Asm |
|
$ 91.71 | ||||||
| WG04L03600 | Arm Spray Lower Asm |
|
$ 65.70 | ||||||
| WW01F03176 | Module Detergent (Replaces: WG04L03557) |
|
Immediately | $ 96.30 | |||||
| WG04L03513 | Button And Graphics Asm |
|
$ 73.96 | ||||||
| WG04L05874 | Gasket Sump Manifold (Replaces: WG04L03501) |
|
$ 66.14 | ||||||
| WG04L03242 | Side Blaster Asm |
|
$ 34.94 | ||||||
| WG04L03240 | Foam Diverter Front |
|
$ 12.40 | ||||||
| WG04L03200 | Dishwasher Middle Spray Arm Assembly |
|
$ 70.18 | ||||||
| WG04L03119 | Door Gasket |
|
$ 14.55 | ||||||
| WG04L02735 | Enjoliveur |
|
$ 18.81 | ||||||
| WG04L02133 | Door Handle Asm |
|
$ 134.66 | ||||||
| WG04L01703 | Gasket Vent |
|
$ 14.02 |
