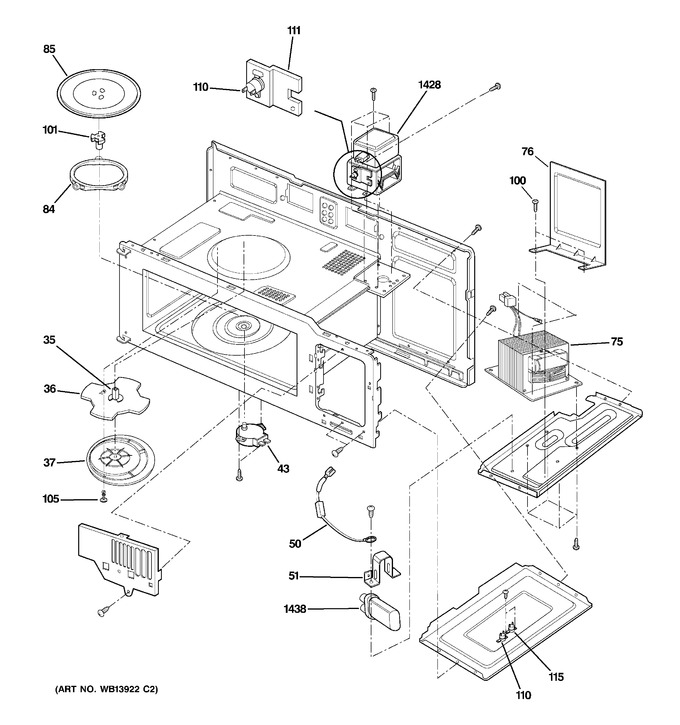

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 35 | WB02X11261 | Holder Stirrer Fan |
|
- | |||||
| 36 | WB06X10706 | Fan |
|
- | |||||
| 37 | WB06X10712 | Cover Stirrer Fan |
|
$ 29.65 | |||||
| 43 | WB26X10240 | Motor(circ),synchronous |
|
- | |||||
| 50 | WB18X10449 | Cable, Diode |
|
- | |||||
| 51 | WB06X10561 | Bracket,capacitor |
|
- | |||||
| 75 | WB20X10046 | Transformer.h.v |
|
- | |||||
| 76 | WB02X11340 | Hvt Bracket Asm |
|
- | |||||
| 84 | WB06X10705 | Rotating Ring Asm |
|
- | |||||
| 85 | WB49X10225 | Tray, Glass |
|
- | |||||
| 100 | WB02X10745 | Screw - Binding Head |
|
- | |||||
| 101 | WB06X10704 | Shaft Turntable |
|
- | |||||
| 105 | WB01X10055 | Rivet Assy All |
|
- | |||||
| 110 | WB27X11100 | Thermostat |
|
- | |||||
| 111 | WB06X10570 | Bracket,misc |
|
- | |||||
| 115 | WB27X11097 | Thermostat |
|
- | |||||
| 1428 | WB27X10927 | Magnetron |
|
- | |||||
| 1438 | WB27X11096 | Capacitor H.v |
|
- |
