SELECT A DIAGRAM

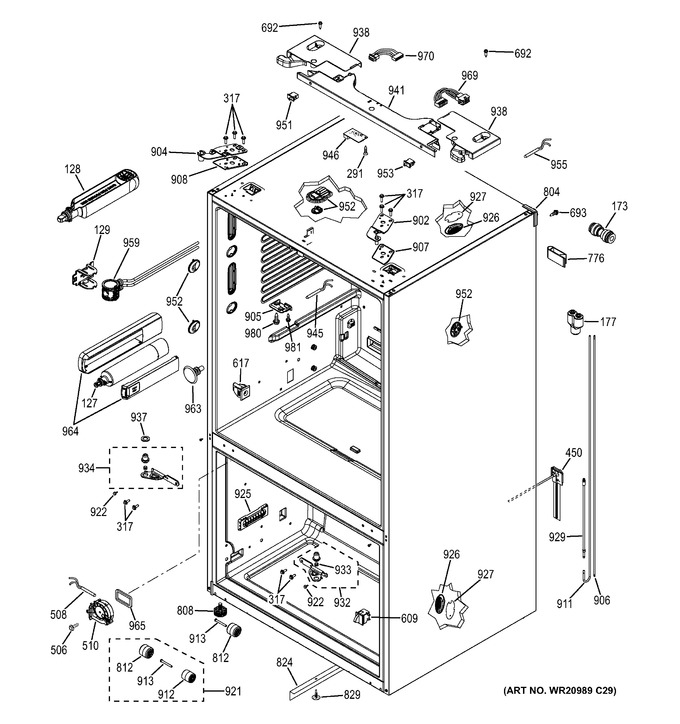

10 - Case Parts


1 - Dispenser Door


2 - Machine Compartment


3 - Freezer Door


4 - Fresh Food Door - Rh


5 - Freezer Section


6 - Freezer Shelves


7 - Ice Maker & Dispenser


8 - Fresh Food Section


9 - Fresh Food Shelves


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
127	PMRPWFE		Refrigeration Water Filt   (Replaces: RPWF)				$ 84.14
128	WR17X13068		Plug Bypass Asm Pn55-681		Appelez-nous	-
129	WR17X13069		Brkt Filter Manifold		Appelez-nous	-
173	WR02X13738		Coupler Straight 1/4		Appelez-nous	-
177	WR02X13740		Coupler 1/4 Y		Appelez-nous	-
291	WR01X10649		Scr 8-10 Pl Pnp 1/2 S		Appelez-nous	-
317	WR01X11049		Scr 1/4-20 Hxw 7/8 S		Appelez-nous	-
450	WR02X20621		Tube Fz Im Fill Htr Asm		Appelez-nous	-
506	WG04A00176		Screw 8-16 Hxw 1/2 Ss   (Replaces: WD02X10067)				$ 3.97
508	WR55X11151		Sensor Temperature		Appelez-nous	-
510	WR60X10342		Fan Motor Im Asm / Senso				$ 138.51
609	WG03F09086		Switch Light   (Replaces: WR23X10143)			Immediately	$ 11.12
617	WR2X8349		Grommet Scr Closed		Appelez-nous	-
692	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
693	WR01X10593		Scr 8-18 Ab Ihxw 3/4 S		Appelez-nous	-
776	WG03A00749		Clamp Tube   (Replaces: WR02X10522)				$ 9.25
804	WR02X13759		Cap Case Corner Asm Dgy		Appelez-nous	-
808	WR01X11046		Screw Leveling Asm		Appelez-nous	-
812	WR02X13616		Wheel Overmold Asm Front		Appelez-nous	-
824	WR17X13096		Baffle Air Highside		Appelez-nous	-
829	WR01A00517		Beauty Button-wht   (Replaces: WR2X8693)				$ 4.37
902	WR13X10974		Hinge Top Pin Asm Rh		Appelez-nous	-
904	WR13X10975		Hinge Top Pin Asm Lh		Appelez-nous	-
905	WR02X13716		Striker Top Mullion		Appelez-nous	-
906	WR02X13699		Tube Pex Mc Valve		Appelez-nous	-
907	WR02X13717		Pad Top Hinge Asm Rh		Appelez-nous	-
908	WR02X13718		Pad Top Hinge Asm Lh		Appelez-nous	-
911	WR02X13673		Tubing Pex 55.3 In		Appelez-nous	-
912	WR02X13685		Wheel		Appelez-nous	-
913	WR01X11008		Axle Wheel		Appelez-nous	-
921	WR49X10268		Front/rear Wheel & Axle		Appelez-nous	-
922	WR01X11038		Scr8-32 Tt Pnt 5/8s		Appelez-nous	-
925	WR02X13623		Louver Duct Im Return Fz		Appelez-nous	-
926	WG03F02951		Grille Thermistor   (Replaces: WR02X13729)				$ 6.09
927	WR01X11066		Shunt Sensor		Appelez-nous	-
929	WR02X13774		Tube Lead		Appelez-nous	-
932	WR13X10976		Hinge Center Asm Rh		Appelez-nous	-
933	WR01X11016		Screw Hinge Ctr Adj		Appelez-nous	-
934	WG03L05321		Hinge Center Asm Lh   (Replaces: WR13X10982)				$ 68.68
937	WG03A00275		Washer Hinge Center Lh   (Replaces: WR01X11047)			Immediately	$ 9.53
938	WR17X20164		Hinge Endcap Asm Dgy		Appelez-nous	-
941	WR17X13217		Top Cover Middle Dgy		Appelez-nous	-
945	WR55X11150		Sensor Temperature		Appelez-nous	-
946	WR55X11145		Pcb Asm Zigbee Hum Mod		Appelez-nous	-
951	WR23X10749		Switch Light Ff		Appelez-nous	-
952	WG03L00855		Cover Led Asm, Ff   (Replaces: WR55X11132)			Immediately	$ 76.82
953	WR23X10750		Switch Light Ff		Appelez-nous	-
955	WR55X11153		Sensor Temperature		Appelez-nous	-
959	WG03F03829		Filter Manifold   (Replaces: WR02X13684)			Immediately	$ 127.19
963	WR02X13760		Grommet Ff Liner		Appelez-nous	-
964	WR02X13773		Cover Filter Asm		Appelez-nous	-
965	WR14X10384		Gasket Duct Fan Im		Appelez-nous	-
969	WR23X10776		Harness Door Switch Ac		Appelez-nous	-
970	WR23X10777		Harness Door Case		Appelez-nous	-
980	WR01X11060		Scr 8-18 Ab Hxwp 9/16s		Appelez-nous	-
981	WR01X11065		Scr 8-18 Ab Flp 3/4 S Zn		Appelez-nous	-
