SELECT A DIAGRAM

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Sump & Filter Assembly

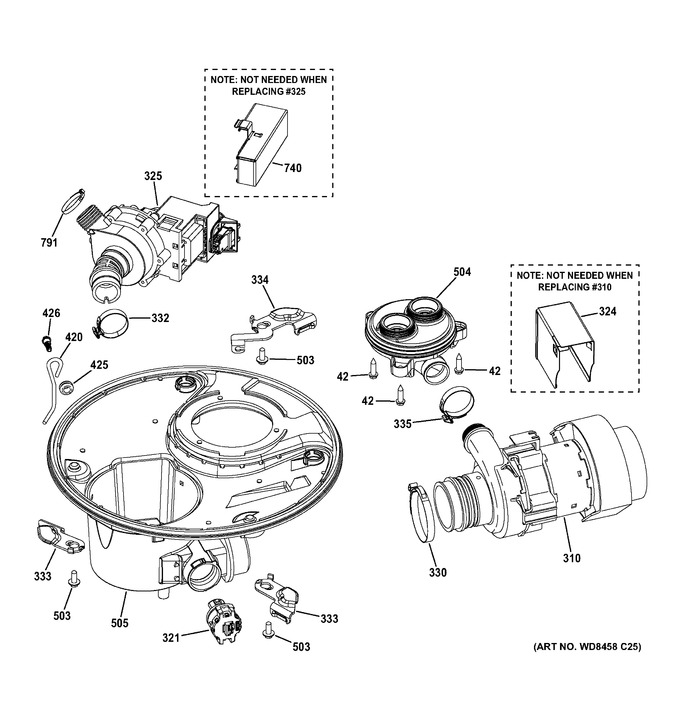

6 - Sump & Motor Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
42	WD02X10110		Screw #8-3/4 L Hx Hd Ss		Appelez-nous	-
310	WD35X10385		Wash Pump Kit		Appelez-nous	-
321	WG04F05595		Sensor Turbidity Asm   (Replaces: WD21X10494)				$ 50.92
324	WD01X10580		Shield Wash Pump		Appelez-nous	-
325	WG04F12108		Pump Drain Kit   (Replaces: WD35X20553)			Immediately	$ 208.41
330	WG04A01134		Clamp   (Replaces: WD01X10571)			Immediately	$ 21.85
332	WD01X10573		Clamp		Appelez-nous	-
333	WD01X10632		Latch Cam		Appelez-nous	-
334	WD01X10575		Latch Cam		Appelez-nous	-
335	WD01X10572		Clamp		Appelez-nous	-
420	WD01X10579		Hanger Drain Pump		Appelez-nous	-
425	WD01X10101		Grommet		Appelez-nous	-
426	WD02X10094		Wd02x10093		Appelez-nous	-
503	WB01T10103		Scr 10-16 Ab Hxw .532		Appelez-nous	-
504	WD18X10052		Diverter Passive Asm		Appelez-nous	-
505	WG04F06743		Sump Manifold   (Replaces: WD18X10054)				$ 66.87
740	WD01X10584		Shield Drain Pump		Appelez-nous	-
791	WW01A00722		Clamp   (Replaces: WD01X10611)				$ 12.71
	WG04A01338		Wash Pump Kit				$ 200.56
	WG04F12108		Pump Drain Kit   (Replaces: WG04A02642)			Immediately	$ 208.41
	WG04A03393		Board Main Control   (Replaces: WG04F04510)				$ 222.56
	WG04F04555		Conduit Mid Asm				$ 47.15
	WG04F04857		Interrupteur Asm			Immediately	$ 100.20
	WG04F11770		Valve Water Asm   (Replaces: WG04F05889)			Immediately	$ 76.30
	WG04A01160		Assemblage Bras Gicleur				$ 83.84
	WG04L01637		End Cap				$ 6.35

    View Diagram in Separate Window       Print Part List
