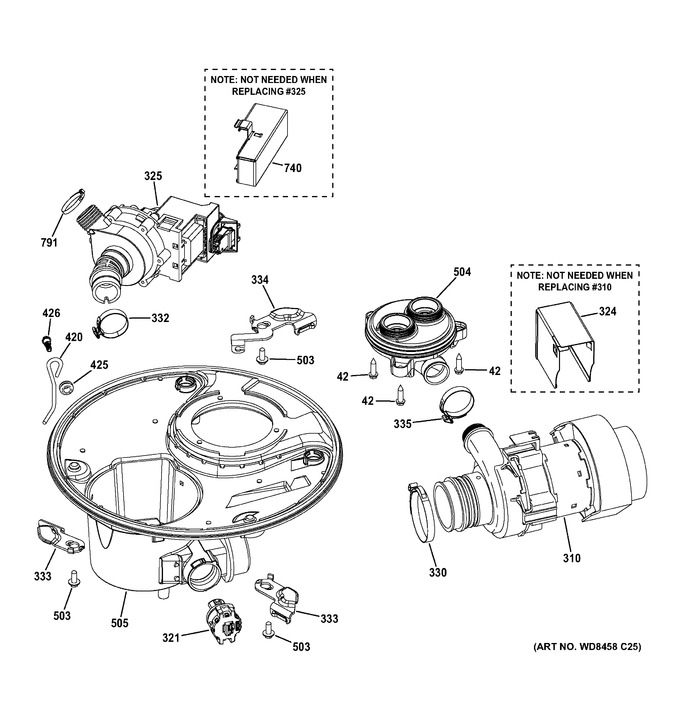

SELECT A DIAGRAM

1 - Escutcheon & Door Assembly


2 - Body Parts


3 - Upper Rack Assembly


4 - Lower Rack Assembly


5 - Sump & Filter Assembly


6 - Sump & Motor Mechanism


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
42	WD02X10110		Screw #8-3/4 L Hx Hd Ss		Appelez-nous	-
310	WD35X10385		Wash Pump Kit		Appelez-nous	-
321	WG04F05595		Sensor Turbidity Asm   (Replaces: WD21X10494)				$ 50.92
324	WD01X10580		Shield Wash Pump		Appelez-nous	-
325	WG04F12108		Pump Drain Kit   (Replaces: WD35X20553)			Immediately	$ 208.41
325	WG04F12108		Pump Drain   (Replaces: WD26X20423)			Immediately	$ 208.41
330	WG04A01134		Clamp   (Replaces: WD01X10571)			Immediately	$ 21.85
332	WD01X10573		Clamp		Appelez-nous	-
333	WD01X10632		Latch Cam		Appelez-nous	-
334	WD01X10575		Latch Cam		Appelez-nous	-
335	WD01X10572		Clamp		Appelez-nous	-
420	WD01X10579		Hanger Drain Pump		Appelez-nous	-
425	WD01X10101		Grommet		Appelez-nous	-
426	WD02X10094		Wd02x10093		Appelez-nous	-
503	WB01T10103		Scr 10-16 Ab Hxw .532		Appelez-nous	-
504	WD18X10052		Diverter Passive Asm		Appelez-nous	-
505	WG04F06743		Sump Manifold   (Replaces: WD18X10054)				$ 66.87
740	WD01X10584		Shield Drain Pump		Appelez-nous	-
791	WW01A00722		Clamp   (Replaces: WD01X10611)				$ 12.71
	WG04F10705		P1 Pump Drain Kit   (Replaces: WG04F06725)				$ 291.00
	WG04F06693		Striker Latch			Immediately	$ 9.53
	WG04F11770		Valve Water Asm   (Replaces: WG04F05889)			Immediately	$ 76.30
	WG04F05595		Assemblage				$ 50.92
	WG04F04857		Interrupteur Asm			Immediately	$ 100.20
	WG04A05239		Module Detergent   (Replaces: WG04F04754)			Immediately	$ 108.73
	WG04F04726		Latch Tub Side Standard			Immediately	$ 69.95
	WG04F04671		Hose Elbow Drain			Immediately	$ 76.30
	WG04A05153		Element Heating Asm   (Replaces: WG04F04624)			Immediately	$ 173.90
	WG04F04609		Tube De Drainage			Immediately	$ 42.93
	WG04F09673		Console Cvr Graphic Asm   (Replaces: WG04F04562)			Immediately	$ 67.82
	WG04F04555		Assemblage				$ 47.15
	WG04F04517		Cable Asm Pulley			Immediately	$ 19.06
	WG04A03393		Board Main Control   (Replaces: WG04F04510)				$ 222.56
	WG04F04480		Adapter Conduit Asm				$ 68.68
	WG04A01461		Kit Door Inner Asm   (Replaces: WG04A02903)			Immediately	$ 185.86
	WG04F12108		Ens. Pompe De Vidange   (Replaces: WG04A02642)			Immediately	$ 208.41
	WG04A04452		Carrier Roller Lh   (Replaces: WG04A02174)			Immediately	$ 15.88
	WG04A01338		Wash Pump Kit				$ 200.56
	WG04L06024		Gasket Tub   (Replaces: WG04L04120)			Immediately	$ 92.18
	WG04A01134		Kit - Piranha Clamps Ps			Immediately	$ 21.85
	WG04F12108		Drain Pump Kit   (Replaces: WG04A01093)			Immediately	$ 208.41
	WG04A01085		Diverter Asm Kit			Immediately	$ 66.80
	WG04A03280		Bracket Countertop   (Replaces: WG04A01050)			Immediately	$ 30.76
	WG04A01013		Badge Ge Asm				$ 23.82
	WG04A01160		Assemblage Bras Gicleur				$ 83.84
	WG04L03827		Slide Rack				$ 27.82
	WG04L03757		Panier Inf. Asn, Complet				$ 113.56
	WG04L03283		Outer Door Top Ctrl Ss				$ 252.62
	WG04L03119		Door Gasket				$ 14.55
	WG04L03089		Funnel Fill				$ 17.03
	WG04L02133		Door Handle Asm				$ 134.66
	WG04A04452		Cover Roller Lh   (Replaces: WG04L02090)			Immediately	$ 15.88
	WG04L01693		Gasket Fill Funnel				$ 13.61
	WG04L01637		End Cap				$ 6.35
	WG04L01634		Door Vent Seal			Immediately	$ 11.12
	WG03A02167		Arm Spray Upper Asm   (Replaces: WG04L01519)			Immediately	$ 98.12
	WG04F11770		Valve Eau Asm   (Replaces: WG04F09310)			Immediately	$ 76.30
	WG04A05239		Module Detergent   (Replaces: WG04F09253)			Immediately	$ 108.73
	WG04F08051		Service Dry Performance				$ 292.66
	WG04A05153		Element Heating Asm.   (Replaces: WG04F08050)			Immediately	$ 173.90
	WG04F07745		Interface				$ 194.10
	WG04F06762		Insulation Tub Blanket				$ 131.95
	WG04F06733		Striker Adapter				$ 10.32

    View Diagram in Separate Window       Print Part List
