SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door - Lh


3 - Fresh Food Door - Rh


4 - Freezer Section


5 - Freezer Shelves


6 - Fresh Food Section


7 - Fresh Food Shelves


8 - Case Parts

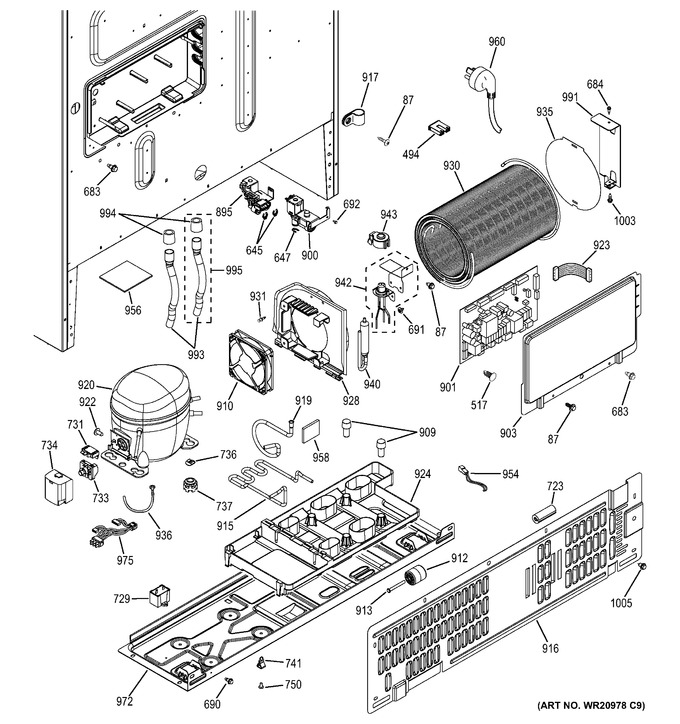

9 - Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
87	WR01A00683		Scr 8-18 Ab Ihxw 9/16 S   (Replaces: WR01X10588)				$ 3.97
494	WD1X1459		Insulator Hsng Term		Appelez-nous	-
517	WR01X11050		Fastener Push		Appelez-nous	-
645	WR01X11020		Clip Connector 1/4		Appelez-nous	-
647	WR01X11041		Quick Clip Connector 1/4		Appelez-nous	-
683	WR01X10602		Scr 8-32 Ab Ihws 3/8 S		Appelez-nous	-
684	WR01X10635		Scr 8-32 Ca Ihxw .625 S		Appelez-nous	-
690	WZ05X0158		Screw 8-32x3/8 Grd Scr		Appelez-nous	-
691	WR01X10897		Scr 12-24tt Bht20 .700 S		Appelez-nous	-
692	WZ04X0416		Scr 8-18 Ab Hxw 3/4		Appelez-nous	-
723	WR14X10055		Grommet Tubing Slit		Appelez-nous	-
729	WR01F02043		Capacitor   (Replaces: WR62X79)			Immediately	$ 17.17
731	WR08X10135		Overload		Appelez-nous	-
733	WR07X10083		Relay Start		Appelez-nous	-
734	WR02X10556		Cover Relay Snap (mei)		Appelez-nous	-
736	WR2X8583		Clip Comp Mtng		Appelez-nous	-
737	WR02X13728		Grommet Compressor		Appelez-nous	-
741	WR1X1779		Stud Mtg Compr		Appelez-nous	-
750	WR1X1786		Scr 10-32 Tr 1/2		Appelez-nous	-
895	WR55X11146		Valve Im Water Asm		Appelez-nous	-
900	WG03F01801		Valve Water Iso Asm   (Replaces: WR55X11128)				$ 79.46
901	WR55X20652		Board Asm Main Control		Appelez-nous	-
903	WR02X13714		Cover Mainboard		Appelez-nous	-
909	WR02X13668		Support Condenser		Appelez-nous	-
910	WR60X10358		Fan Condenser Dc		Appelez-nous	-
912	WR02X13685		Wheel		Appelez-nous	-
913	WR01X11008		Axle Wheel		Appelez-nous	-
915	WR84X10112		Jumper Comp Discharge		Appelez-nous	-
916	WR82X10127		Cover Access		Appelez-nous	-
917	WR01X11026		Clamp Tube		Appelez-nous	-
919	WR87X20008		Tube Suction Jumper		Appelez-nous	-
920	WG03F00133		Aasm Hi Side Wr87x10211   (Replaces: WR87X10211)			Immediately	$ 1,045.82
922	WR01X11037		Scr8-32 Tt Pnt 5/8s		Appelez-nous	-
923	WR23X10765		Harness Personality		Appelez-nous	-
924	WR32X10862		Pan Drain		Appelez-nous	-
928	WR17X13233		Plenum Condenser Fan Asm		Appelez-nous	-
930	WR84X10115		Condenser Asm Formed		Appelez-nous	-
931	WR01X11070		Plastic Rivet		Appelez-nous	-
935	WR17X13045		Baffle Cond Air		Appelez-nous	-
936	WR23X10748		Harness Ground		Appelez-nous	-
940	WR86X10089		Dryer Filter		Appelez-nous	-
942	WR86X10094		Valve Body Asm		Appelez-nous	-
943	WR86X10091		Coil 3 Way Valve		Appelez-nous	-
954	WR23X10768		Harness Doghouse		Appelez-nous	-
956	WR02X13713		Pad Mastic		Appelez-nous	-
958	WR02X13724		Mastic Sound Deadening		Appelez-nous	-
960	WG03F01799		Power Cord   (Replaces: WR23X10744)				$ 61.96
972	WR17X13128		Base Compressor		Appelez-nous	-
975	WR23X10764		Harness Jumper Hi Side		Appelez-nous	-
991	WR02X13622		Bracket Condenser		Appelez-nous	-
993	WR02X13710		Tube Trap Drain		Appelez-nous	-
994	WR01X11006		Check Valve		Appelez-nous	-
995	WR02X13772		Trap And Valve Asm		Appelez-nous	-
1003	WR01X10618		Scr 8-18 Tpt 1/4		Appelez-nous	-
1005	WR01X11072		Scr 1/4-20 Hxw 7/8 S		Appelez-nous	-
	WG03L05829		Door Asm Ff Bow Rh Ss				$ 548.37
	WG03A02699		Plug Bypass Asm   (Replaces: WG03F01787)			Immediately	$ 86.32
	WG03L05832		Porte De La Refrigerateur G.				$ 772.41
	WG03F01809		Striker Light Switch				$ 6.09
	WG03F03155		Ice Maker Asm				$ 168.92
	WG03F03829		Filter Manifold			Immediately	$ 127.19
	WR03F04698		Coupler Straight 1/4   (Replaces: WG03F03842)			Immediately	$ 16.97
	WG03F03913		Brkt Filter Manifold				$ 13.09
	WG03F04947		Filtro P/ Agua			Immediately	$ 101.21
	WG03F05740		Kit Actualizaciﾓn De Software + Vent.				$ 196.47
	WG03L07713		Knob Veg Pan   (Replaces: WG03L00849)				$ 12.40
	WG03L05406		Damper Slide Veg Pan				$ 9.76
	WG03L05550		Basket Fz Im Asm		Appelez-nous	-
	WG03L05582		Shelf Asm Tuckaway				$ 115.66
	WG03L05824		Door Foam Asm Ff Lh Nd				$ 742.86
	WG04A01013		Badge Ge Asm				$ 23.82

    View Diagram in Separate Window       Print Part List
