SELECT A DIAGRAM

10 - Case Parts


1 - Dispenser Door


2 - Machine Compartment


3 - Freezer Door


4 - Fresh Food Door - Rh


5 - Freezer Section


6 - Freezer Shelves

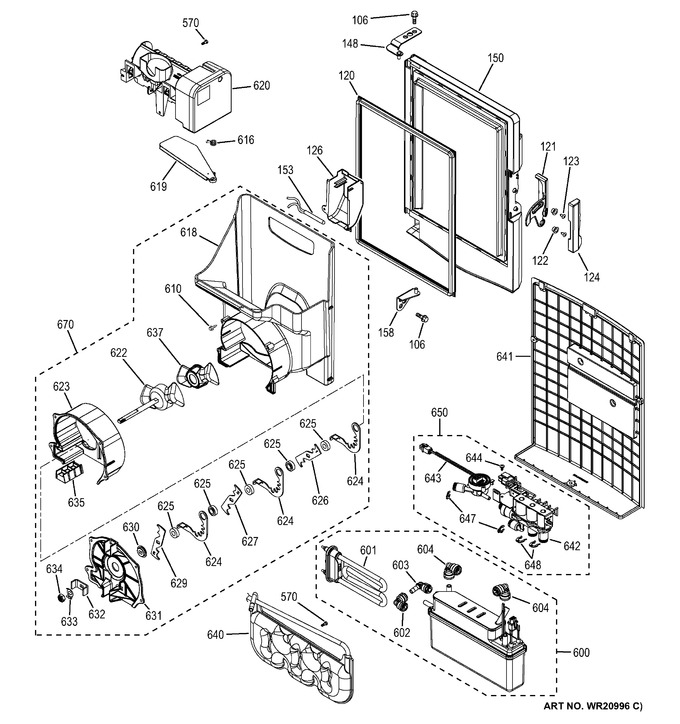

7 - Ice Maker & Dispenser


8 - Fresh Food Section


9 - Fresh Food Shelves


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
106	WR01X11054		Scr 8-18 Flp 1/2 S		Appelez-nous	-
120	WR24X10288		Gasket Icebox Door		Appelez-nous	-
121	WR11X10031		Latch Icebox Door		Appelez-nous	-
122	WR01X11015		Latch Bushing		Appelez-nous	-
123	WD02X10166		Scr 8-18 Ab Hw 1/2 Ss		Appelez-nous	-
124	WR02X13636		Cover Latch		Appelez-nous	-
126	WR17X13067		Cover Am Im Harness		Appelez-nous	-
148	WR13X10972		Hinge Top Door Icebox		Appelez-nous	-
150	WR78X12862		Ice Box Door Asm		Appelez-nous	-
153	WR55X11142		Sensor Temperature		Appelez-nous	-
158	WR13X10973		Hinge Bottom Door Icebox		Appelez-nous	-
570	WR1X1757		Scr 8-18 Hxw 1 1/4s		Appelez-nous	-
600	WG03F05985		Tank Hot Water Asm   (Replaces: WR17X13176)			Immediately	$ 325.19
601	WR51X10140		Heater Asm		Appelez-nous	-
602	WR02X13753		Connector 90 Deg 5/16 Ht		Appelez-nous	-
603	WR02X13754		Connector 5/16 Stem Ht		Appelez-nous	-
604	WR02X13755		Connector 90 3/8-5/16 Ht		Appelez-nous	-
610	WR01X11043		Boss Scr 10-14.5 1/2 Ice		Appelez-nous	-
616	WR29X10112		Spring Feeler Arm		Appelez-nous	-
618	WR29X20013		Bucket Ice		Appelez-nous	-
619	WR29X10110		Arm Feeler Im		Appelez-nous	-
620	WG03F07552		Ice Maker Asm-for Door   (Replaces: WR30X10160)			Immediately	$ 165.97
622	WR02X13642		Agitator Asm		Appelez-nous	-
623	WR17X13066		Housing Ice Crusher		Appelez-nous	-
624	WR02X13644		Blade Stationary		Appelez-nous	-
625	WR02X13654		Spacer Crusher		Appelez-nous	-
626	WR02X13650		Moving Blade Crusher		Appelez-nous	-
627	WR02X13651		Moving Blade Crusher		Appelez-nous	-
629	WR02X13652		Moving Blade Crusher		Appelez-nous	-
630	WR02X13653		Spacer Crusher End		Appelez-nous	-
631	WR29X20012		Cover Crusher		Appelez-nous	-
632	WR02X13643		Coupling Bucket		Appelez-nous	-
633	WR01X11018		Washer Lock		Appelez-nous	-
634	WR01X11025		Nylon Ins Locknut 3/8-24		Appelez-nous	-
635	WR02X13649		Holder Stationary Blade		Appelez-nous	-
637	WR02X13681		Insert Auger Agitator		Appelez-nous	-
640	WR17X13248		Tank Cold Water Asm		Appelez-nous	-
641	WR13X10989		Cover Valve And Tank Asm		Appelez-nous	-
642	WR57X10101		Valve Tri Water		Appelez-nous	-
643	WR57X10099		Flow Meter		Appelez-nous	-
644	WR01X11019		Scr M4x1.59 Mch P 10mm S		Appelez-nous	-
647	WR01X11041		Quick Clip Connector 1/4		Appelez-nous	-
648	WR01X11040		Quick Clip Conn 5/16		Appelez-nous	-
650	WG03F04073		Valve Tri Water W Fm Asm   (Replaces: WR57X10102)				$ 197.20
670	WR30X10174		Ice Bucket & Crusher		Appelez-nous	-
	WG03F06676		Fan Motor Dc Ff Evap   (Replaces: WG03F04082)			Immediately	$ 114.44
	WG03F04095		Bin Cond Rh Ff Asm				$ 112.55
	WG03F05740		Ap5 Sum Board Nidec Ff Fan Kit				$ 196.47
	WG03L11284		Door Foam Asm Flat Ff Lh   (Replaces: WG03L01749)				$ 766.47
	WG03L02112		Couvercle				$ 256.53
	WG03L05277		Handle Asm Ff				$ 136.22
	WG03L05321		Hinge Centre Asm Lh				$ 61.81
	WG03A00275		Washer Hinge Centre Lh / Shim			Immediately	$ 8.58
	WG03L05810		Ice Box Door Asm				$ 237.77
	WG03L11284		Door Foam Asm Flat Ff Lh   (Replaces: WG03L05834)				$ 766.47
	WG03L09920		Door Foam Asm Ff Rh   (Replaces: WG03L05835)				$ 674.60
	WG04A01013		Badge Ge Asm				$ 21.44
	WR01A00255		Attache De La Poignﾃ#e Ss			Immediately	$ 14.29
	WR01F01730		Sensor Temp Ff			Immediately	$ 14.66
	WG03L09792		Gasket Ff Dgy   (Replaces: WG03L05344)				$ 130.91
	WG03F01804		Thermostat Defrost Fz			Immediately	$ 30.02
	WG03F05123		Damper Fan Asm   (Replaces: WG03F01815)				$ 156.42
	WG03F09097		Fan Motor Im Asm /sensor   (Replaces: WG03F01820)			Immediately	$ 150.97
	WG03F06577		Display Asm   (Replaces: WG03F03760)				$ 186.94
	WG03F03828		Tubing Pex 55.3"				$ 14.72
	WG03F03931		Mullion Articulating Asm				$ 147.56
	WG03F06744		Boot Fan Ff   (Replaces: WG03F03998)			Immediately	$ 28.58
