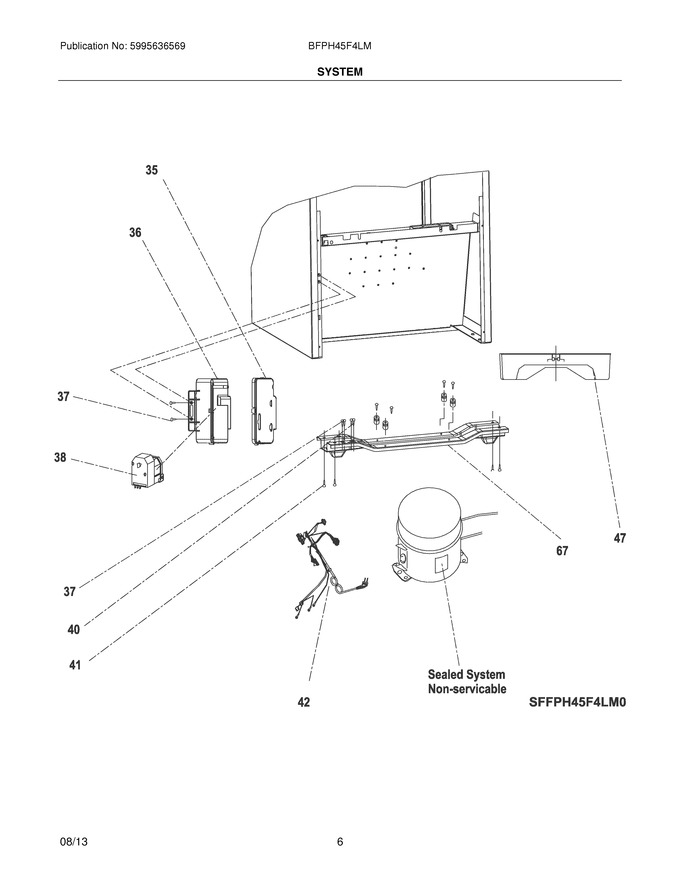

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 36 | 5304490981 | Cover,terminal Block |
|
- | |||||
| 37 | 5304491052 | Screw,(3) |
|
$ 4.96 | |||||
| 40 | 5304492671 | Screw,(2) |
|
- | |||||
| 41 | 5304492672 | Screw,(4) |
|
$ 7.09 | |||||
| 47 | 5304492673 | Drip Tray,evaporator |
|
- | |||||
| 67 | 5304492674 | Base Panel,compressor Mtg. |
|
- | |||||
| F35 | 5304490982 | Terminal Block,main |
|
$ 18.76 | |||||
| F38 | 5304470332 | Timer,defrost |
|
$ 162.90 | |||||
| F42 | 5304490983 | Power Cord,electric |
|
- |
