SELECT A DIAGRAM
01 - Cover

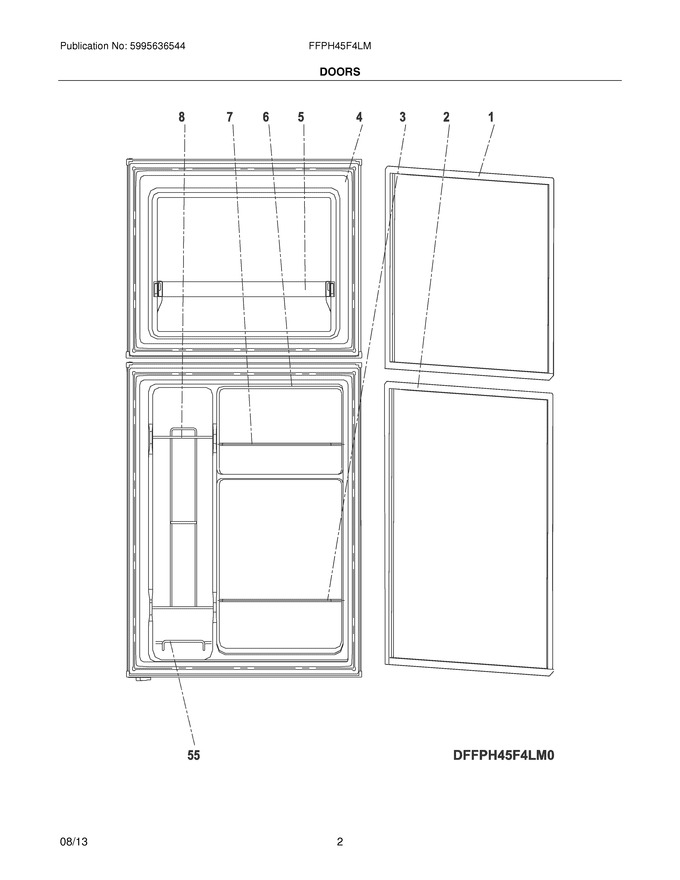

03 - Doors
05 - Cabinet/controls
07 - System
08 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304492633 | Seal,door ,freezer |
|
- | |||||
| 2 | 5304492634 | Seal,door ,refrigerator |
|
- | |||||
| 3 | 5304492635 | Guard Rail,small ,door |
|
- | |||||
| 4 | 5304492636 | Door Assembly,freezer |
|
- | |||||
| 5 | 5304492637 | Tray,door ,freezer |
|
- | |||||
| 6 | 5304492638 | Door Assembly,refrigerator |
|
- | |||||
| 7 | 5304492640 | Guard Rail,large ,door |
|
- | |||||
| 8 | 5304492641 | Guard Rail,can Rack ,upper |
|
- | |||||
| 55 | 5304492642 | Guard Rail,can Rack ,lower |
|
- |
