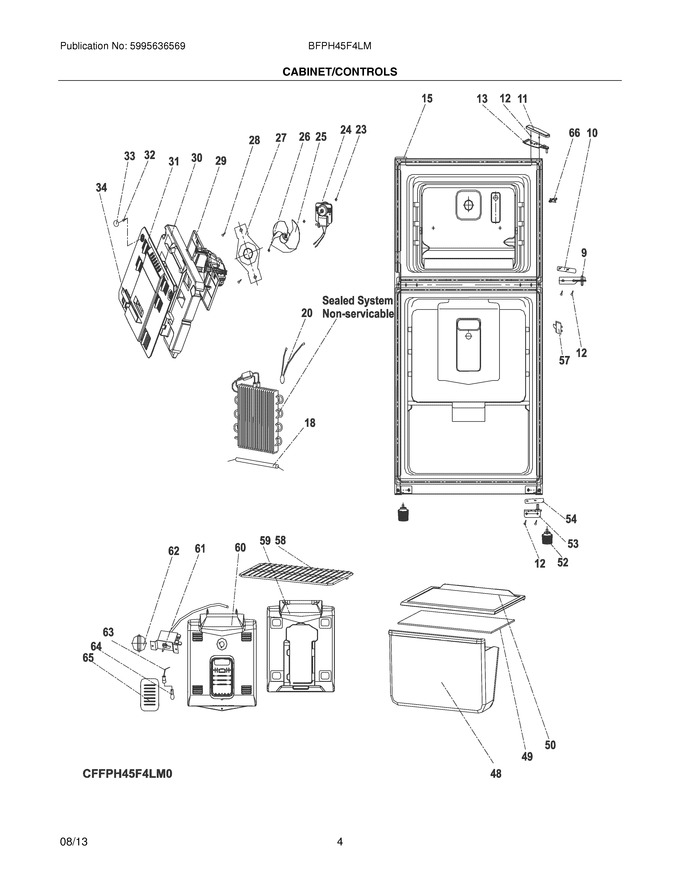

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	5304492643		Hinge Assembly,middle		Appelez-nous	-
10	5304492644		Gasket Plate,middle Hinge		Appelez-nous	-
11	5304492645		Cover,upper Hinge		Appelez-nous	-
12	5304480019		Screw,hinge ,(6)				$ 7.83
13	5304492646		Hinge Assembly,upper		Appelez-nous	-
15	5304492647		Cover,holes ,upper Hinge		Appelez-nous	-
23	5304492650		Washer,rubber ,(2)		Appelez-nous	-
25	5304490957		Fan Blade				$ 25.02
26	5304492651		Ring,fan Blade		Appelez-nous	-
27	5304491046		Bracket,fan Mount		Appelez-nous	-
28	5304479817		Screw,tapping ,(2)		Appelez-nous	-
29	5304492652		Sheet,air Channel		Appelez-nous	-
30	5304492653		Foam,air Channel		Appelez-nous	-
31	5304492654		Cover,air Duct ,freezer		Appelez-nous	-
32	5304491047		Screw,(2)				$ 12.02
33	5304490962		Cover,screw ,(2)				$ 8.87
34	5304492655		Block,air Door		Appelez-nous	-
48	5304492656		Bin,crisper		Appelez-nous	-
49	5304492657		Cover,crisper Bin		Appelez-nous	-
50	5304492658		Shelf,glass		Appelez-nous	-
52	5304492659		Foot,adjustable ,cabinet ,(2)		Appelez-nous	-
53	5304492660		Hinge Assembly,rh ,lower		Appelez-nous	-
54	5304492661		Gasket Plate,lower Hinge		Appelez-nous	-
58	5304492662		Shelf,wire ,freezer		Appelez-nous	-
59	5304492663		Foam,air Channel		Appelez-nous	-
60	5304492664		Cover,air Duct		Appelez-nous	-
62	5304492666		Knob,control		Appelez-nous	-
65	5304492669		Cover,light		Appelez-nous	-
66	5304492670		Base,screw ,(2)		Appelez-nous	-
F18	5304492648		Heater,defrost		Appelez-nous	-
F20	5304492649		Thermostat,defrost				$ 146.19
F24	5304491053		Motor,fan				$ 301.77
F57	5304498687		Switch,lamp/light   (Replaces: 5304470327)				$ 51.03
F61	5304492665		Thermostat,temperature		Appelez-nous	-
F63	5304492667		Socket,lamp Base		Appelez-nous	-
F64	5304492668		Bulb,light				$ 19.74
