01 - Cover Sheet

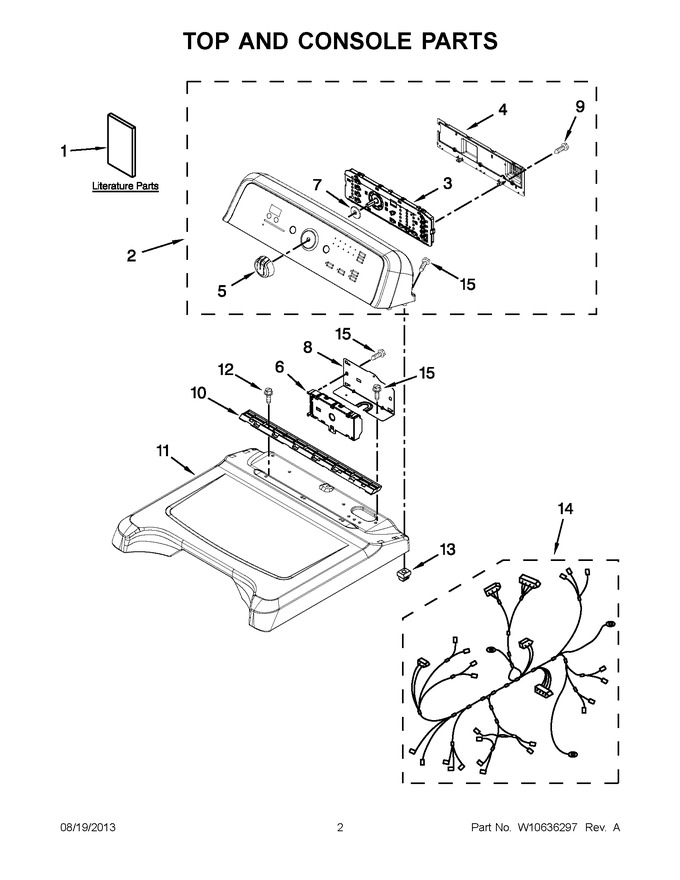

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - 8557891 Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10393006 | Sheet, Tech |
|
- | |||||
| 1 | W10526992 | Guide, Use & Care |
|
- | |||||
| 1 | W10492250 | Installation, Instructions |
|
- | |||||
| 2 | WPW10496922 | Console Assembly (cosmetallic) (Replaces: W10496922) |
|
$ 571.46 | |||||
| 3 | WPW10388669 | Assembly, User Interface (Replaces: W10388669) |
|
$ 233.22 | |||||
| 4 | W10051124 | Cover, Ui Rear |
|
$ 263.67 | |||||
| 5 | WPW10338554 | Knob, Control (Replaces: W10338554) |
|
$ 64.58 | |||||
| 6 | WPW10432257 | Control Electronic (Replaces: W10432257) |
|
Immediately | $ 333.62 | ||||
| 7 | 8572039 | Seal, User Interface |
|
- | |||||
| 8 | W10613375 | Bracket, Machine Controller |
|
- | |||||
| 9 | WP4449745 | Screw (Replaces: W10003770) |
|
$ 7.98 | |||||
| 10 | 8558863 | Bracket, Console |
|
$ 33.78 | |||||
| 11 | W10338836 | Top (cosmetallic) |
|
$ 142.15 | |||||
| 12 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 13 | W10112673 | Clip, Console |
|
$ 9.75 | |||||
| 14 | W10393461 | Harness, Wiring Main |
|
$ 247.97 | |||||
| 15 | W10131402 | Screw |
|
- |
