SELECT A DIAGRAM

01 - Cover Sheet

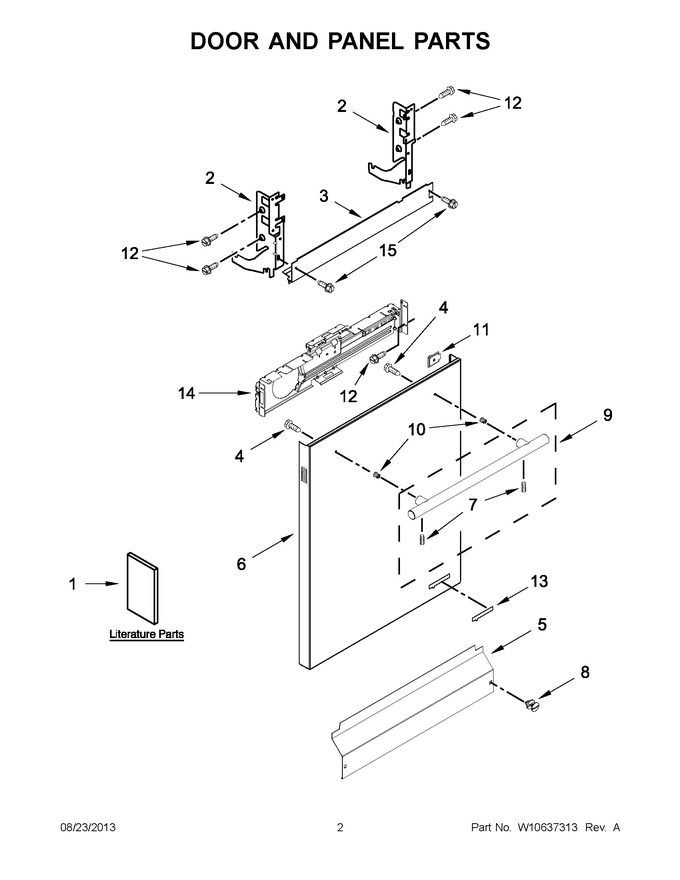

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10455258		Tech Sheet, French		Appelez-nous	-
1	W10501738		Installation Instructions		Appelez-nous	-
1	W10490712		Energy Guide		Appelez-nous	-
1	W10596235		Use & Care Guide, English/french		Appelez-nous	-
1	W10455257		Tech Sheet, English		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
3	W10850371		Barrier, Vapor Assembly   (Replaces: W10321449)			Immediately	$ 32.88
4	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
5	W11763736		Access Panel (black)   (Replaces: W10441006)			Immediately	$ 42.25
6	W10409495		Panel, Front (includes Items 4, 10, And 11) (stainless)				$ 202.84
7	WP8534008		Screw, Set   (Replaces: 8534008)				$ 9.37
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
9	W10440263		Handle Assembly (stainless)		Appelez-nous	-
10	WP8564951		Stud, Mounting   (Replaces: 8564951)			Immediately	$ 19.33
11	W10319007		Light, Pipe				$ 72.00
12	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
13	WPW10214168		Nameplate (stainless)   (Replaces: W10214168)				$ 85.95
14	W11116870		Bracket, Control Panel   (Replaces: W10194911)				$ 89.95
15	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40

    View Diagram in Separate Window       Print Part List
