SELECT A DIAGRAM

01 - Cover Sheet

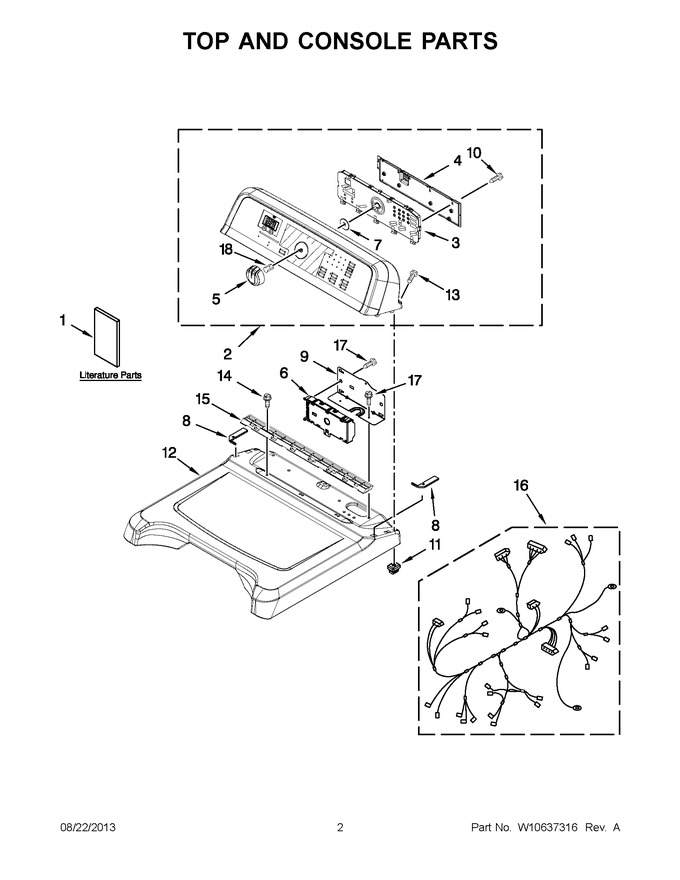

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10393006		Sheet, Tech		Appelez-nous	-
1	W10392460		Guide, Energy		Appelez-nous	-
1	W10562336		Instructions, Installation		Appelez-nous	-
1	W10562334		Owners Manual		Appelez-nous	-
2	W10562320		Panel, Console (white)				$ 315.92
2	W10562321		Panel, Console (cosmetallic)			Immediately	$ 558.36
3	WPW10388669		Assembly, User Interface   (Replaces: W10388669)				$ 233.22
4	W10051124		Cover, Ui Rear				$ 263.67
5	WPW10571098		Assembly, Control Knob (grey)   (Replaces: W10571098)				$ 61.93
6	WPW10536008		Control, Electronic   (Replaces: W10536008)			Immediately	$ 261.04
7	8572039		Seal, User Interface		Appelez-nous	-
8	W10219694		Seal, Top (right)		Appelez-nous	-
8	W10219695		Seal, Top (left)		Appelez-nous	-
9	W10613375		Bracket, Machine Controller		Appelez-nous	-
10	WP4449745		Screw   (Replaces: W10003770)				$ 7.98
11	W10112673		Clip, Console				$ 9.75
12	W10338836		Top (includes Item 8) (cosmetallic)				$ 142.15
12	W10223157		Top (includes Item 8) (white)				$ 159.40
13	W10131402		Screw		Appelez-nous	-
14	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
15	8558863		Bracket, Console				$ 33.78
16	W10319801		Harness, Electric				$ 150.28
17	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
18	W10153920		Clip, Spring		Appelez-nous	-
