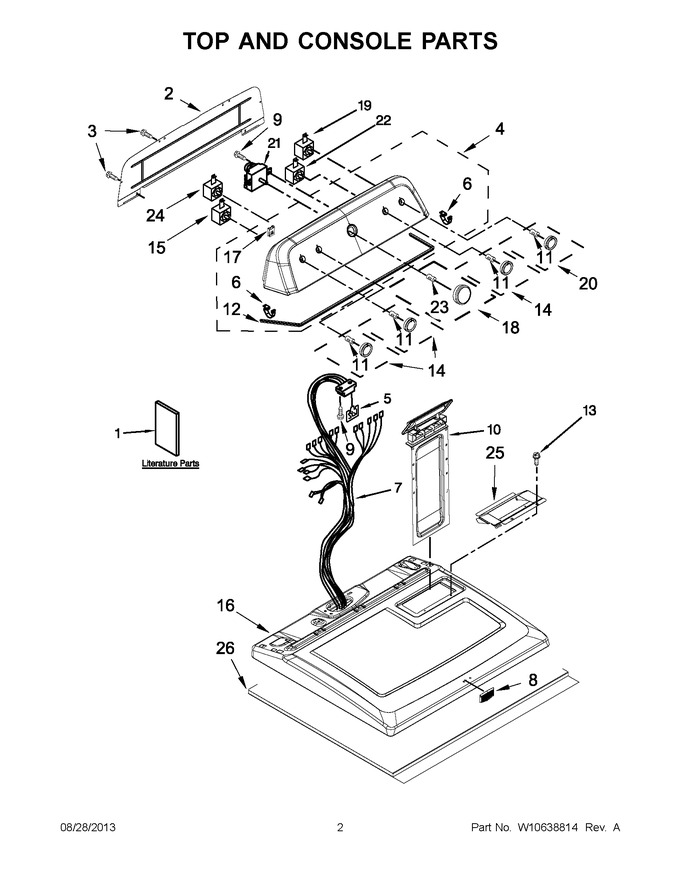

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10594781		Use And Care Guide		Appelez-nous	-
1	W10562360		Installation Instructions		Appelez-nous	-
2	WPW10416486		Panel, Rear Console   (Replaces: W10416486)				$ 132.39
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
4	W10557259		Assembly, Console (white)				$ 238.84
5	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 329.93
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
7	W10577884		Harness, Main		Appelez-nous	-
8	W10492808		Badge				$ 59.82
9	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
10	W11778254		Assembly, Lint Screen   (Replaces: W10508973)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	W10588162		Seal, Console		Appelez-nous	-
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 18.83
15	W11501315		Switch, Rotary (temperature)   (Replaces: W10562712)		Appelez-nous	-
16	W10513432		Top (white)				$ 232.21
17	W11213336		Nut, ``u``   (Replaces: W10298336)				$ 8.13
18	W11837899		Assembly, Timer Knob (grey)   (Replaces: W10558463)			Immediately	$ 18.83
19	WPW10563095		Switch, Rotary (push To Start)   (Replaces: W10563095)			Immediately	$ 89.50
20	WPW10565871		Assembly, Push To Start Knob (grey)   (Replaces: W10565871)			Immediately	$ 55.09
21	WPW10519558		Assembly, Timer   (Replaces: W10519558)				$ 375.99
22	W10563094		Switch, Rotary (wrinkle Control)				$ 36.35
23	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
24	WPW10627711		Switch, Rotary (signal)   (Replaces: W10627711)				$ 97.03
25	W10662472		Collar, Lint Chute   (Replaces: W10508979)				$ 77.87
26	W10123956		Panel, Dampening		Appelez-nous	-
