Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2212302 Ice Bin Appelez-nous -
2 W10445768 Ice Container (complete) Appelez-nous -
3 WPW10254073 Washer   (Replaces: W10254073) In-Stock Immediately $ 10.61

4 WP2198628 Seal   (Replaces: 2198628) In-Stock Immediately $ 12.57

5 WP8281163 Screw (stainless)   (Replaces: 8281163) In-Stock Immediately $ 10.70

6 W10445779 Plate, Mounting Appelez-nous -
7 W10822606 Motor, Dispenser   (Replaces: W10215646) In-Stock Immediately $ 182.55

8 W10445798 Drive Shaft Special Order $ 25.94


    View Diagram in Separate Window     Print Icon   Print Part List

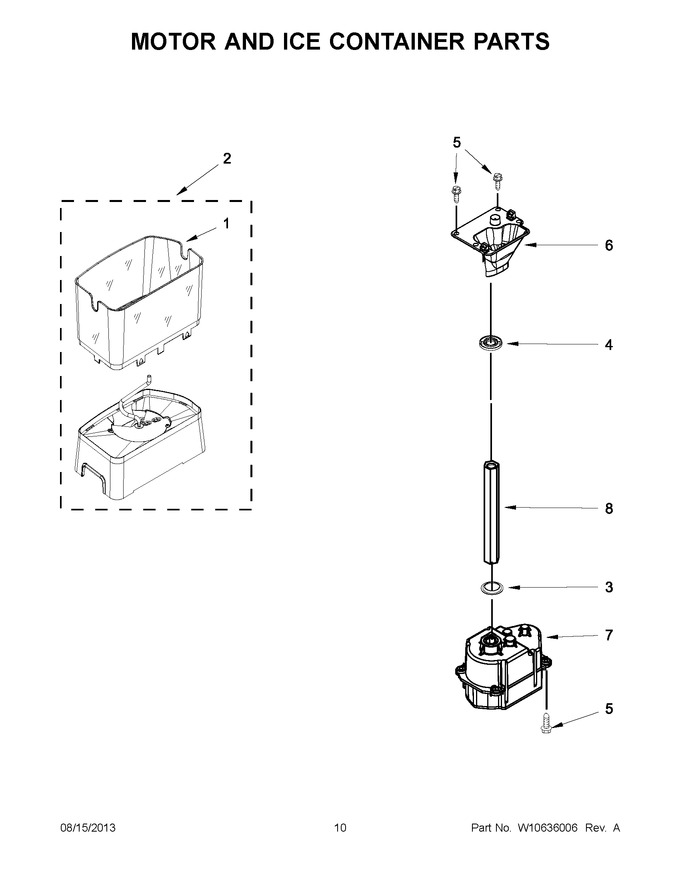

Diagram for KSF22C4CYY00
