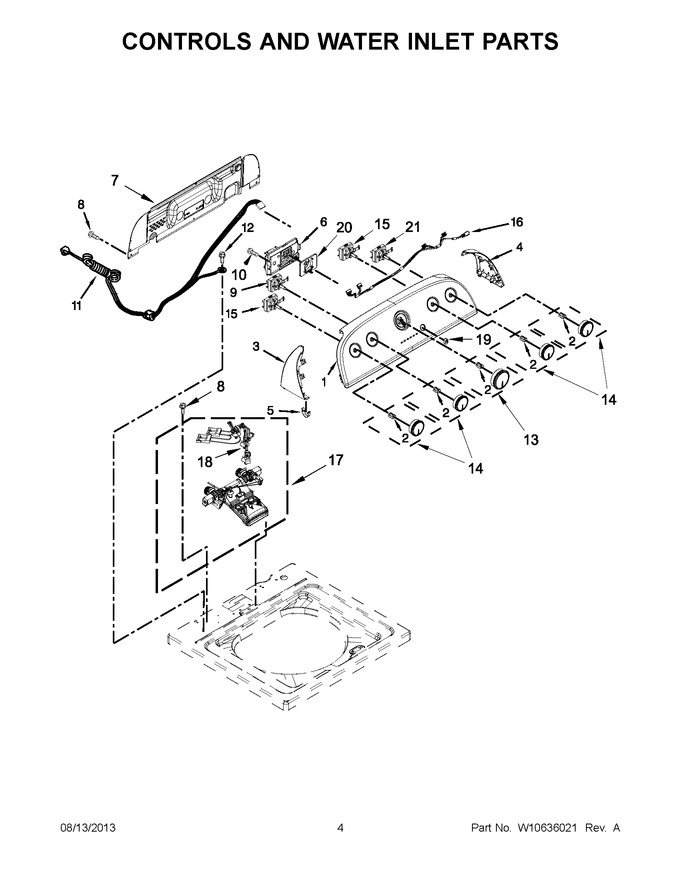

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10468412 | Panel, Console (Replaces: W10468412) |
|
$ 338.61 | |||||
| 2 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 3 | WPW10520782 | End Cap (left) (white) (Replaces: W10520782) |
|
$ 58.22 | |||||
| 4 | WPW10520780 | End Cap (right) (white) (Replaces: W10520780) |
|
$ 57.91 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 15.66 | ||||
| 6 | W10582042 | Control Unit Assembly, Machine And Motor |
|
Immediately | $ 268.45 | ||||
| 7 | W10552335 | Panel, Console Rear Cover |
|
$ 308.85 | |||||
| 8 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 9 | WPW10285518 | Switch, Rotary Encoder (5 Position) (Replaces: W10285518) |
|
Immediately | $ 142.31 | ||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 11 | WPW10525194 | Cord, Power (Replaces: W10525194) |
|
$ 147.07 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 13 | WPW10576635 | Knob, Timer (white/metallic) (Replaces: W10576635) |
|
$ 47.45 | |||||
| 14 | WPW10576637 | Assembly, Control Knob (white/metallic) (Replaces: W10576637) |
|
$ 49.10 | |||||
| 15 | WPW10285512 | Temperature Control (Replaces: W10285512) |
|
Immediately | $ 171.42 | ||||
| 16 | W10579238 | Harness, Upper |
|
$ 24.62 | |||||
| 17 | WPW10683603 | Inlet Assembly, Water (Replaces: W10423125) |
|
Immediately | $ 84.60 | ||||
| 18 | W10876654 | Harness, Valve (Replaces: W10423127) |
|
$ 175.43 | |||||
| 19 | W11084340 | Grommet, Push To Start (Replaces: W10598040) |
|
$ 66.47 | |||||
| 20 | WPW10596298 | Button, Push To Start (Replaces: W10596298) |
|
$ 65.68 | |||||
| 21 | WPW10285511 | Switch, Rotary Encoder (2 Position) (Replaces: W10285511) |
|
Immediately | $ 163.89 |
