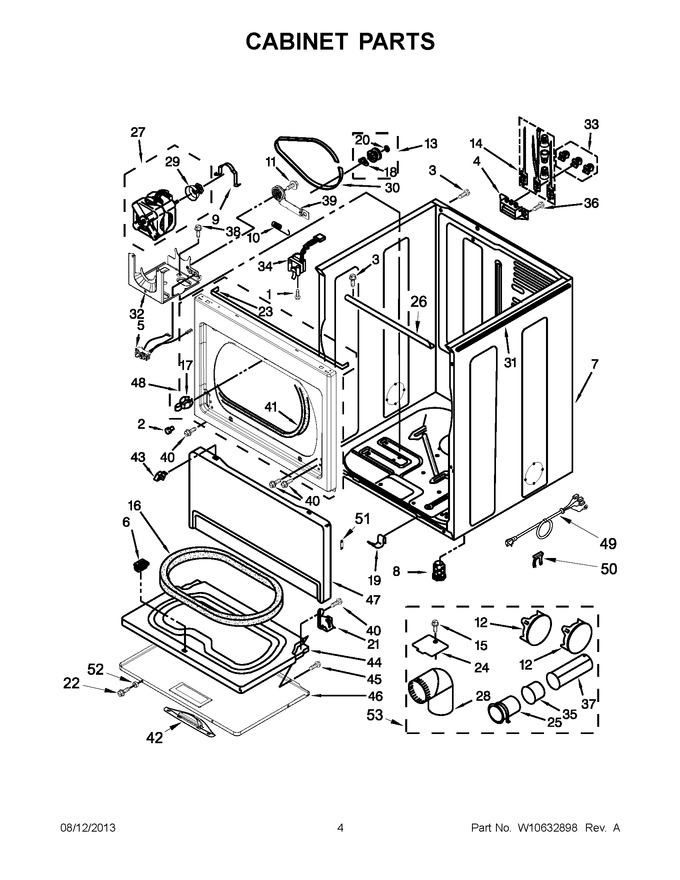

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3395530		Screw   (Replaces: 697773)				$ 8.57
2	693152		Bumper				$ 11.51
3	W10850756		Screw   (Replaces: 8533974)				$ 8.20
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
5	W10847984		Switch, Broken Belt   (Replaces: W10411936)			Immediately	$ 26.90
6	279570		Assembly, Door Catch   (Replaces: 3392538)			Immediately	$ 8.89
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 440.17
8	W11025920		Foot, Dryer   (Replaces: W10561321)			Immediately	$ 24.69
9	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 26.96
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent (white)   (Replaces: 49252)				$ 75.58
13	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
14	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
15	WPW10139210		Screw   (Replaces: 3390646)				$ 8.03
16	WP3390735		Seal, Door   (Replaces: 3390735)				$ 137.13
17	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
18	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.80
19	WPW10291934		Clip   (Replaces: W10291934)				$ 8.14
20	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.55
21	WPW10279703		Hinge, Spring Assembly (silver)   (Replaces: W10279703)				$ 75.83
22	WPW10273971		Screw   (Replaces: W10192860)			Immediately	$ 7.55
23	W10312811		Seal, Spill Guard				$ 67.73
24	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 9.41
25	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 95.95
26	W10236068		Bracket, Cabinet				$ 24.47
27	279787		Assembly, Motor 60 Hz.   (Replaces: W10317045)			Immediately	$ 235.65
28	WPW10416072		Elbow   (Replaces: 49026)				$ 28.16
29	W10837625		Pulley, Motor   (Replaces: W10402907)			Immediately	$ 12.77
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	W10336128		Seal, Foam				$ 15.08
32	W11481730		Bracket, Motor Mounting   (Replaces: W10242878)			Immediately	$ 94.84
33	279393		Screw Kit, Terminal (block)			Immediately	$ 55.66
34	WP3406107		Switch, Door   (Replaces: 3406107)			Immediately	$ 31.20
35	WPW10331278		Pipe, Exhaust (short)   (Replaces: 8563750)				$ 82.90
36	WP3387230		Screw   (Replaces: 3387230)			Immediately	$ 8.54
37	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 93.24
38	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
39	W10837240		Assembly, Idler (includes Item 13)   (Replaces: W10547287)			Immediately	$ 35.78
40	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
41	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
42	WPW10284182		Handle, Door (white)   (Replaces: W10284182)			Immediately	$ 94.32
43	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
44	280083		Door, Rear   (Replaces: W10323061)				$ 301.37
45	WP488627		Screw   (Replaces: 342055)				$ 8.11
46	W10322551		Door, Front (white)				$ 164.58
47	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 250.25
48	W10193554		Panel, Front (white)		Appelez-nous	-
49	W11095079		Cord, Power   (Replaces: 8579325)			Immediately	$ 138.24
50	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 7.77
51	W10191265		Plug, Hinge Hole (white)				$ 46.49
52	W10294344		Spacer, Handle				$ 11.78
53	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65
