01 - Cover Sheet

Diagram for 02 - Top And Cabinet Parts
02 - Top And Cabinet Parts

Diagram for 03 - Door Parts
03 - Door Parts

Diagram for 04 - Control Panel Parts
04 - Control Panel Parts

Diagram for 05 - Dispenser Parts
05 - Dispenser Parts

Diagram for 06 - Tub And Basket Parts
06 - Tub And Basket Parts

Diagram for 07 - Pump Parts
07 - Pump Parts

Diagram for 08 - Optional Parts (not Included)
08 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10463529 Assembly, Console (chrome Shadow) Special Order $ 179.28

2 WPW10558235 Assembly, Iml (chrome Shadow)   (Replaces: W10558235) Special Order $ 804.42

3 W10589828 Screw Special Order $ 13.76

4 W10573393 Control Unit, Central Special Order $ 339.32

5 W10391535 Assembly, Knob Special Order $ 25.18

6 WPW10486216 Harness, Ui Jumper   (Replaces: W10486216) Special Order $ 16.20

7 W10208197 Bracket, Console Special Order $ 157.09

8 WP489464 Screw   (Replaces: W10142290) In-Stock Immediately $ 7.54

9 WPW10653575 Channel, Water   (Replaces: W10317570) Special Order $ 81.85

10 W10317566 Clip, Spring Special Order $ 8.24

11 WPW10486571 Harness, Ui   (Replaces: W10486571) Special Order $ 17.52

12 W10422436 Harness, Main (upper) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

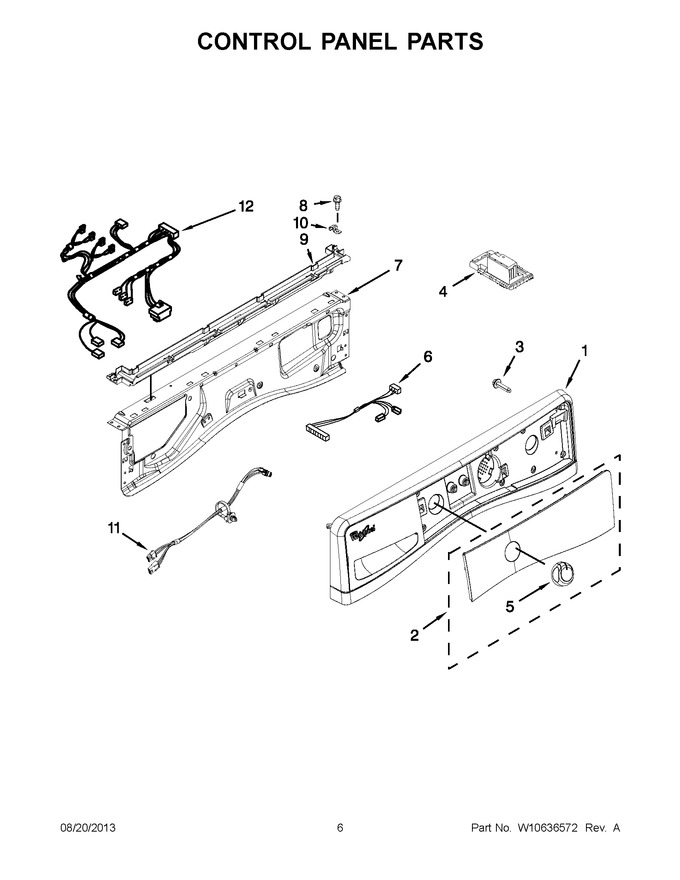

Diagram for 7MWFW86HEBC0
