SELECT A DIAGRAM
New Model Search:

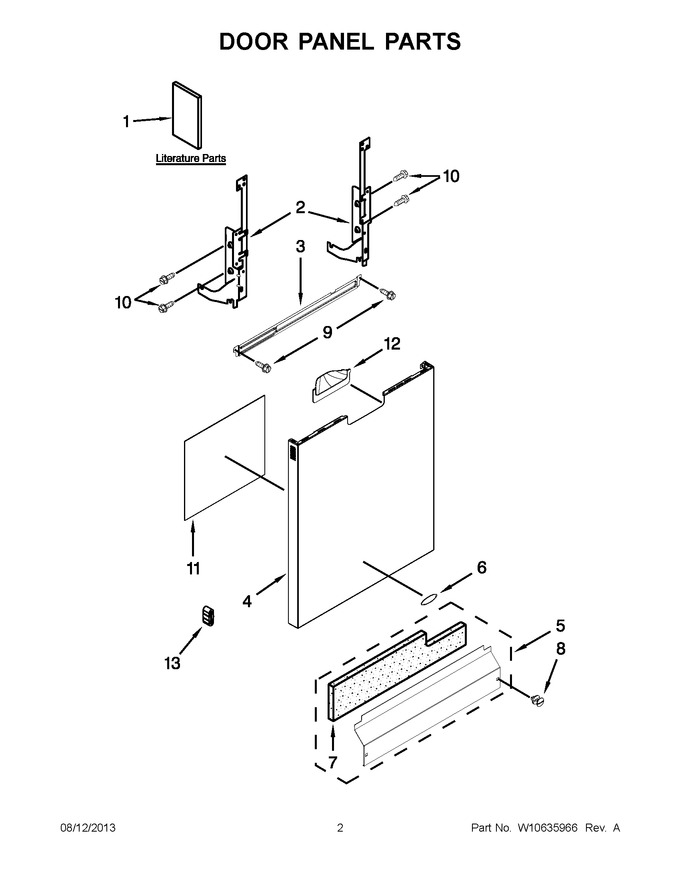

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10435042 | Installation Instructions |
|
- | |||||
| 1 | W10350360 | Use & Care Guide, Spanish |
|
- | |||||
| 1 | W10580730 | Tech Sheet |
|
- | |||||
| 2 | W11613572 | Arm, Hinge (right Hand) (Replaces: W10274921) |
|
Immediately | $ 83.93 | ||||
| 2 | W11806566 | Arm, Hinge (left Hand) (Replaces: W10274922) |
|
Immediately | $ 71.77 | ||||
| 3 | W10850371 | Arm, Hinge (stiffener, Door) (Replaces: W10195120) |
|
Immediately | $ 32.88 | ||||
| 4 | WPW10505606 | Panel, Front (includes Items 6 & 12) (stainless) (Replaces: W10505606) |
|
$ 414.87 | |||||
| 5 | W10827631 | Access Panel (black) (Replaces: W10369023) |
|
Immediately | $ 195.64 | ||||
| 6 | WPW10393264 | Nameplate (grey) (Replaces: W10393264) |
|
$ 67.74 | |||||
| 7 | W10831329 | Insulation, Toe Panel (Replaces: W10300769) |
|
Immediately | $ 43.30 | ||||
| 8 | WPW10503548 | Fastener (black) (Replaces: W10503548) |
|
Immediately | $ 30.39 | ||||
| 9 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 10 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 | ||||
| 11 | W11126003 | Insulation, Front Panel (Replaces: W10315897) |
|
Immediately | $ 65.25 | ||||
| 12 | W10485104 | Pocket Assembly (silver) |
|
- | |||||
| 13 | WP8268961 | Sleeve, Friction (Replaces: 8268961) |
|
Immediately | $ 5.93 |
