Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Housing, Dispenser (not Serviced) Appelez-nous -
2 WP8281163 Screw (stainless)   (Replaces: 8281163) In-Stock Immediately $ 10.70

3 WPW10397392 Grille, Overflow (white)   (Replaces: W10397392) Special Order $ 51.23

4 WPW10397435 Water Fitting Assembly   (Replaces: W10397435) Special Order $ 132.24

5 W10563936 Separator Assembly (white) Appelez-nous -
6 WPW10397956 Ui Assembly Control (white)   (Replaces: W10397956) Special Order $ 271.47


    View Diagram in Separate Window     Print Icon   Print Part List

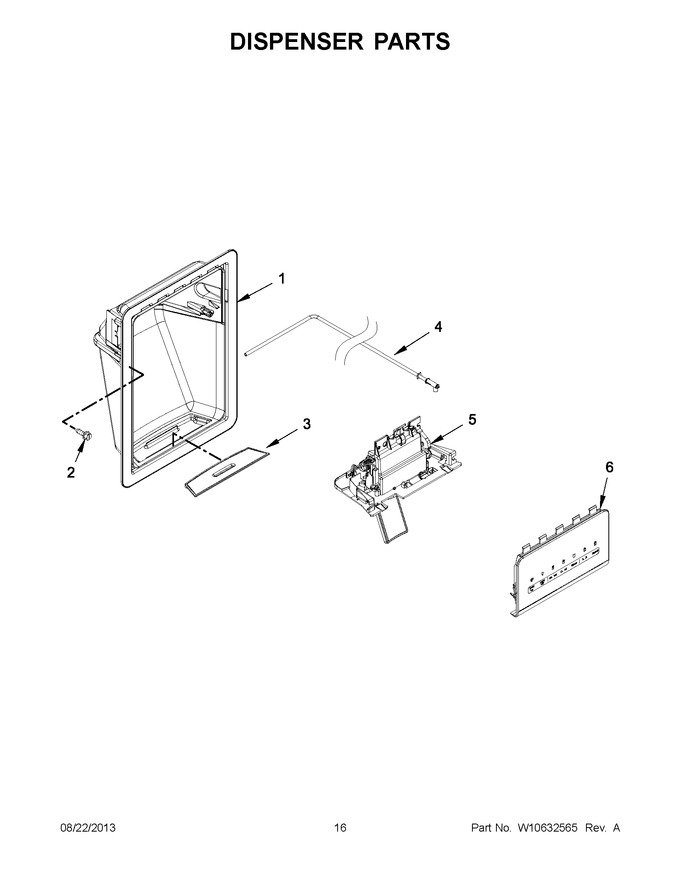

Diagram for 7WRS22FDBW00
