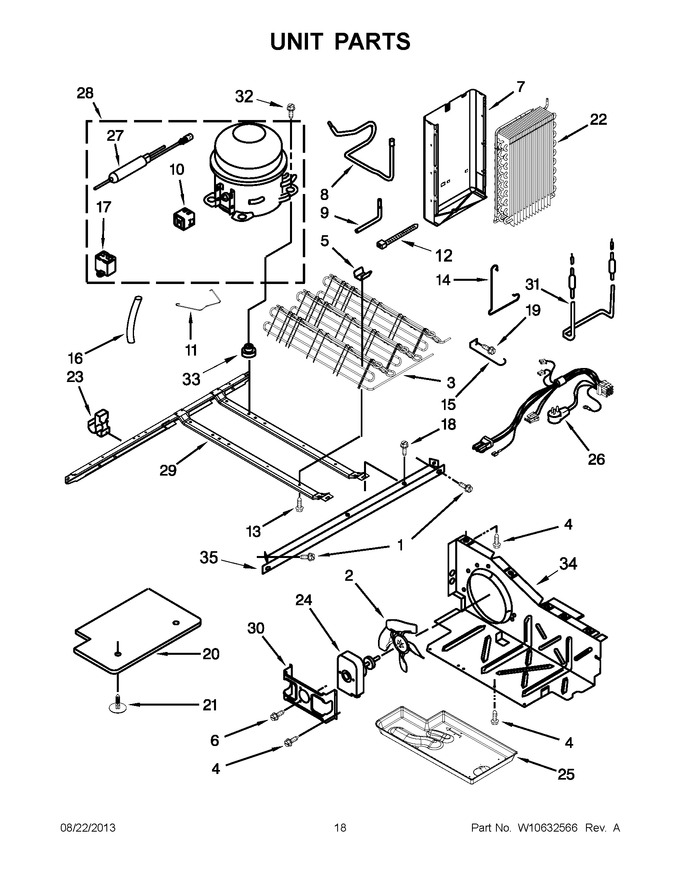

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	489340		Bolt		Appelez-nous	-
2	W10156818		Blade, Fan   (Replaces: 12825802)			Immediately	$ 56.52
3	2324712		Condenser Assembly				$ 291.11
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
5	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 17.44
6	WP8533993		Screw   (Replaces: 8533993)				$ 10.09
7	W10194475		Heat Shield And Drain Pan		Appelez-nous	-
8	2205765		Tube, Suction				$ 36.04
9	2325479		Tube, Process		Appelez-nous	-
10	W10896198		Device, Start   (Replaces: 2304884)				$ 175.69
11	2223314		Bale Strap		Appelez-nous	-
12	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 7.47
13	W11544659		Screw   (Replaces: 8281232)				$ 12.92
14	2161324		Clip, Defrost Heater		Appelez-nous	-
15	1110663		Guard, Fan		Appelez-nous	-
16	W11751592		Sleeve, Pressure Switch Hose   (Replaces: 2161302)			Immediately	$ 19.19
17	WPW10350564		Capacitor   (Replaces: W10350564)			Immediately	$ 89.54
18	WP489427		Screw   (Replaces: 489427)				$ 7.06
19	WP489478		Screw   (Replaces: 489478)				$ 7.36
20	W10466698		Unit Cover, Bottom				$ 103.75
21	489396		Clip				$ 10.13
22	WP2188823		Assembly, Evaporator   (Replaces: 2188823)			Immediately	$ 343.34
23	W10812039		Clip, Wire   (Replaces: 2326941)				$ 10.01
24	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 111.76
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 142.34
26	W10417918		Harness, Unit				$ 98.86
27	WPW10143759		Drier   (Replaces: W10177049)			Immediately	$ 27.70
28	W10139462		Compressor (also Order 876765 Tube Kit)   (Replaces: W10120457)				$ 601.50
29	W10196321		Frame, Unit Mounting		Appelez-nous	-
30	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 11.64
31	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 81.63
32	W11417341		Screw   (Replaces: W10476309)				$ 12.66
33	WPW10169124		Grommet   (Replaces: 10835903)				$ 6.80
34	W10332806		Air Baffle				$ 102.82
35	W10196313		Unit Mounting Rail		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85
NI	978030		Valve, Access Ÿ``)				$ 123.53
NI	876764		Valve, Access			Immediately	$ 86.33
NI	N/P		Refrigerant Charge (5.3 Oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (Œ``)   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access			Immediately	$ 121.04
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access		Appelez-nous	-
