01 - Cover Sheet
02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - 8576353 Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

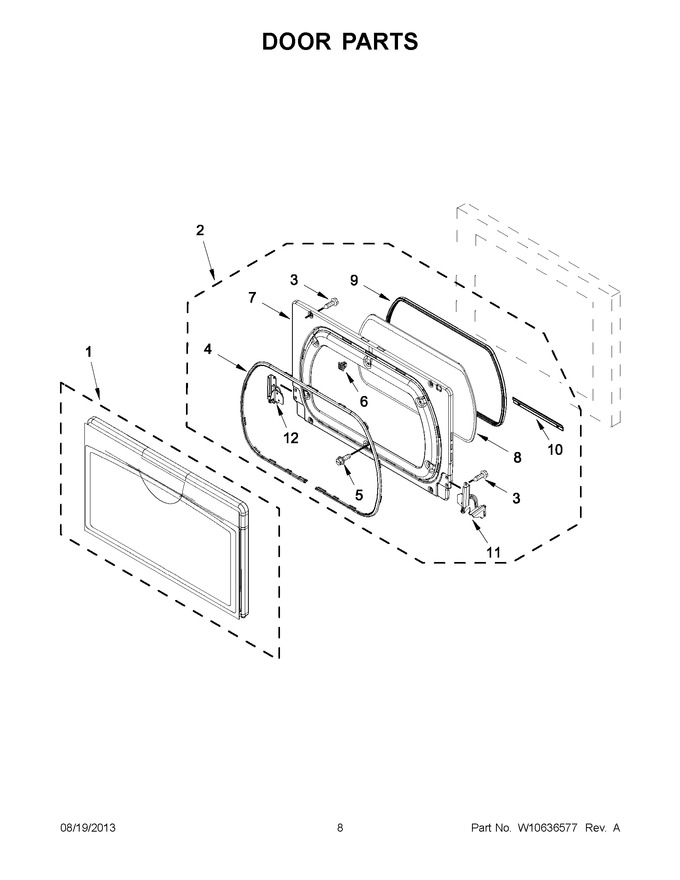

| 1 | W10284124 | Assembly, Outer Door (white) |
|
- | |||||
| 2 | W11376676 | Inner Door Assembly (Replaces: W10513691) |
|
- | |||||
| 3 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 4 | WPW10354795 | Seal, Door (Replaces: W10284123) |
|
$ 130.12 | |||||
| 5 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 8.52 | |||||
| 6 | 279570 | Assembly, Door Catch (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 7 | W10822055 | Door, Inner (Replaces: W10470569) |
|
- | |||||
| 8 | WPW10284121 | Glass, Door (Replaces: W10284121) |
|
$ 263.61 | |||||
| 9 | W11676508 | Seal, Window (Replaces: W10284122) |
|
$ 28.37 | |||||
| 10 | W10822054 | Retainer, Window (Replaces: 8519354) |
|
Immediately | $ 18.01 | ||||
| 11 | W11371722 | Assembly, Hinge (right) (Replaces: W10284141) |
|
$ 106.42 | |||||
| 12 | W11376139 | Assembly, Hinge (left) (Replaces: W10284140) |
|
$ 106.42 |
