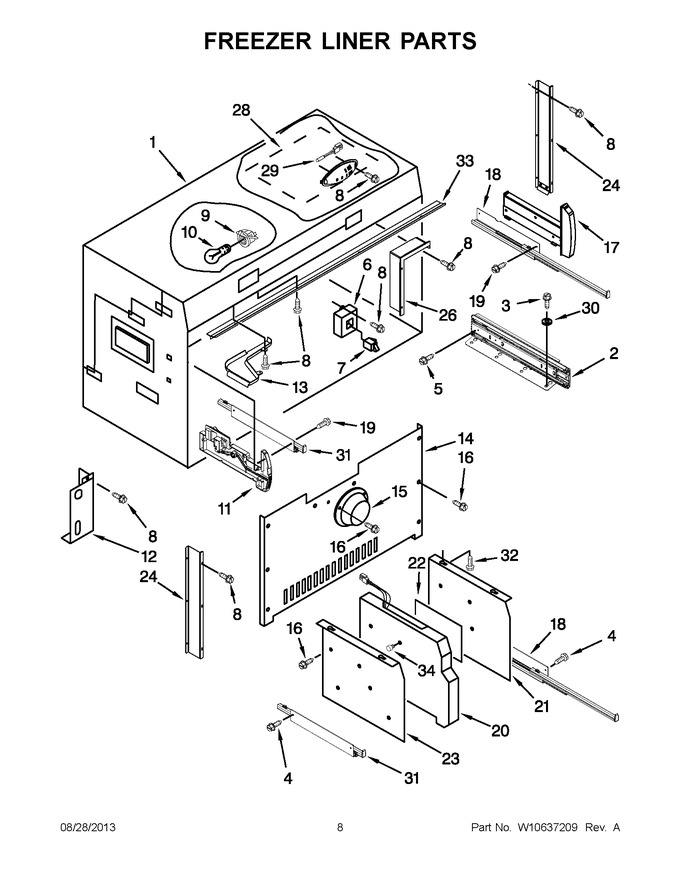

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner, Freezer (not Serviced) |
|
- | |||||
| 2 | W10423556 | Slide And Bracket Assembly (left Hand) |
|
- | |||||
| 2 | W10423558 | Slide And Bracket Assembly (right Hand) |
|
- | |||||
| 3 | W10504045 | Screw |
|
- | |||||
| 4 | WPW10001160 | Screw (Replaces: W10001160) |
|
$ 10.33 | |||||
| 5 | W10061370 | Screw |
|
$ 8.19 | |||||
| 6 | W10234211 | Cover, Switch |
|
- | |||||
| 7 | W11384469 | Switch, Light (Replaces: C3680314) |
|
Immediately | $ 39.09 | ||||
| 8 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 9 | WPW10191429 | Socket, Light (Replaces: W10191429) |
|
$ 8.80 | |||||
| 10 | WPA3073101 | Bulb, Light (Replaces: 2326255) |
|
Immediately | $ 12.72 | ||||
| 11 | W10321131 | Switch Assembly, Ice Maker |
|
$ 151.80 | |||||
| 12 | 2306187 | Cover, Wiring (icemaker) |
|
- | |||||
| 13 | 2317006 | Duct, Air Flow (icemaker) |
|
- | |||||
| 14 | 2268380 | Cover, Evaporator |
|
$ 90.03 | |||||
| 15 | 2317829 | Cover, Fan |
|
- | |||||
| 16 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 8.28 | ||||
| 17 | 2306106 | Spacer, Drawer (right Side) |
|
$ 19.65 | |||||
| 18 | 2306116 | Slide, Crisper (right Hand) |
|
$ 308.95 | |||||
| 19 | WP488163 | Screw (Replaces: 488163) |
|
$ 7.92 | |||||
| 20 | W10290822 | Divider, Freezer Bins |
|
$ 269.04 | |||||
| 21 | W10716209 | Support, Slide (right Hand) (Replaces: 2306104) |
|
$ 57.70 | |||||
| 22 | 2317927 | Shield |
|
- | |||||
| 23 | 2306105 | Support, Slide (left Hand) |
|
$ 117.96 | |||||
| 24 | 2327339 | Evap Cover Bracket (right Hand) |
|
- | |||||
| 24 | 2320512 | Evap Cover Bracket (left Hand) |
|
- | |||||
| 26 | W10121940 | Assembly, Air Return Bracket |
|
- | |||||
| 28 | WP2317844 | Assembly, Thermistor (Replaces: 2317844) |
|
$ 11.38 | |||||
| 29 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 30.85 | ||||
| 30 | W10503786 | Washer |
|
- | |||||
| 31 | 2306117 | Slide, Crisper (left Hand) |
|
$ 278.67 | |||||
| 32 | WP8533928 | Screw (stainless) (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 33 | W10135431 | Air Deflector Assembly |
|
- | |||||
| 34 | WP2198643 | Lens, Receiver (Replaces: 2198643) |
|
$ 8.59 |
