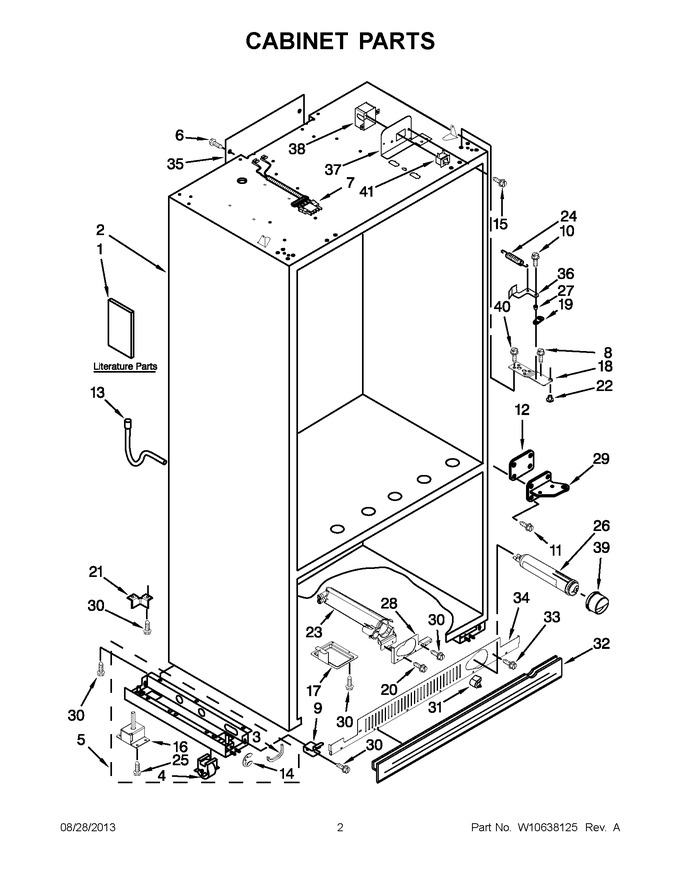

02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner Parts


05 - Freezer Liner Parts


06 - Shelf Parts


07 - Refrigerator Door Parts


08 - Freezer Door And Basket Parts


09 - Top Grille And Unit Cover


10 - Upper Unit Parts


11 - Lower Unit And Tube Parts


12 - Ice Maker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10469186		Main Control Service Sheet		Appelez-nous	-
1	W10205623		Energy Guide		Appelez-nous	-
1	W10483322		Service & Wiring Sheet		Appelez-nous	-
1	W10303987		Use & Care Guide		Appelez-nous	-
1	2317840		Modular Icemaker Service Sheet		Appelez-nous	-
1	W10555564		Installation Instructions		Appelez-nous	-
2	N/P		Cabinet (not Serviced)		Appelez-nous	-
3	2307584		Grommet, Crossover Tube				$ 23.40
4	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 45.34
5	W10860448		Support Base Assembly (right Hand)   (Replaces: W10138423)			Immediately	$ 383.00
5	W10860229		Support Base Assembly (left Hand)   (Replaces: W10279275)				$ 381.83
6	WP1163283		Screw   (Replaces: 1163283)				$ 7.55
7	2187894		Wire Assembly, Light Switch		Appelez-nous	-
8	WP8281164		Screw (stainless)   (Replaces: 8281164)				$ 11.33
9	W10839844		Mounting Bracket, Grill   (Replaces: 2307640)				$ 43.26
10	W11177574		Screw   (Replaces: W10485630)				$ 14.84
11	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
12	2207470		Shim, Door Hinge			Immediately	$ 52.27
13	2314064		Tube, Drain				$ 93.88
14	2006841		Ring, Retainer				$ 92.66
15	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
16	2005032		Leveler, Adjustable			Immediately	$ 200.07
17	2318189		Tray, Filter Drip				$ 148.73
18	2252292		Hinge, Top (right Hand)				$ 88.79
19	WP2320509		Stop, Door   (Replaces: 2320509)				$ 29.95
20	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
21	2006617		Bracket, Base Support		Appelez-nous	-
22	W11500952		Bushing, Top Hinge   (Replaces: W10484913)			Immediately	$ 34.74
23	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 171.96
24	W11805224		Spring, Door Closure (green)   (Replaces: 2221242)		Appelez-nous	-
25	W11624204		Screw   (Replaces: 486194)				$ 14.72
26	EDR3RXD1B		Filter, Water   (Replaces: W10121146)			Immediately	$ 49.99
27	WP2316859		Bushing, Extension Arm   (Replaces: 2316859)			Immediately	$ 54.20
28	W11755873		Bracket, Filter   (Replaces: W10348782)				$ 80.33
29	2252299		Hinge, Bottom Refrigerator Door				$ 172.57
30	WP489464		Screw   (Replaces: W10001250)			Immediately	$ 8.38
31	WP2260503B		Button, Water Filter (black)   (Replaces: 2260503B)				$ 76.42
32	WP2209024B		Skirt-grille, Bottom (black)   (Replaces: 2209024B)				$ 169.87
33	WP489464		Screw   (Replaces: W10005050)			Immediately	$ 8.38
34	WP2325187B		Grille Bottom, Front (black)   (Replaces: 2325187B)				$ 189.15
35	W10426957		Cover-assembly, Air Duct		Appelez-nous	-
36	W11418227		Arm, Extension (right Hand)   (Replaces: 2267192)				$ 119.09
37	W10741111		Bracket, Rocker Switch (right Hand)   (Replaces: 2221097)				$ 67.37
38	2215938		Cover, Switch				$ 94.78
39	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260518B)			Immediately	$ 28.26
40	W11721628		Screw   (Replaces: 8533913)			Immediately	$ 14.78
41	W11384469		Switch, Rocker Arm (refrigerator)   (Replaces: 1118894)			Immediately	$ 39.09
